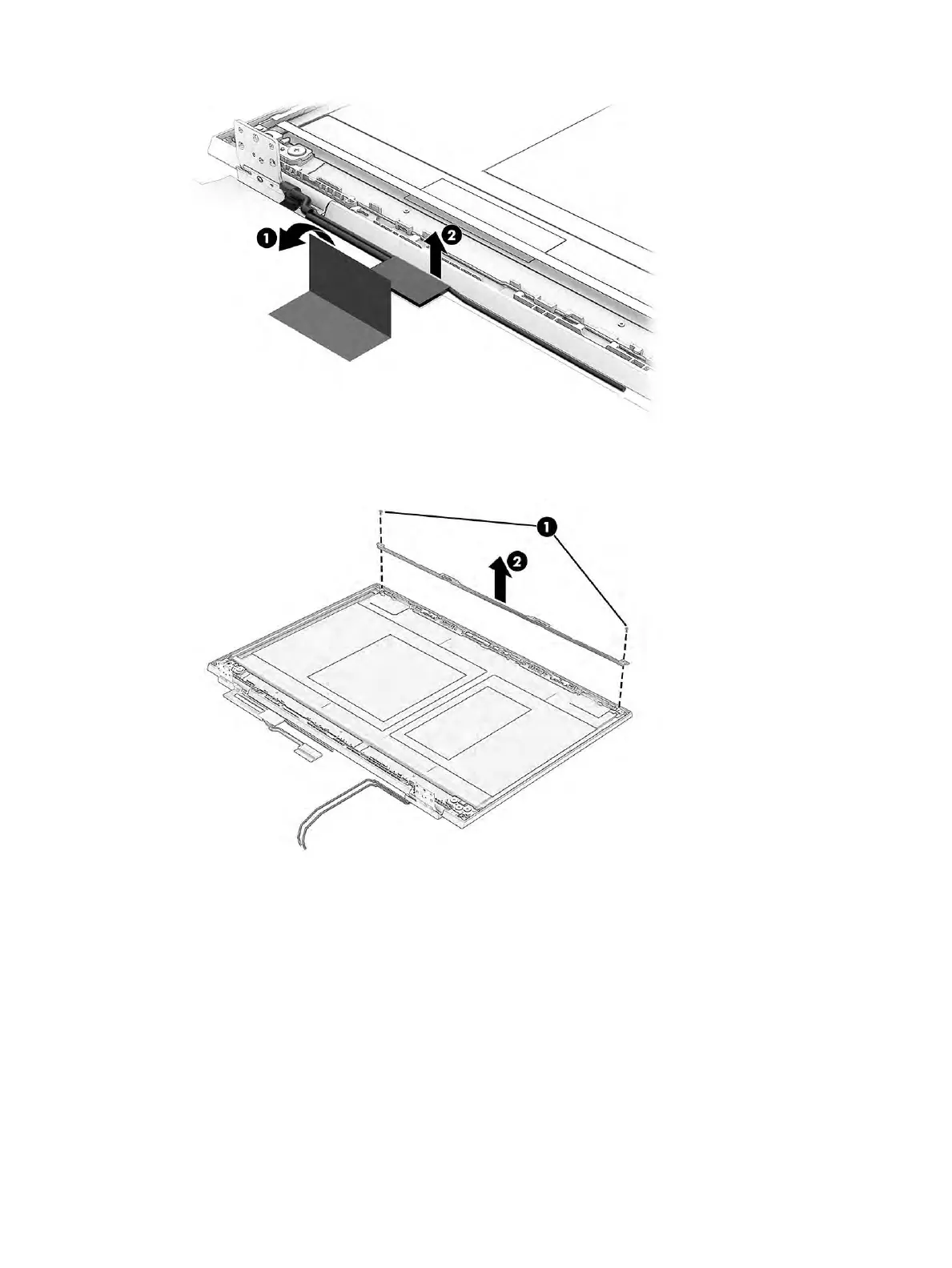

8. To remove the top bracket, remove the two Phillips M2.0 × 2.0 screws (1), and then remove the bracket
(2).
9. If you need to remove the camera module:
a. Use a tool to detach the camera module (1) from the display back cover. (The module is attached
with double-sided adhesive.)
58 Chapter 5 Removal and replacement procedures for authorized service provider parts
