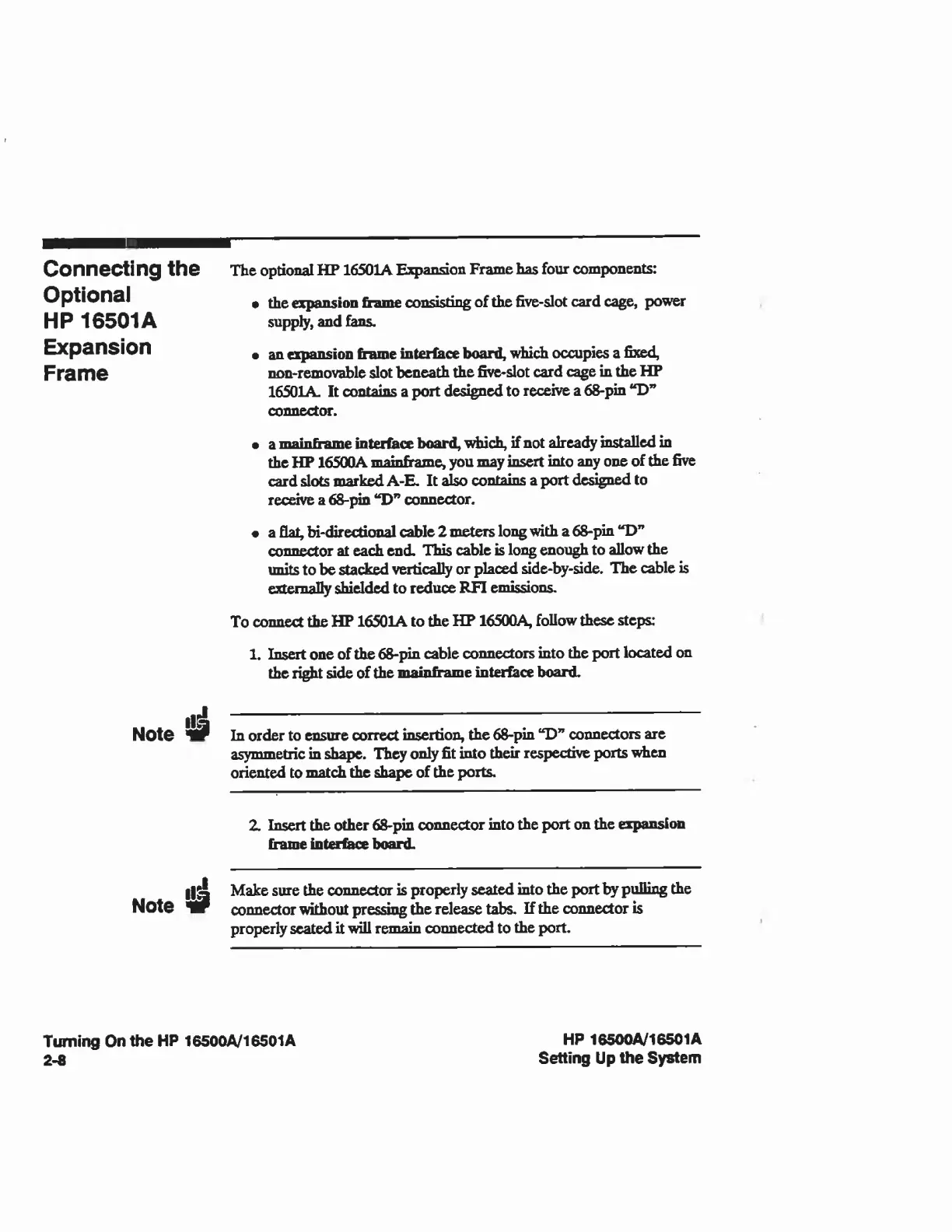

Connecting the
Optional
HP 16501A
Expansion
Frame
Note S?
Note 5i
The optional HP 16501A Expansion Frame has four components:
• the expansion frame rrmcisring of the five-slot card cage, power
supply, and fens.
• an expansion frame interlace board, which occupies a fixed,
non-removable slot beneath the five-slot card cage in the HP
16501A. It contains a port designed to receive a 68-pin “D”
connector.
• a mainframe interface board, which, if not already installed in
the HP 16S00A mainframe, you may insert into any one of the five
card dots marked A-E. It also contains a port designed to
receive a 68-pin “D” connector.
• a flat, bi-directional cable 2 meters long with a 68-pin “D”
connector at each end. This cable is long enough to allow the
unit* to be st a c ked vertically or placed side-by-side. The cable is
externally shielded to reduce RFI emissions.
To connect the HP 16501A to the HP 1650QA, follow these steps:
1. Insert one of the 68-pin cable connectors into the port located on
the right ride of the mainframe interface board.
In order to ensure correct insertion, the 68-pin “D” connectors are
asymmetric in shape. They only fit into their respective ports when
oriented to match the shape of the ports.
2. Insert the other 68-pin connector into the port on the expansion
frame interface board.
Make sure the connector is properly seated into the port by pulling the
connector without pressing the release tabs. If the connector is
properly seated it will remain connected to the port.
Turning On the HP 16500A/16501A
2-8
HP 16500A/16501A
Setting Up the System
