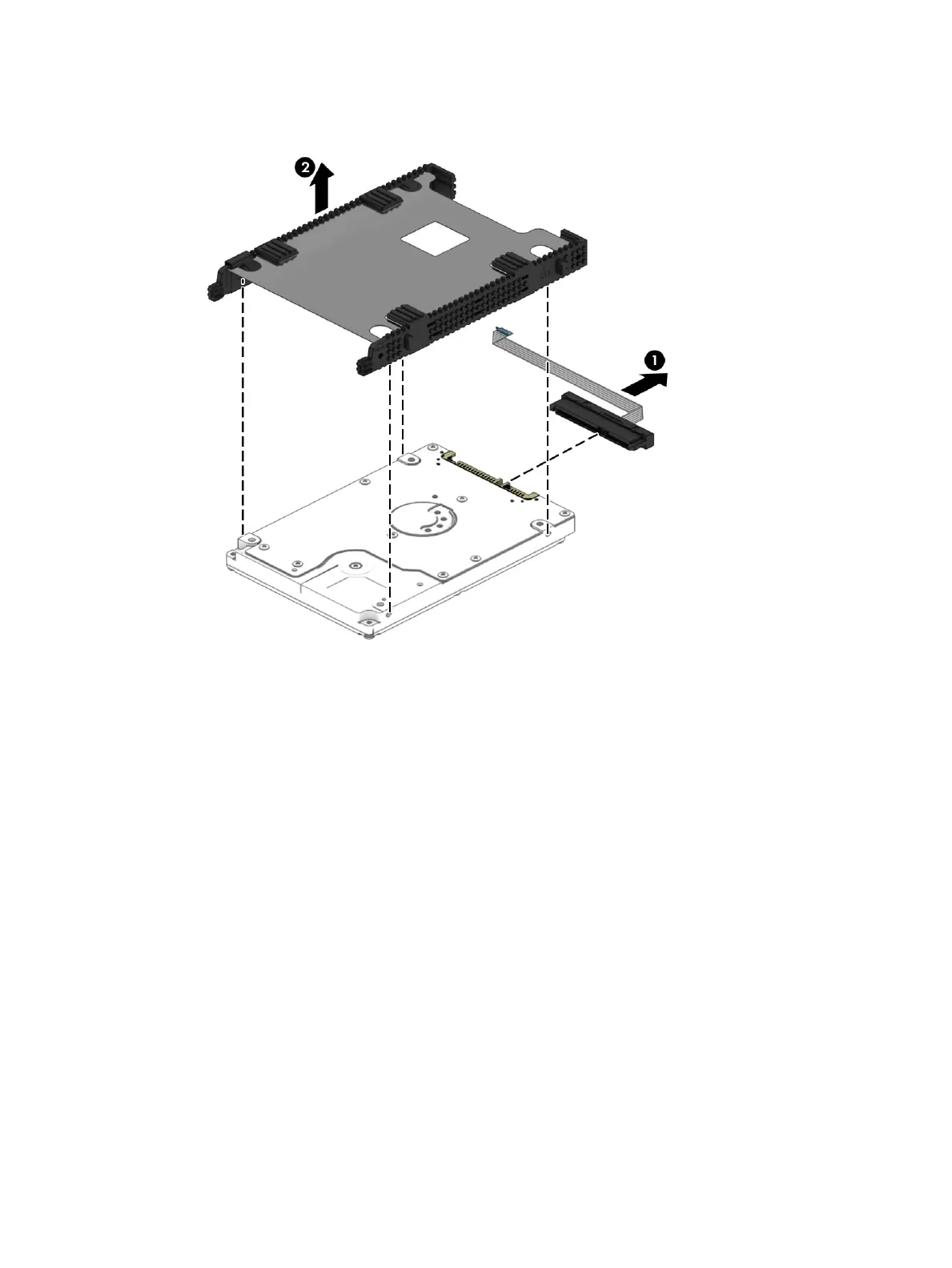

3. If it is necessary to disassemble the hard drive, pull the connector o the rear of the drive (1), and then

lift the cover o the drive (2).

Reverse this procedure to reassemble and install the hard drive.
