Solid-state drive bracket and connector board
Description Spare part number
Solid-state drive bracket L22535-001
Solid-state drive connector board L24487-001
Solid-state drive cable L22527-001
Before removing the solid-state drive bracket and connector board, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the optical drive (see Optical drive on page 32).
5. Remove the bottom cover (see Bottom cover on page 36).
6. Remove the battery (see Battery on page 38).
7. Remove the solid-state drive (see Solid-state drive on page 45).

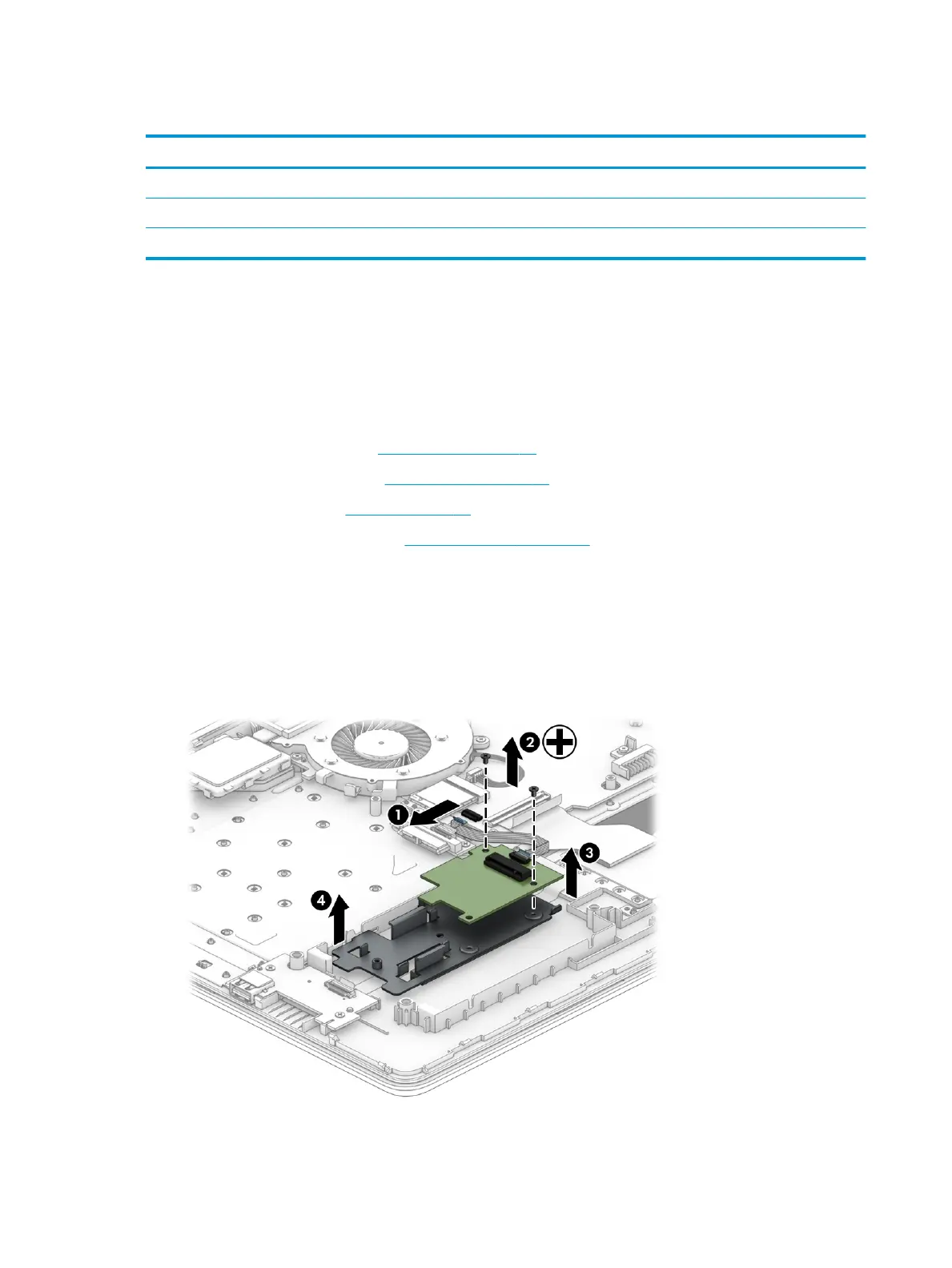

Remove the solid-state drive bracket and connector board:
1. Disconnect the cable from the system board ZIF connector (1).
2. Remove the two Phillips M2.0×3.0 screws (2) that secure the board and bracket to the computer.
3. Remove the board from the computer (3).
4. Remove the bracket from the computer (4).
Reverse this procedure to install the solid-state drive bracket and connector board.
