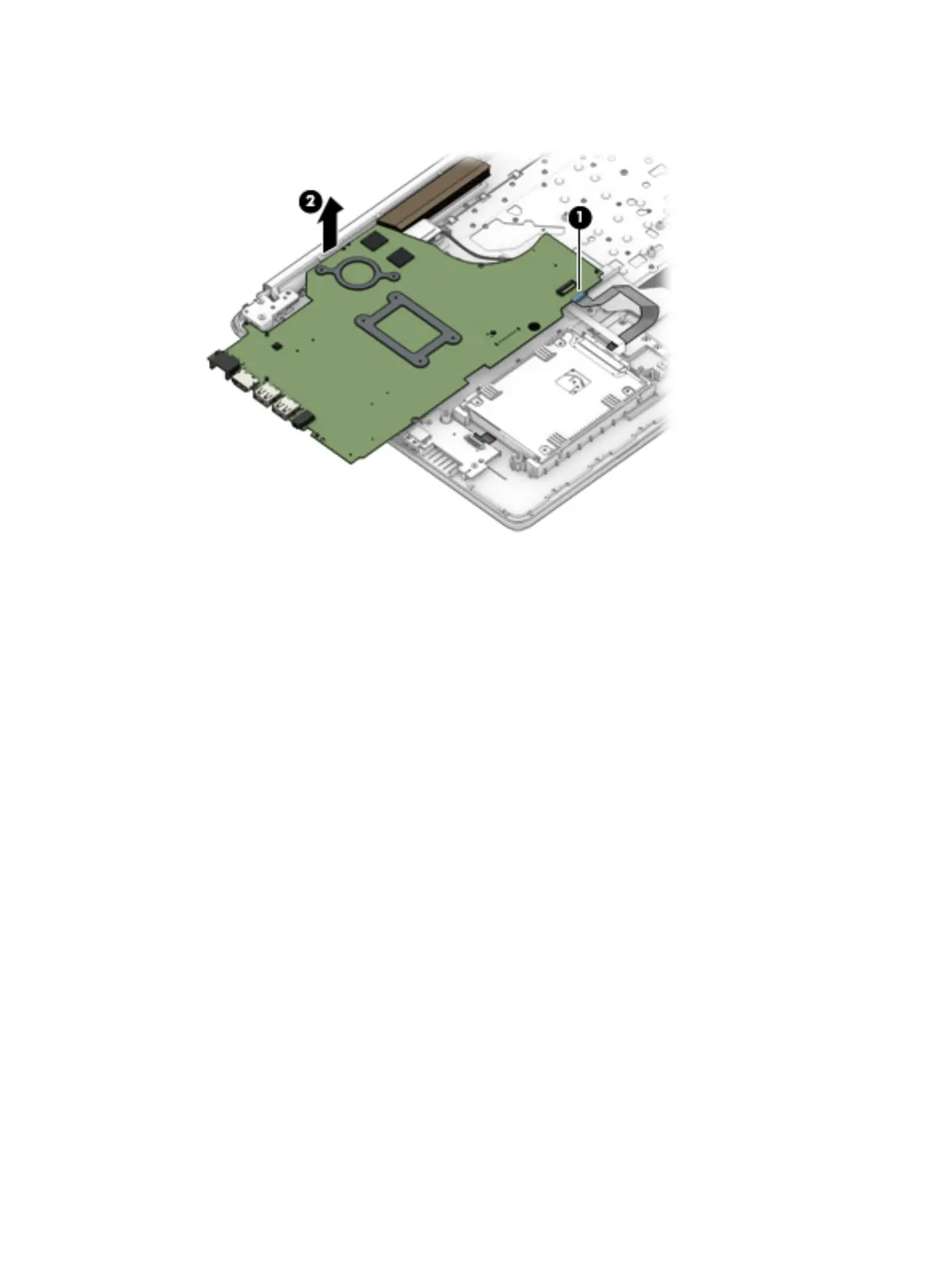

4. Disconnect the USB board cable from the ZIF connector on the system board (1), and then remove the

system board from the computer (2).

Reverse this procedure to install the system board.

Component replacement procedures 63
