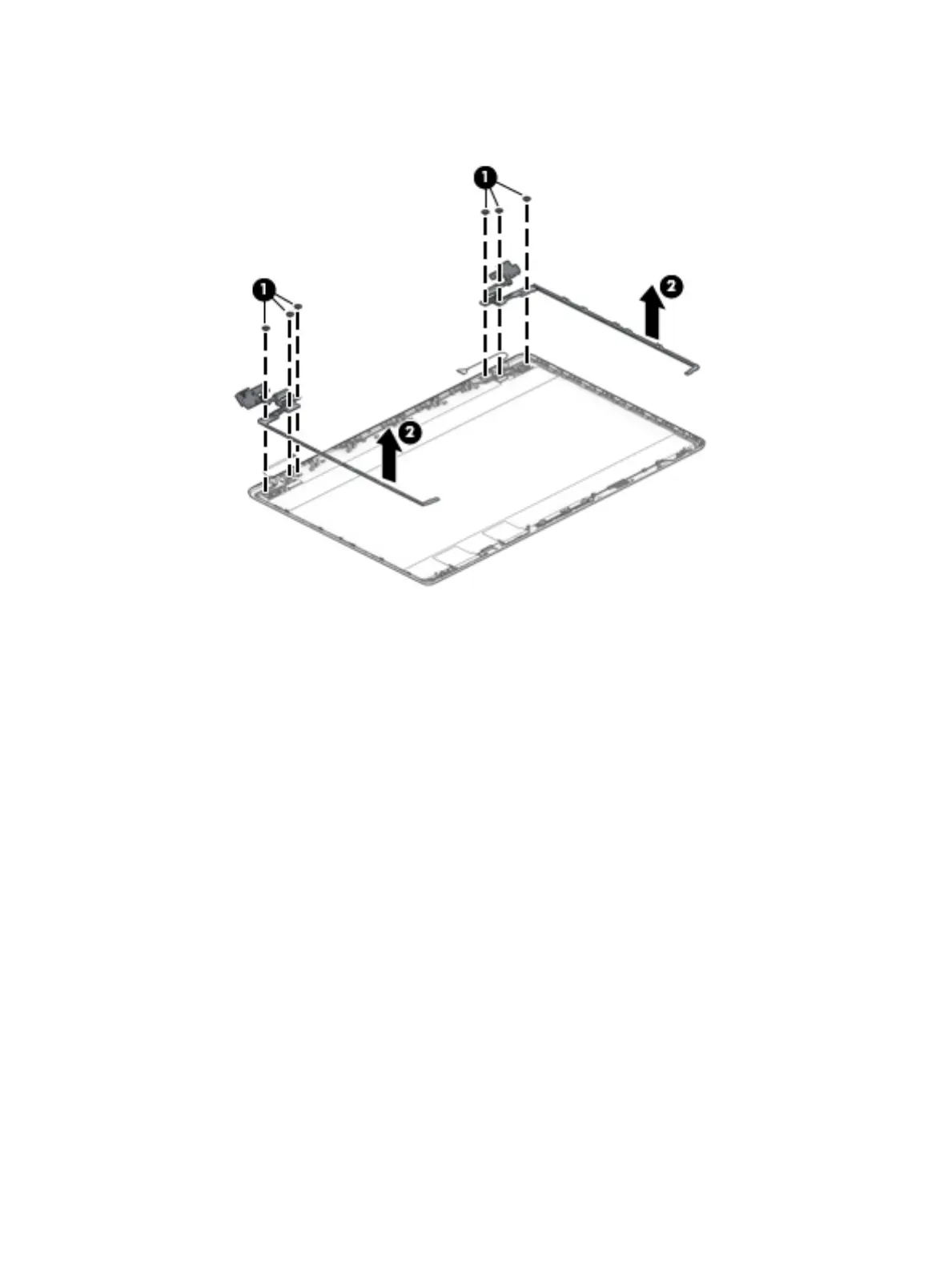

b. Remove the display hinges (2).
The display hinges are available using spare part number L22536-001.
7. If it is necessary to replace the display panel cable:
a. Release the cable from the retention clips and routing channel built into the bottom edge and side
of the display enclosure (1).
Component replacement procedures 71
