5–40 Maintenance and Service Guide
Removal and Replacement Procedures
22. Remove the two Phillips PM2.5×7.0 screws 1 that secure
each hinge to the display panel.
23. Remove the display hinges 2.
24. Remove the display hinge covers 3 from the display hinges.

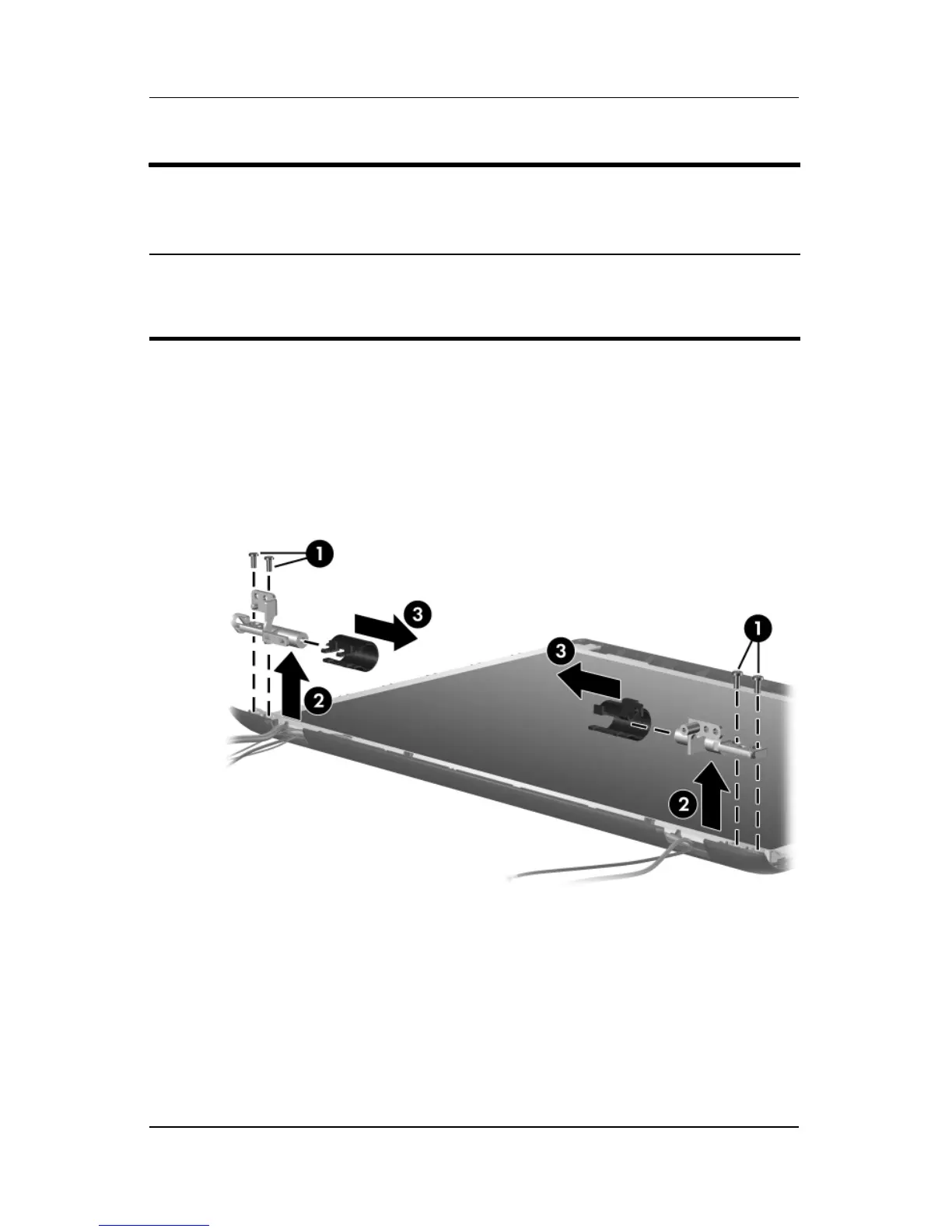

Removing the Display Hinges
Display Assembly Subcomponents
Spare Part Number Information
Display Hinge Kit (includes left and right display hinges)
For use with full-featured computer models
For use with defeatured computer models
430473-001
417102-001
