Removal and Replacement Procedures
Maintenance and Service Guide 5–55

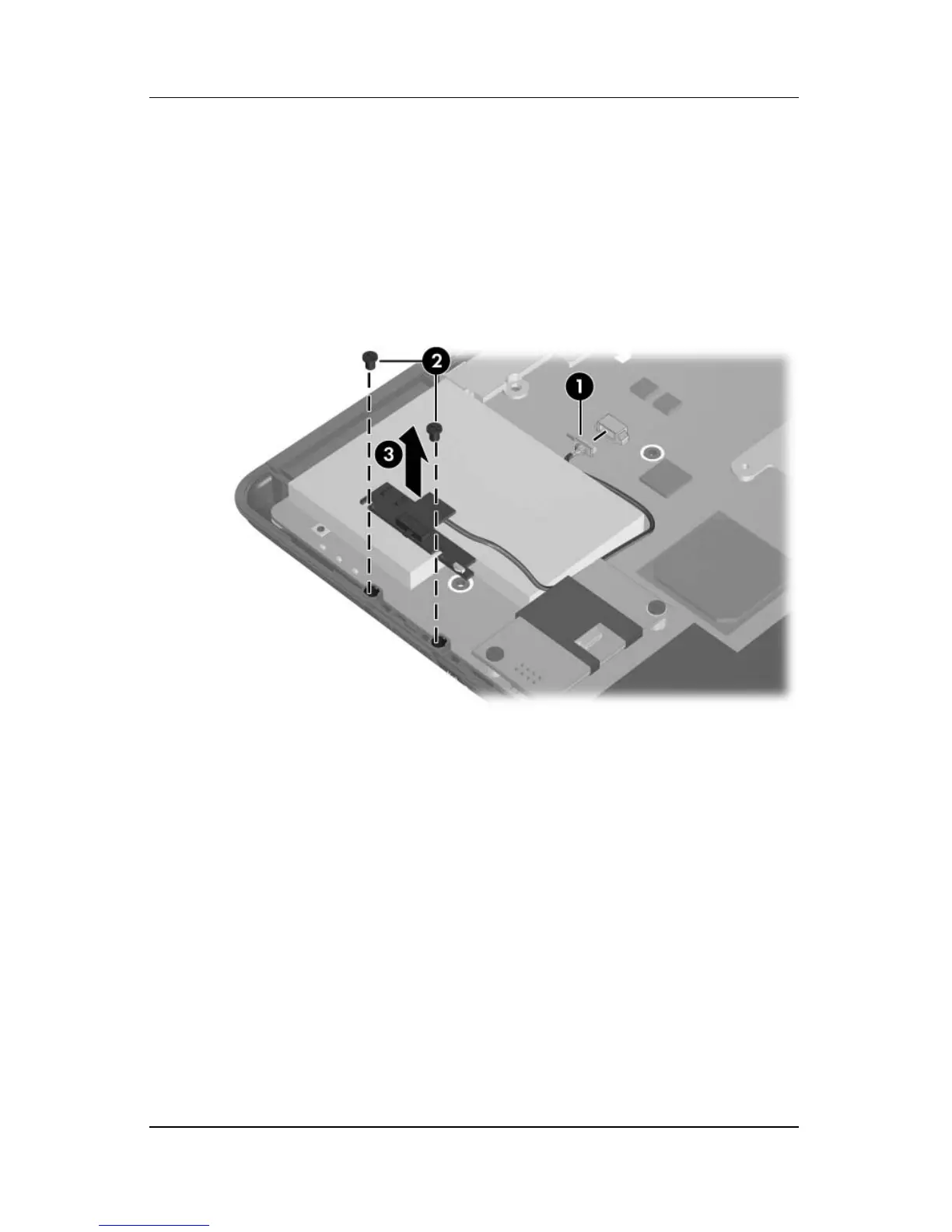

2. Disconnect the wireless switch board cable 1 from the
system board.
3. Remove the two Phillips PM2.0×3.0 screws 2 that secure the
wireless switch board to the computer.
4. Remove the wireless switch board 3.
Removing the Wireless Switch Board
Reverse the above procedure to install the wireless switch board.
