Removal and Replacement Procedures
Maintenance and Service Guide 5–81
✎
Steps 6 and 7 apply only to computer models using
AMD processors.
6. Loosen the Phillips PM2.0×9.0 screw 1 and the four Phillips
PM2.0×13.0 screws 2 that secure the fan/heat sink assembly
to the system board.
7. Remove the fan/heat sink assembly 3 from the system board.

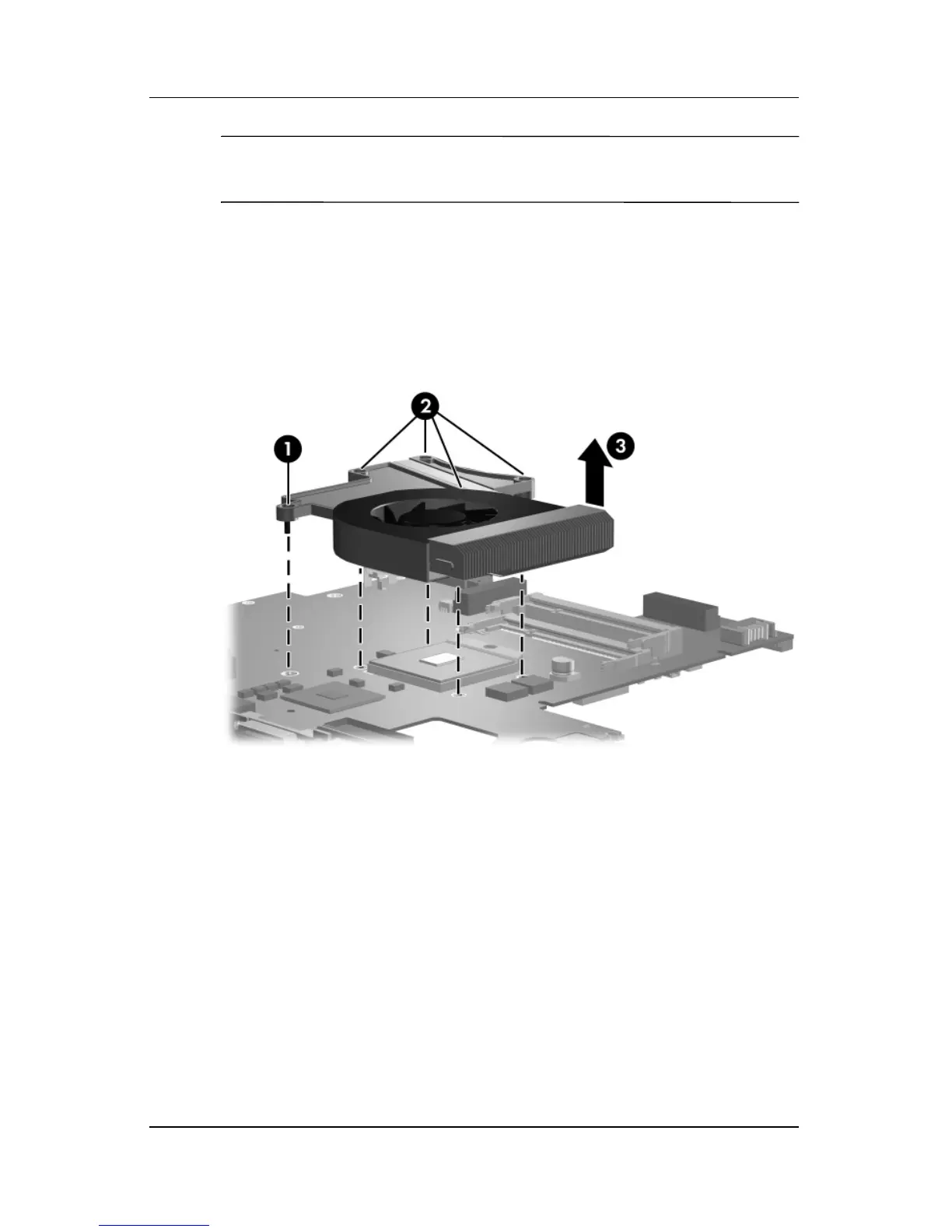

Removing Fan/Heat Sink Assembly
