5ā88 Maintenance and Service Guide
Removal and Replacement Procedures
Steps 2 and 3 apply only to computer models using
Intel processors.
2. Turn the processor locking screw 1 one-half turn
counterclockwise until you feel a click.
3. Lift the processor 2 straight up and remove it.
ā
Align the triangle icon 3 embossed on the processor socket
with the gold triangle 4 on the processor when you install the
processor.

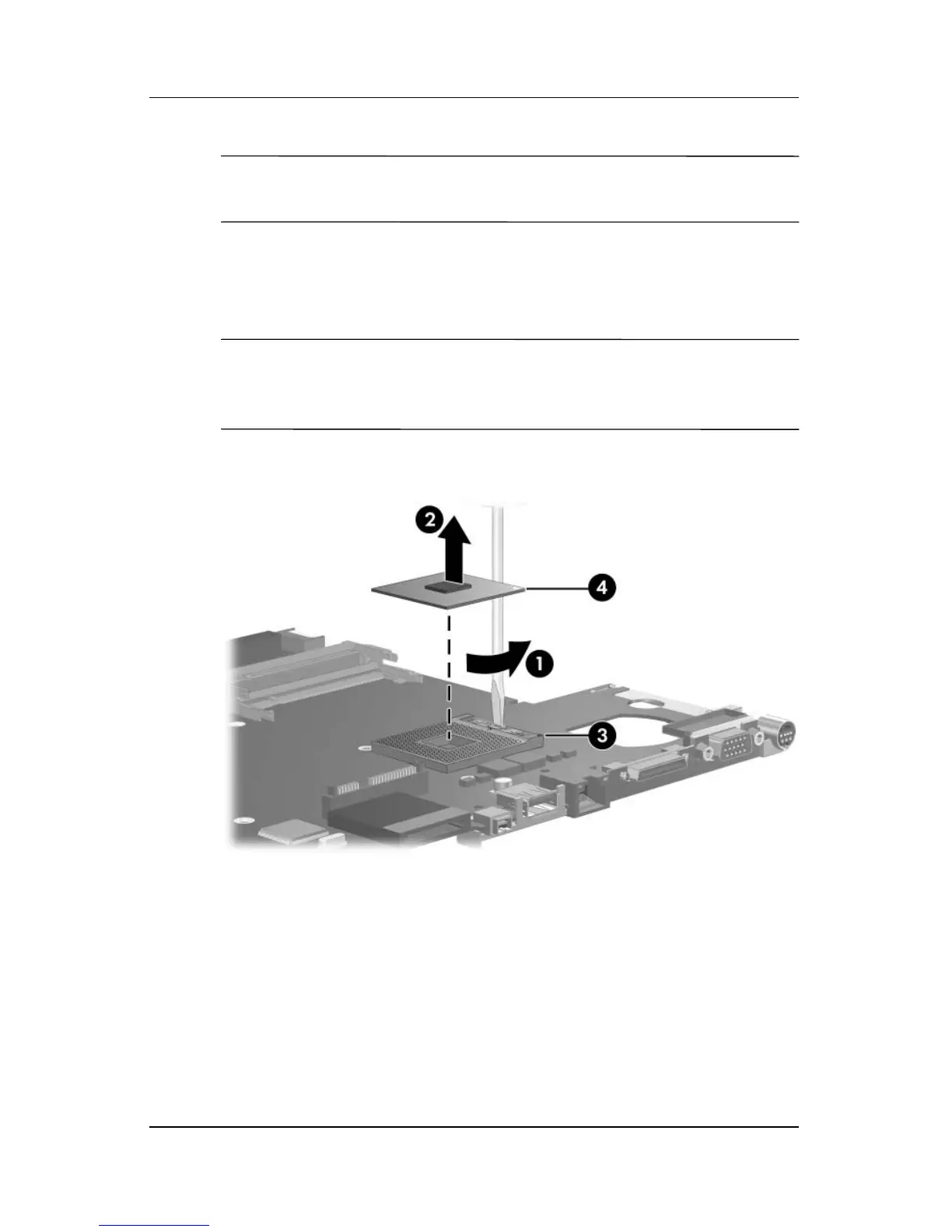

Removing the Processor
