HP 20B User Manual

Time Value of Money
31

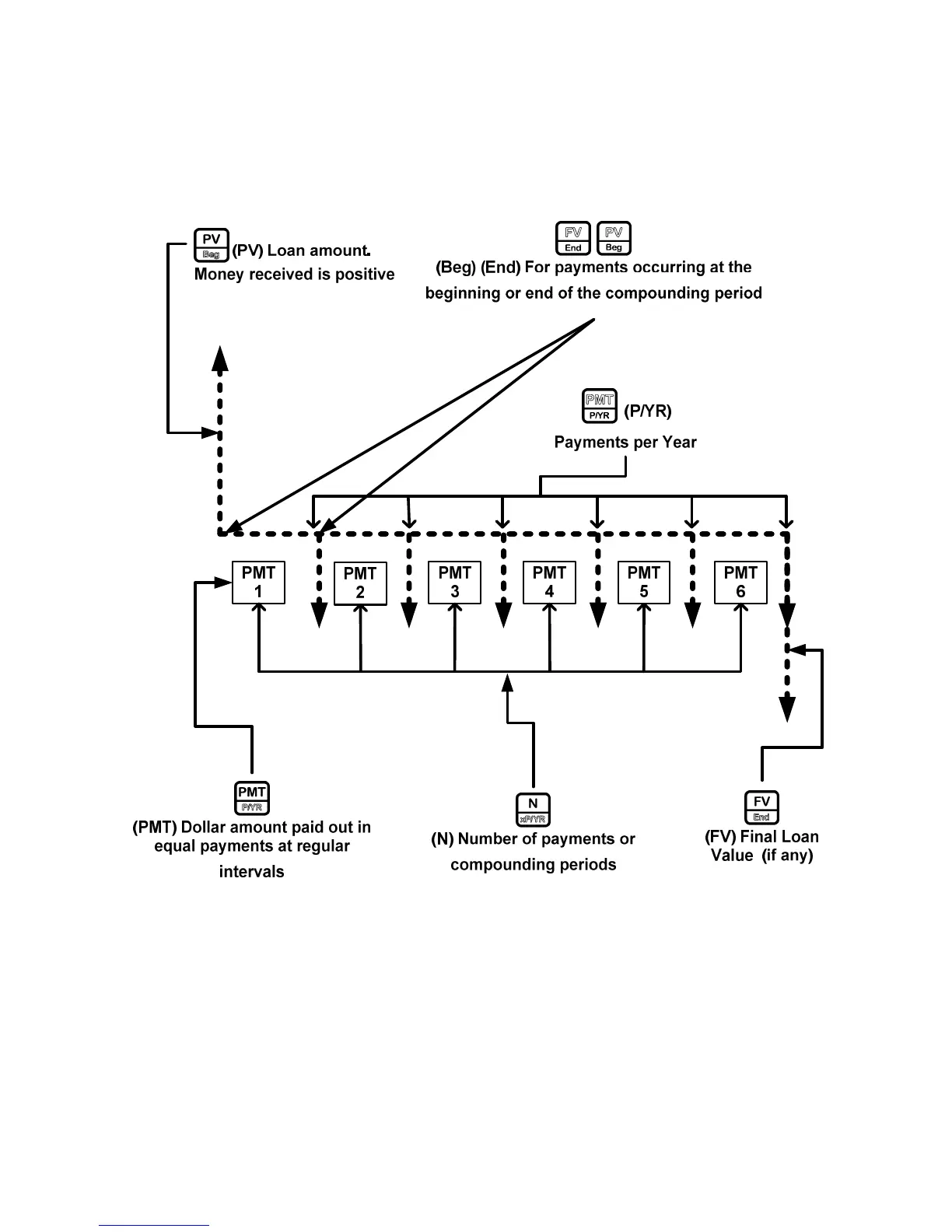

Figure 1 Cash Flow Diagram Example with Corresponding TVM Keys
The TVM functions of the calculator can solve problems with at least one cash flow, and problems in which all the cash flows,
except the first and last, are of the same value. To solve other types of cash flows, refer to the section below titled, Canadian
Mortgages: TVM Canada , or Chapter 4, Cash Flows .
Figure 1 illustrates a cash flow diagram and how the data in the diagram corresponds to the TVM keys. For a complete list of
keys used for TVM problems, along with their descriptions, see Table 3-1.

HP 20B Specifications

General

Type	Financial
Cover	-
Form factor	Pocket
Control type	Buttons
Product color	Black
Digits	12 digits
Display type	LCD
Display tilting	No
Display number of lines	2 lines
Battery type	CR2032
Power source	Battery
Auto power off	Yes
Number of batteries supported	2
Memory registers	110

Weight and Dimensions

Depth	149.2 mm
Width	77 mm
Height	16 mm
Weight	37.5 g
