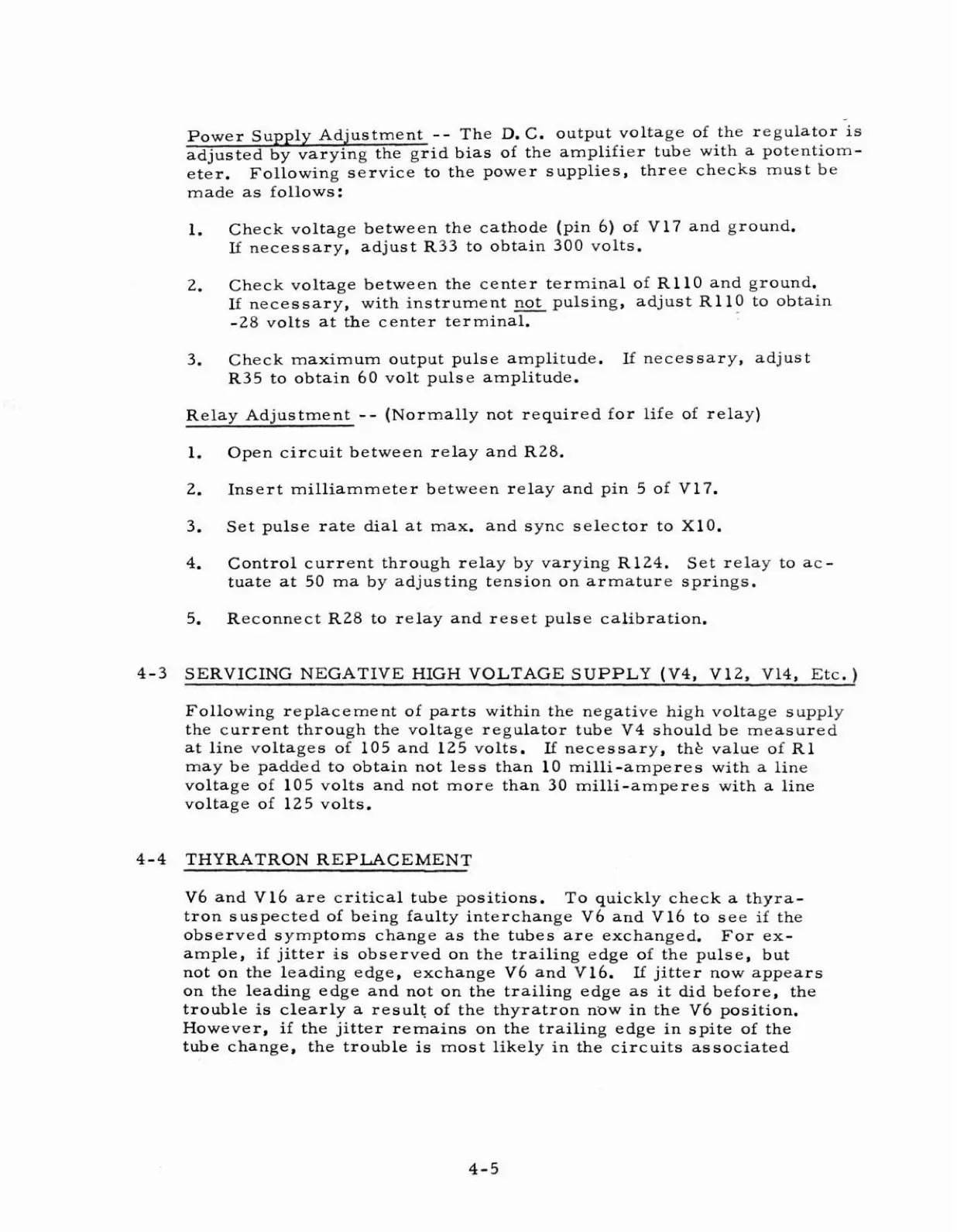

Power
Supply
Adjustment
--
The
D.
C.
output
voltage
of
the
regulator
is
adjusted
by
varying
the
grid
bias
of
the
amplifier
tube
with
a
potentiom-
eter.
Following
service
to
the
power
supplies,
three
checks
must
be
made
as
follows:
1.
Check
voltage
between
the
cathode
(pin
6)
of
V17
and
ground.
If
necessary,
adjust
R33
to obtain
300
volts.
2.
Check
voltage
between
the
center
terminal
of
RllO
and
ground.
If
necessary,
with
instrument
not
pulsing,
adjust
RL
10
to
obtain
-28
volts
at
the
center
terminal.
3.
Check
maximum
output
pulse
amplitude.
If
necessary,
adjust
R35
to obtain
60
volt
pulse
amplitude.
Relay
Adjustment
--
(Normally
not
required
for
life
of
relay)
1.
Open
circuit
between
relay
and
RZ8.
2.
Insert
milliarnmeter
between
relay
and
pin
5
of
V17,
3.
Set
pulse
rate
dial
at
max.
and
sync
selector
to
X1Q.
4.
Control
current
through
relay
by
varying
R124.
Set
relay
to
ac
-
tuate
at
50
ma
by
adjusting
tension
on
armature
springs,
5.
Reconnect
R28
to
relay
and
reset
pulse
calibration.
4-3
SERVICING
NEGATIVE
HIGH
VOLTAGE
SUPPLY
(V4,
V12,
V14,
Etc.
)
Following
replacement
of
parts
within
the
negative
high
voltage
supply
the
current
through
the
voltage
regulator
tube
V4
should
be
measured
at
line
voltages
of
105
and
125
volts.
If
necessary,
th8
value
of
R1
may
be
padded
to
obtain
not
less
than
10
rnilli-amperes
with
a
line
voltage
of
105
volts
and
not
more
than
30
milli-amperes
with
a
line
voltage
of
125
volts.
4-4
THYRATRON
REPLACEMENT
V6
and
V16
are critical
tube positions.
To
quickly
check
a
thyra-
tron suspected
of
being
faulty
interchange
V6
and
V
16
to
see
if
the
observed
symptoms
change
as
the tubes
are
exchanged,
For
ex-
ample,
if
jitter
39
observed
on
the
trailing
edge
of
the
pulse,
but
not
on
the
leading
edge,
exchange
V6
and
Vl6.
If
jitter
now
appears
on
the
leading
edge
and
not
on
the
trailing
edge
as
it
did
before,
the
trouble
is
clearly
a
result
of
the
thyratron
now
in
the
V6
position,
However,
if
the
jitter
remains
on
the
trailing
edge
in
spite
of
the
tube
change,
the
trouble
is
most
likely
in
the
circuits
as
sociated
