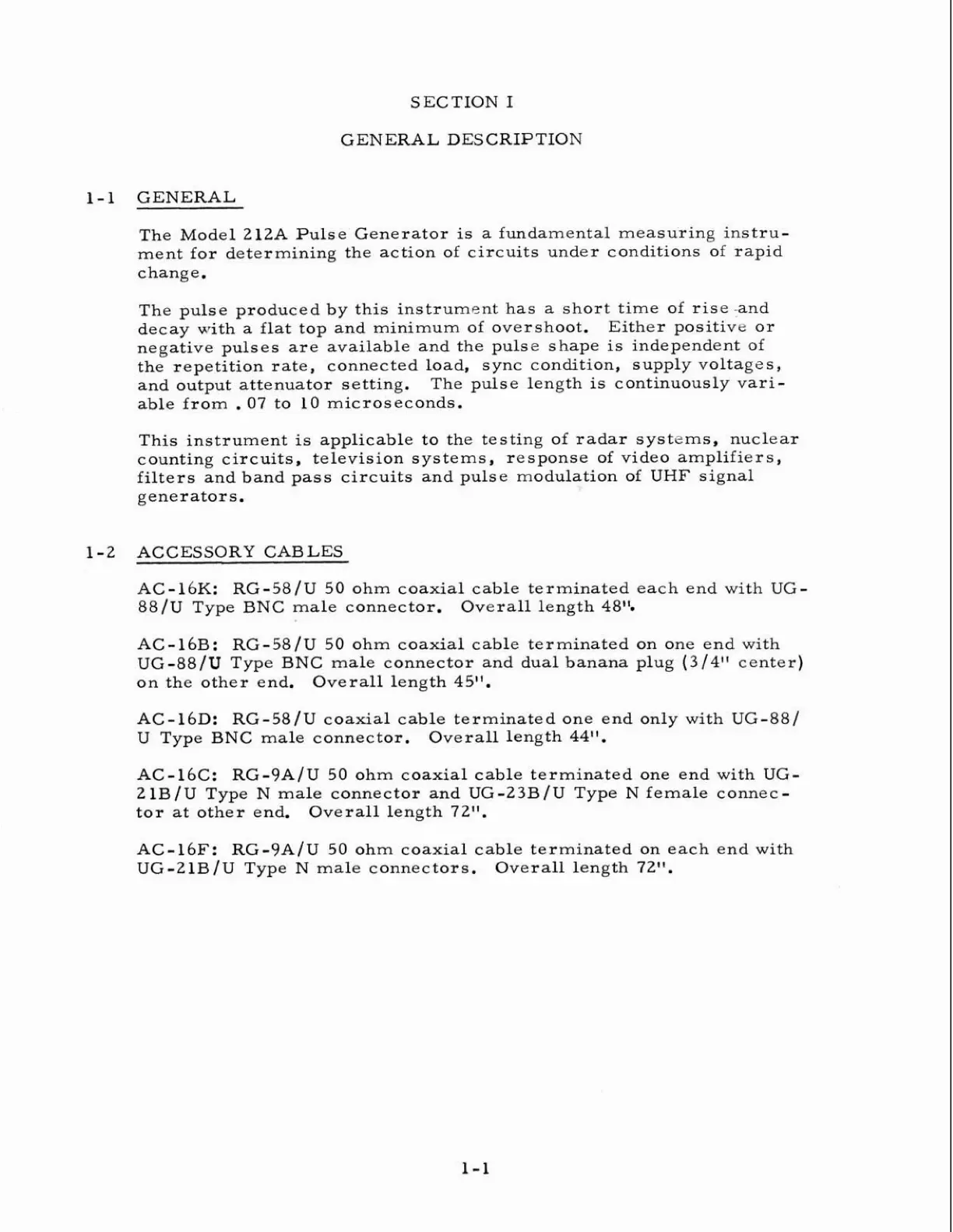

SECTION I
GENEML DESCRIPTION
1-1 GENERAL
The Model 2 12A Pulse Generator is a fundamental measuring instru-
ment for determining the action of circuits under conditions of rapid
change.
The pulse produced by this instrument has a short time of rise -and
decay with a flat top and minimum of overshoot.
Either positive or
negative pulses are available and the pulse shape is independent of
the repetition rate, connected load, sync condition, supply voltages,
and output attenuator setting. The pulse length is continuously vari -
able from . 07 to 10 microseconds.
This instrument is applicable to the testing of radar systems,
nuclear
counting circuits, television systems, response of video amplifiers,
filters and band pass circuits and pulse modulation of UHF signal
generators,
ACCESSORY CABLES
AC-16K: RG-58 /U 50 ohm coaxial cable terminated each end with UG -
88/U Type BNC male connector.
Overall length 4Bt1.
AC-16B: RG-58 /U 50 ohm coaxial cable terminated on one end with
UG-88/U Type BNC male connector and dual banana plug (3 /4" center)
on the other end.
Overall length 45".
AC- 16D: RG-58/U coaxial cable terminated one end only with WG-881
U Type BNG male connector. Overall length 4411.
AC-16C: RG-9A/U 50 ohm coaxial cable terminated one end with UG-
2 1B /U Type N male connector and UG -23B /U Type N female connec -
tor at other end. Overall length 72".
AC- E6F: RG-9A/U 50 ohm coaxial cable terminated on each end with
UG-21B/U Type N male connectors.
Overall length 72".
