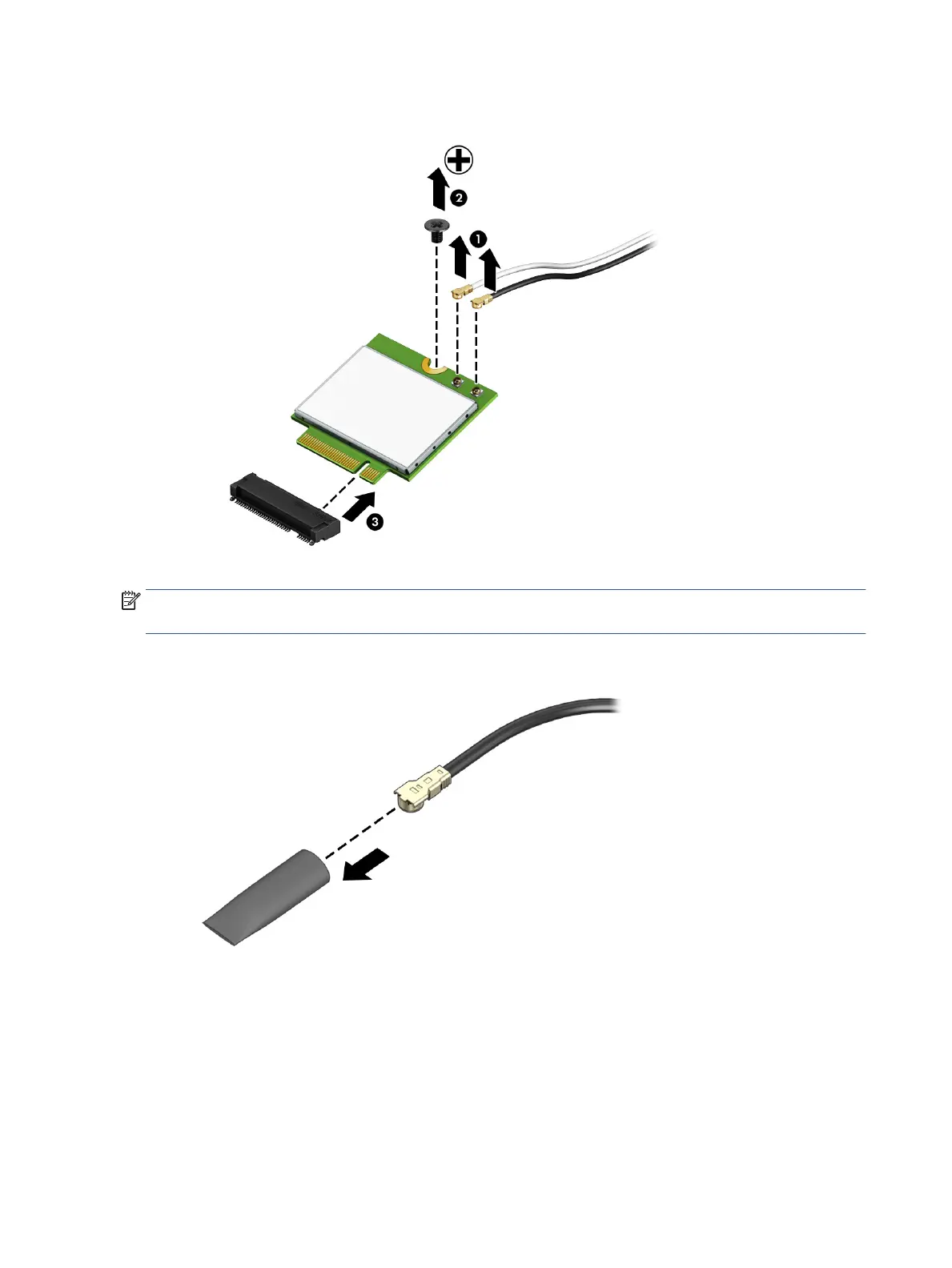

3. Remove the WLAN module by pulling the module away from the slot at an angle (3).
NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective
sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
Memory module
To remove the memory modules, use this procedure and illustration.
34 Chapter 5 Removal and replacement procedures for authorized service provider parts
