1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the rubber feet (see Computer feet on page 26).
3. Remove the bottom cover (see Bottom cover on page 27).
4. Remove the battery (see Battery on page 28).
To remove the touchpad click board:

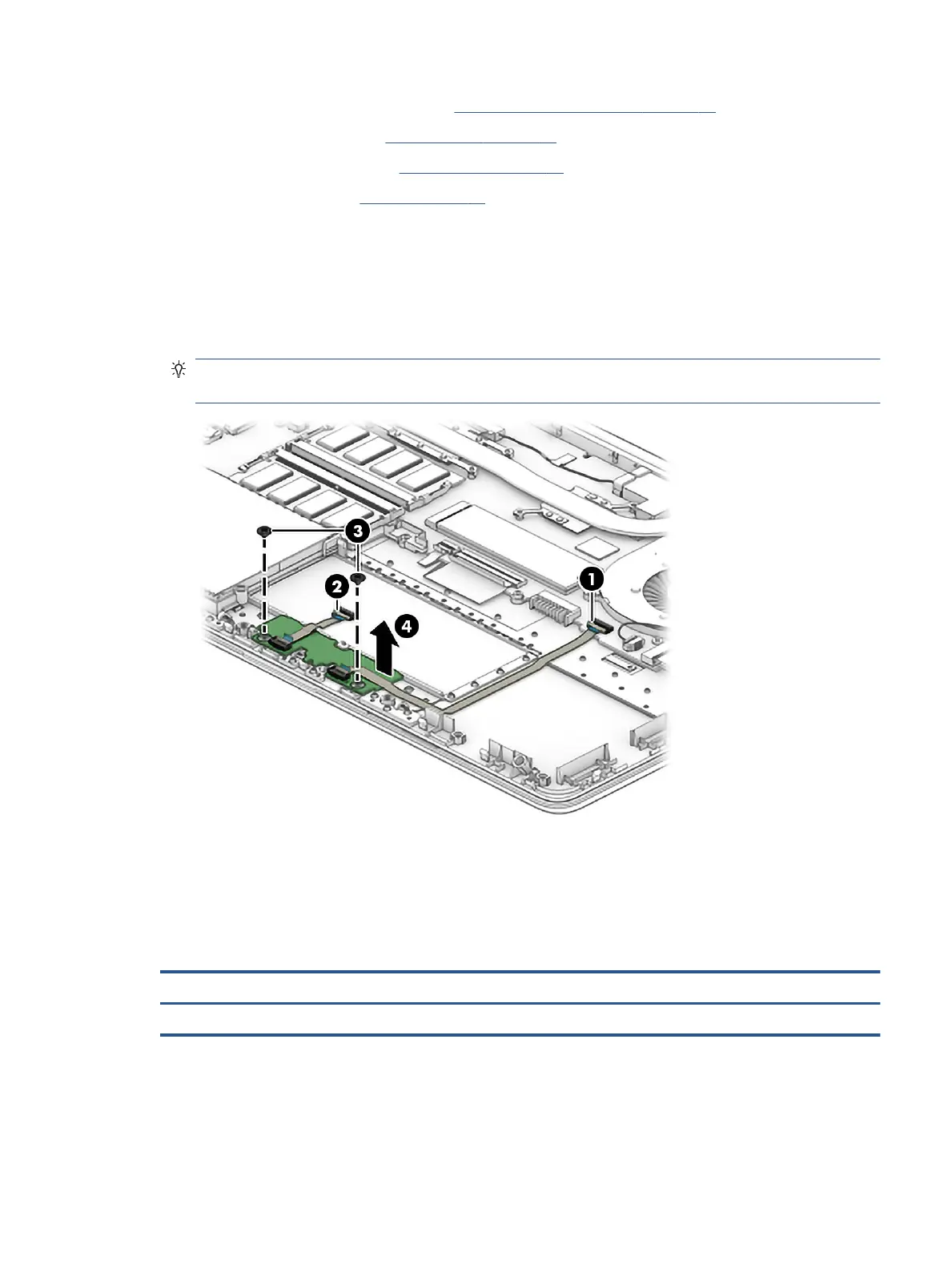

1. Disconnect the touchpad cable (1) from the system board, and then disconnect from the touchpad click
board cable (2) touchpad.
2. Remove the two Phillips M2.0 × 2.0 screws (3) that secure the touchpad click board to the computer.
3. Lift the board, and then slide it outward from under the clips that hold it on place to remove it (4).
TIP: The edge of the board sits under clips. Be sure to slide the board out from under the clips to
prevent damage to the board or clips.
Reverse this procedure to install the touchpad click board.
Touchpad
To remove the touchpad, use this procedure and illustration.
Table
5-12 Touchpad description and part number
Description Spare part number
Touchpad L24484-001
Before removing the touchpad, follow these steps:
Component replacement procedures 39
