HP 2510p - Compaq Business Notebook Maintenance And Service Guide

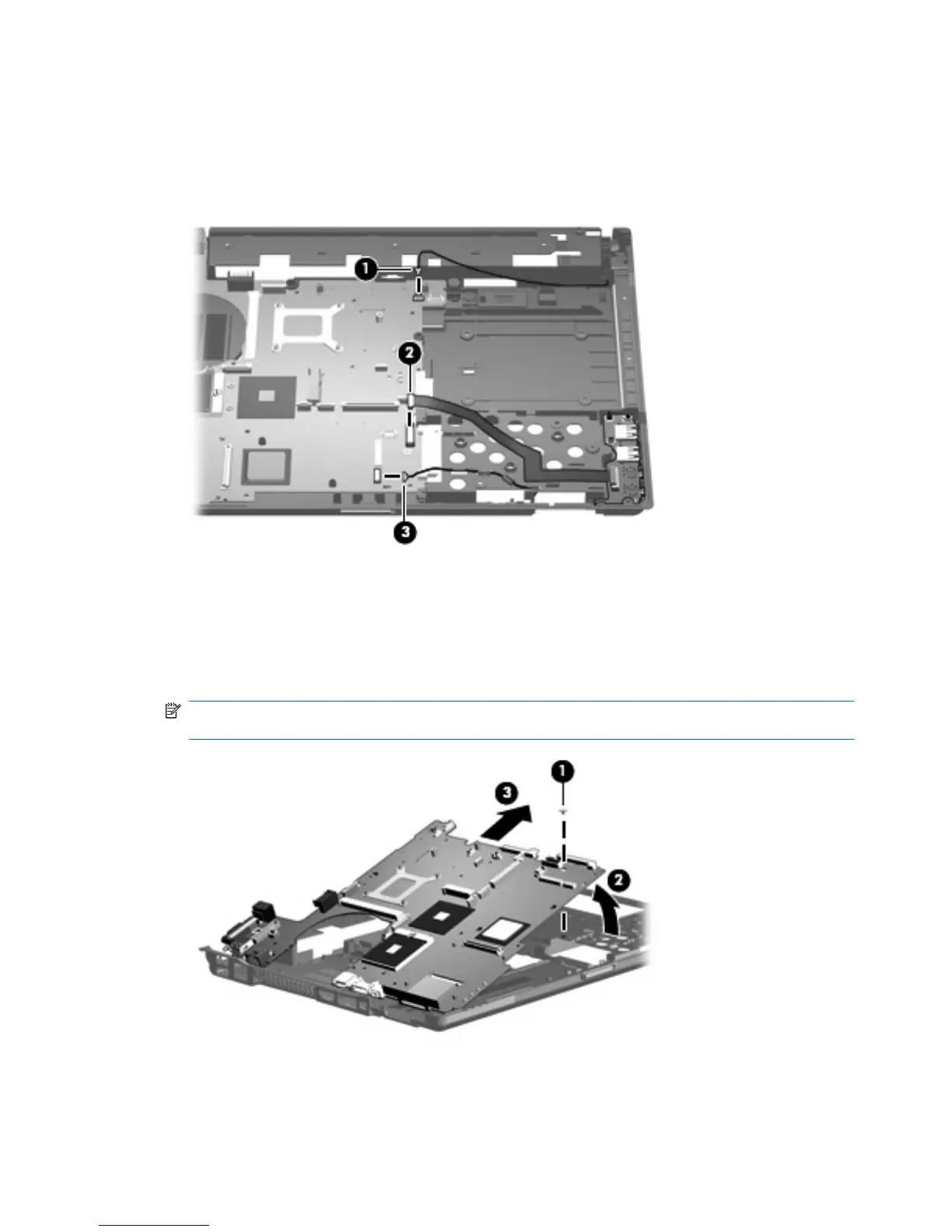

2. Disconnect the following cables from the system board:
(1) RJ-11 connector cable
(2) USB/audio board cable
(3) Bluetooth module cable
3. Position the base enclosure with the rear panel toward you.
4. Remove the one black Phillips PM2.0×3.0 screw (1) that secures the system board frame to the
base enclosure.
5. Lift the system board (2) and frame and slide them to the right (3) to remove them from the base
enclosure.
NOTE: When removing the system board and frame, be sure that the USB/audio board cables
route cleanly through the openings in the system board frame.
Reverse the preceding procedure to install the system board.
90 Chapter 4 Removal and replacement procedures

HP 2510p - Compaq Business Notebook Specifications

General

Display	12.1-inch WXGA (1280 x 800)
Graphics	Intel GMA X3100
Processor	Intel Core 2 Duo U7600
RAM	Up to 4 GB DDR2 SDRAM, 667 MHz
Storage	80/120 GB 5400 RPM
Operating System	Windows Vista Business
Battery Life	Up to 6 hours
Wireless	Intel PRO/Wireless 3945ABG or 4965AGN
Dimensions	28.2 x 21.4 x 2.35 cm
Ports	3 USB 2.0, VGA, headphone/microphone jacks, docking connector
Optical Drive	External (optional)
