Fan
Description Spare part number
For use with HP EliteBook 8530p computer models or HP EliteBook 8530w computer models 495079-001
For use with HP EliteBook 8530w computer models with Intel QX9300 Quad Core processor 495080-001
Before removing the fan, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 44).
5. Remove the following components:
a. Hard drive (see
Hard drive on page 50)
b. Optical drive (see
Optical drive on page 46)
c. Keyboard (see
Keyboard on page 60)
d. Switch cover (see
Switch cover on page 65)
e. Display assembly (see
Display assembly on page 68)
f. Top cover (see
Top cover on page 74)

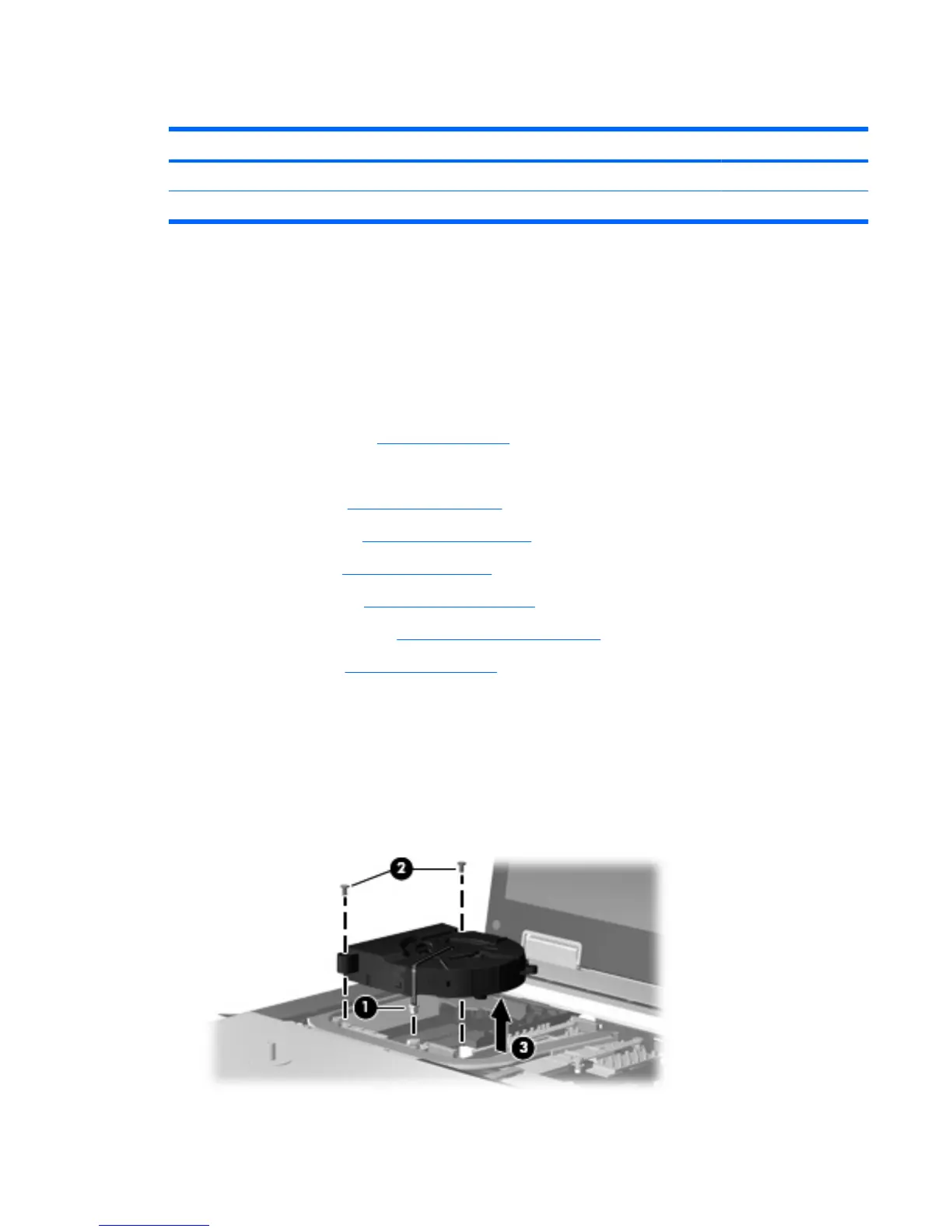

Remove the fan:
1. Position the computer right-side up, with the front toward you.
2. Disconnect the fan cable (1) from the system board.
3. Remove the two Torx 8M2.5x7.0 screws (2) that secure the fan to the base enclosure.
4. Lift the front edge of the fan to remove it from (3) from the base enclosure.
Component replacement procedures 79
