e. Display assembly (see Display assembly on page 68)
f. Top cover (see
Top cover on page 74)
g. Fan (see
Fan on page 79)
h. Heat sink (see
Heat sink on page 81)

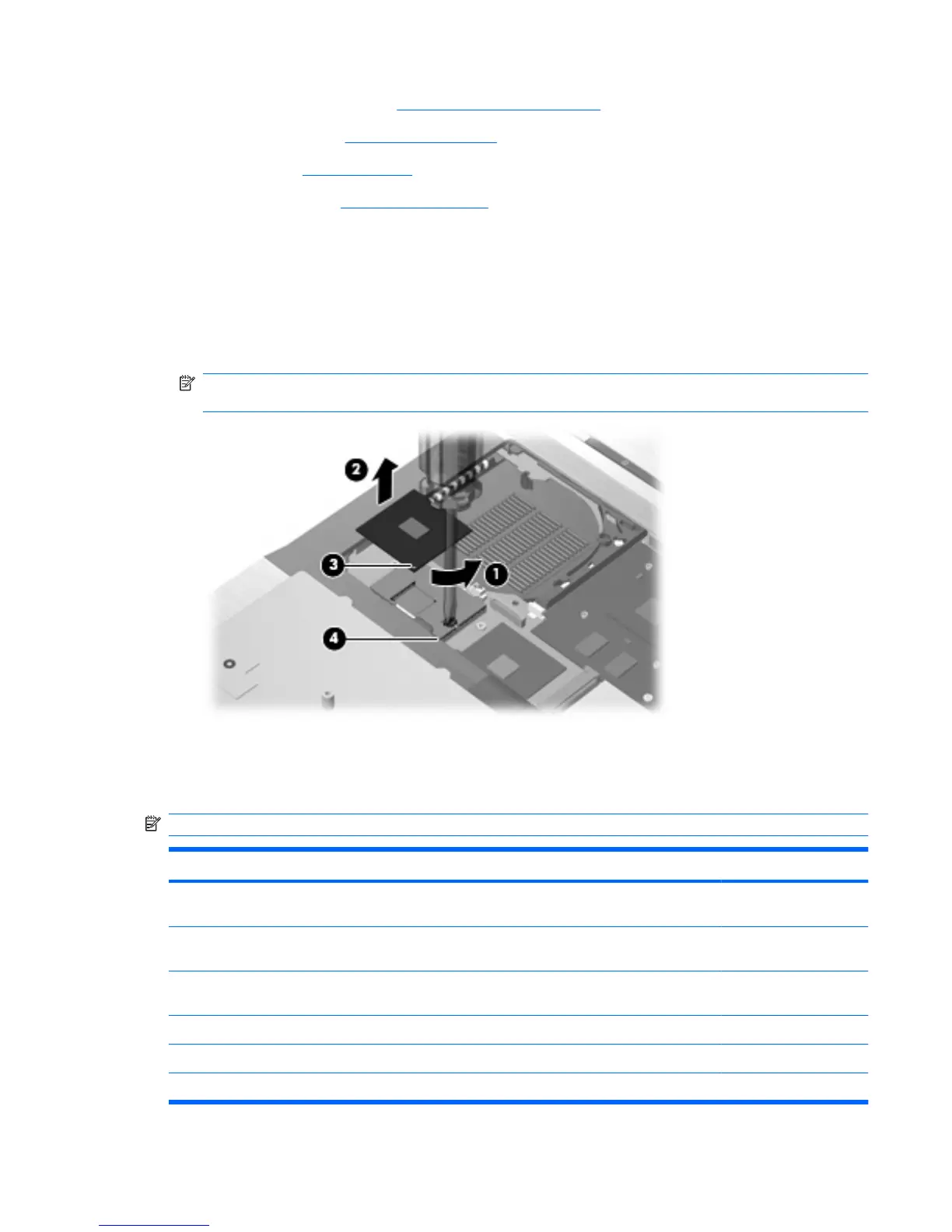

Remove the processor:
1. Position the computer right-side up, with the front toward you.
2. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise
until you hear a click.
3. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed on
the processor slot when you install the processor.
Reverse this procedure to install the processor.
Graphics card
NOTE: All graphics card spare part kits include replacement thermal material.
Description Spare part number
ATI M86M ATI Mobility Radeon HD 3650 graphics card with 256 MB of graphics subsystem memory
(supports Hypermemory)
495081-001
ATI M86M ATI Mobility FireGL V700 graphics card with 256 MB of graphics subsystem memory
(supports Hypermemory)
502337-001
nVidia NB9P-GLM2 graphics card with 512 MB of graphics subsystem memory (supports Quadro
FX 770M)
502338-001
Thermal Material Kits
For use with the ATI Quad Core processor
495074-001
For use with the nVidia Quad Core processor 501116-001
Component replacement procedures 85
