HP 2510p - Compaq Business Notebook Maintenance And Service Guide

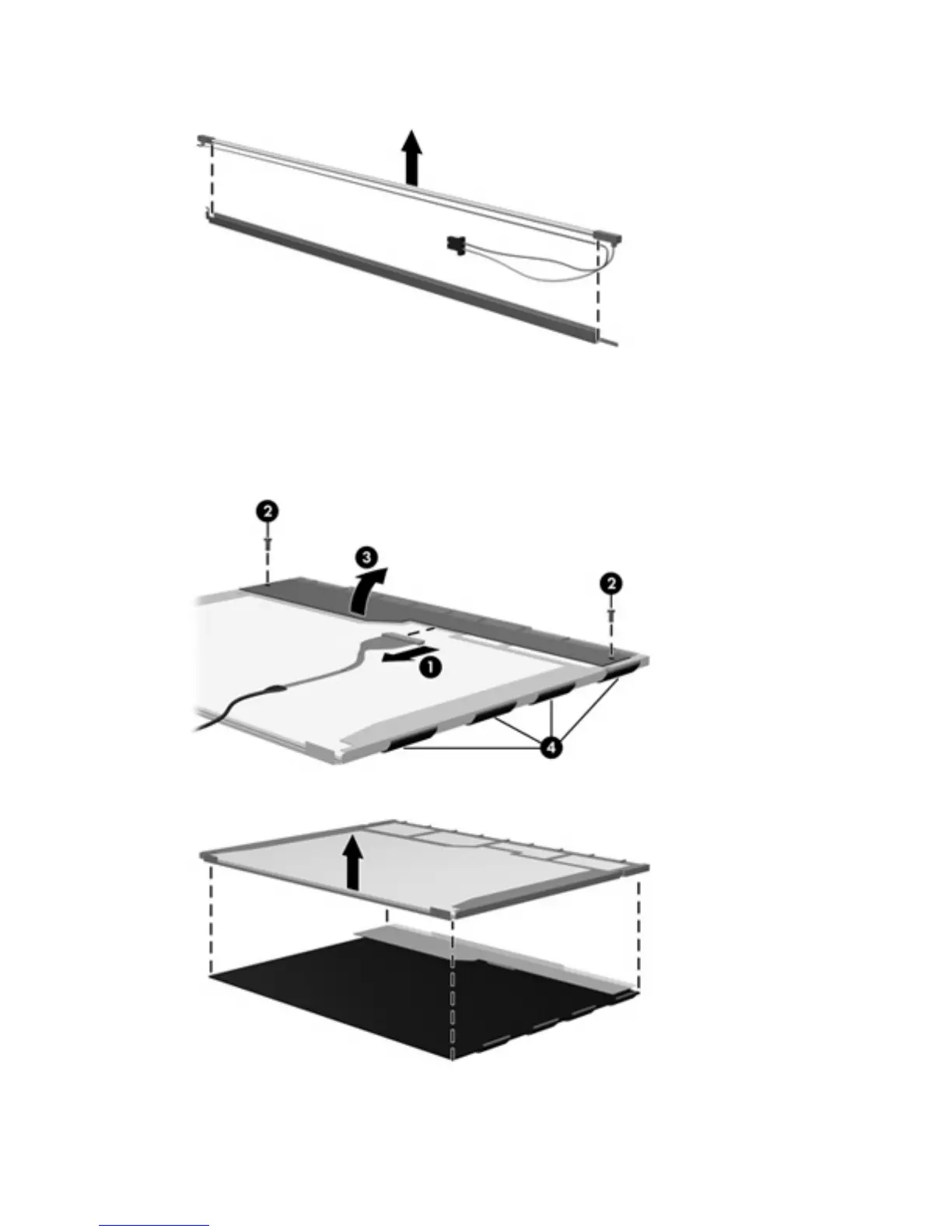

18. Remove the backlight from the backlight frame.
19. Disconnect the display panel cable (1) from the LCD panel.
20. Remove the screws (2) that secure the LCD panel to the display rear panel.
21. Release the LCD panel (3) from the display rear panel.
22. Release the tape (4) that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
154 Chapter 11 Recycling

HP 2510p - Compaq Business Notebook Specifications

General

Display	12.1-inch WXGA (1280 x 800)
Graphics	Intel GMA X3100
Processor	Intel Core 2 Duo U7600
RAM	Up to 4 GB DDR2 SDRAM, 667 MHz
Storage	80/120 GB 5400 RPM
Operating System	Windows Vista Business
Battery Life	Up to 6 hours
Wireless	Intel PRO/Wireless 3945ABG or 4965AGN
Dimensions	28.2 x 21.4 x 2.35 cm
Ports	3 USB 2.0, VGA, headphone/microphone jacks, docking connector
Optical Drive	External (optional)
