HP 2510p - Compaq Business Notebook Maintenance And Service Guide

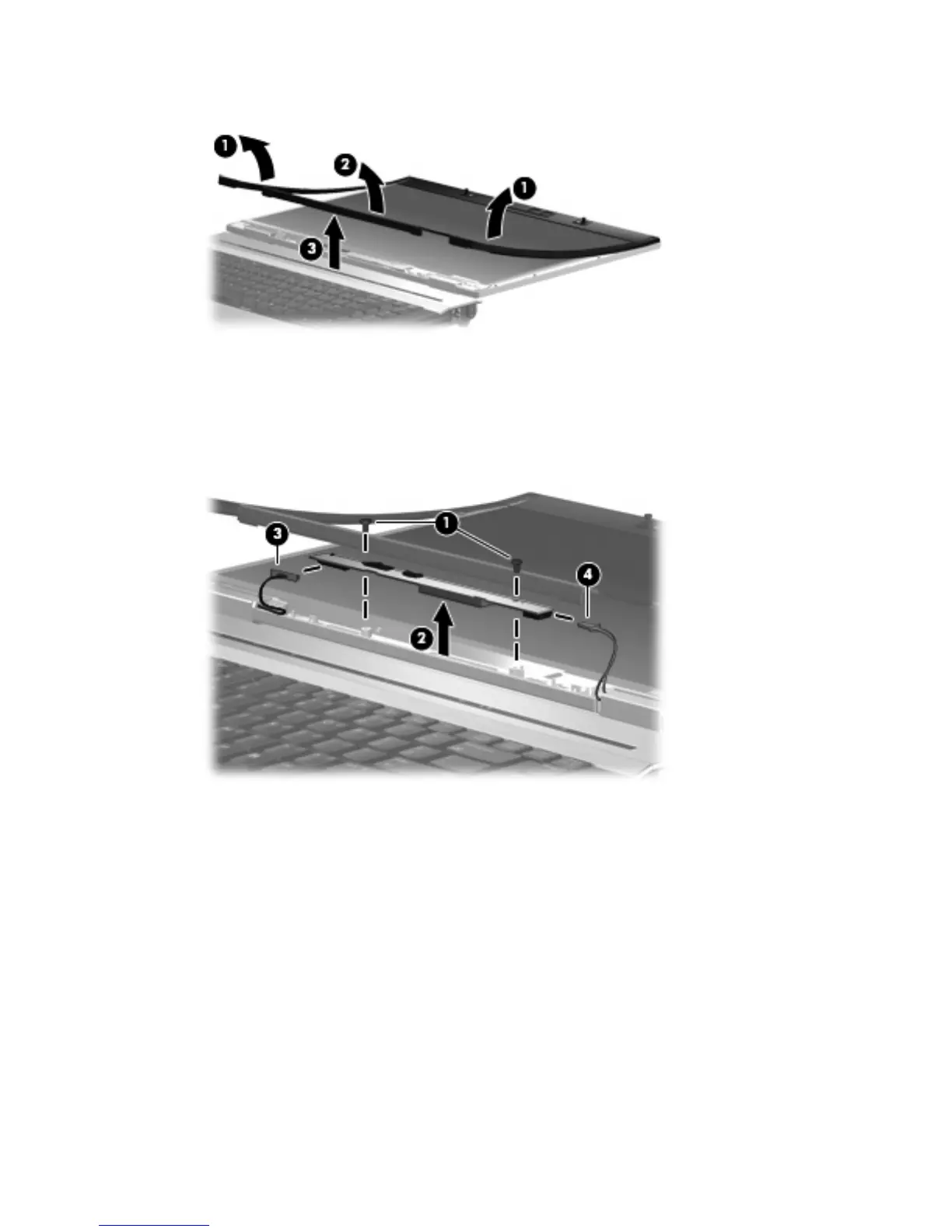

6. Release the display bezel bottom edge (3) from the display assembly.
7. Remove the two Phillips PM2.5×5.0 screws (1) that secure the display inverter to the display
enclosure.
8. Release the inverter (2) from the display enclosure as far as the display panel cable and backlight
cable allow.
9. Disconnect the backlight cable (3) and the display panel cable (4) from the display inverter.
10. Remove the display inverter.
Reverse this procedure to install the display inverter.
Component replacement procedures 49

HP 2510p - Compaq Business Notebook Specifications

General

Display	12.1-inch WXGA (1280 x 800)
Graphics	Intel GMA X3100
Processor	Intel Core 2 Duo U7600
RAM	Up to 4 GB DDR2 SDRAM, 667 MHz
Storage	80/120 GB 5400 RPM
Operating System	Windows Vista Business
Battery Life	Up to 6 hours
Wireless	Intel PRO/Wireless 3945ABG or 4965AGN
Dimensions	28.2 x 21.4 x 2.35 cm
Ports	3 USB 2.0, VGA, headphone/microphone jacks, docking connector
Optical Drive	External (optional)
