HP 2510p - Compaq Business Notebook Maintenance And Service Guide

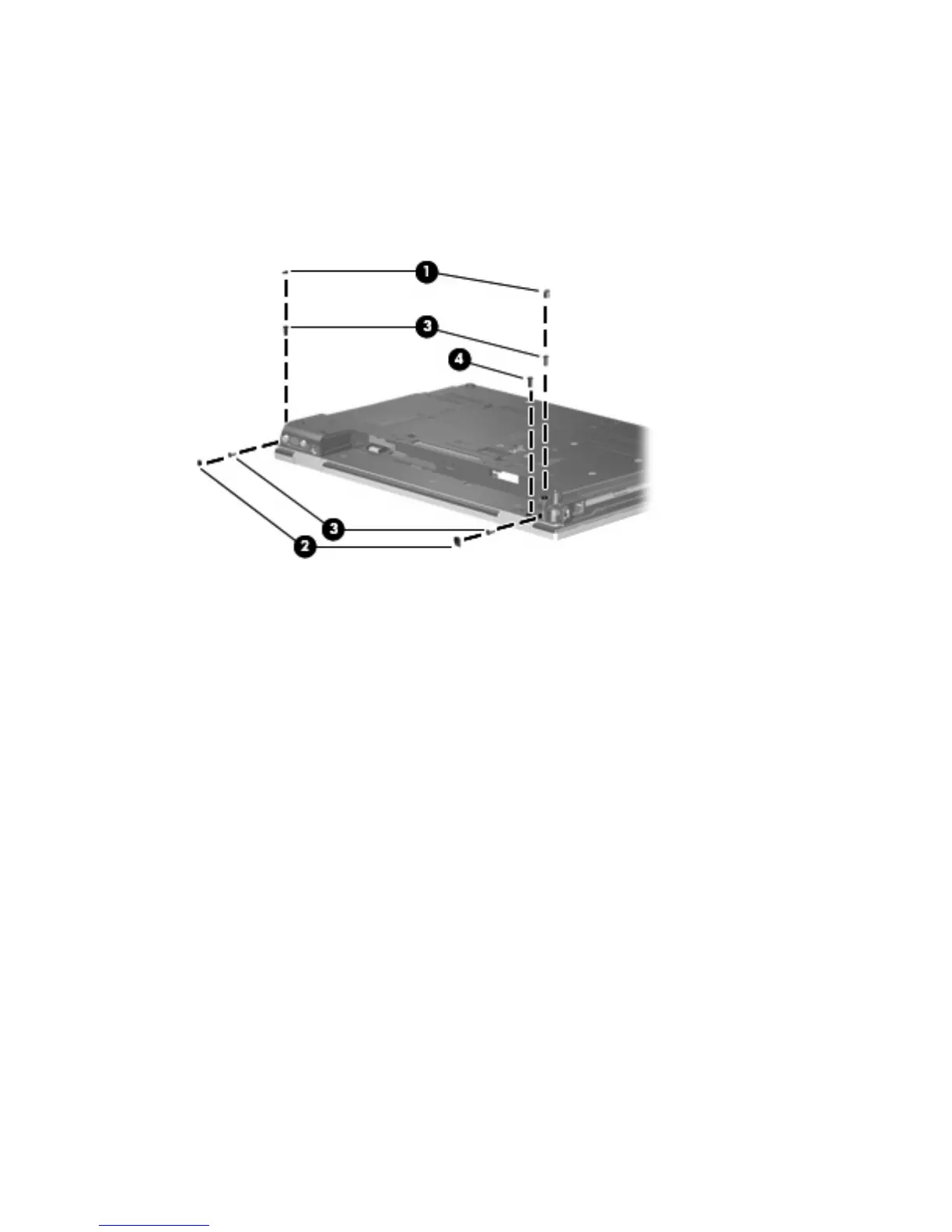

5. Remove the following:
(1) One round screw cover on each side
(2) One large round screw cover and one wedge screw cover on each side
(3) Four Torx T8M2.5×7.0 screws
(4) One Phillips PM2.5×5.0 screw in the battery bay
6. Remove the two Torx T8M2.5×7.0 screws (1) that secure the display assembly to the computer.
70 Chapter 4 Removal and replacement procedures

HP 2510p - Compaq Business Notebook Specifications

General

Display	12.1-inch WXGA (1280 x 800)
Graphics	Intel GMA X3100
Processor	Intel Core 2 Duo U7600
RAM	Up to 4 GB DDR2 SDRAM, 667 MHz
Storage	80/120 GB 5400 RPM
Operating System	Windows Vista Business
Battery Life	Up to 6 hours
Wireless	Intel PRO/Wireless 3945ABG or 4965AGN
Dimensions	28.2 x 21.4 x 2.35 cm
Ports	3 USB 2.0, VGA, headphone/microphone jacks, docking connector
Optical Drive	External (optional)
