Introducing the Switch

Front of the Switch

The following image represents the characteristics of the HP 2530 24-port and

48-port Gigabit Ethernet switches.

Network Ports

■ 8, 24, or 48 auto-sensing 10/100BASE-TX or 10/100/1000BASE-T ports.

All these ports have the “Auto-MDIX” feature, which means that you can

use either straight-through or crossover twisted-pair cables to connect

any network devices to the switch.

■ Two dual-personality ports (HP 2530 8-port switches).

■ Two auto-sensing 10/100/1000BASE-T ports and two SFP slots for fiber or

copper uplinks (HP 2530 24-port and 48-port Fast Ethernet switches).

■ Four SFP slots for fiber or copper uplinks (HP 2530 24-port and 48-port

Gigabit Ethernet switches).

LEDs

On the 2530 Switches, there are three groupings of LEDs:

■ switch status LEDs (Table 1-2)

■ port LEDs (Table 1-3)

■ Port LED Mode indicator LEDs (near the selector button) (Table 1-4)

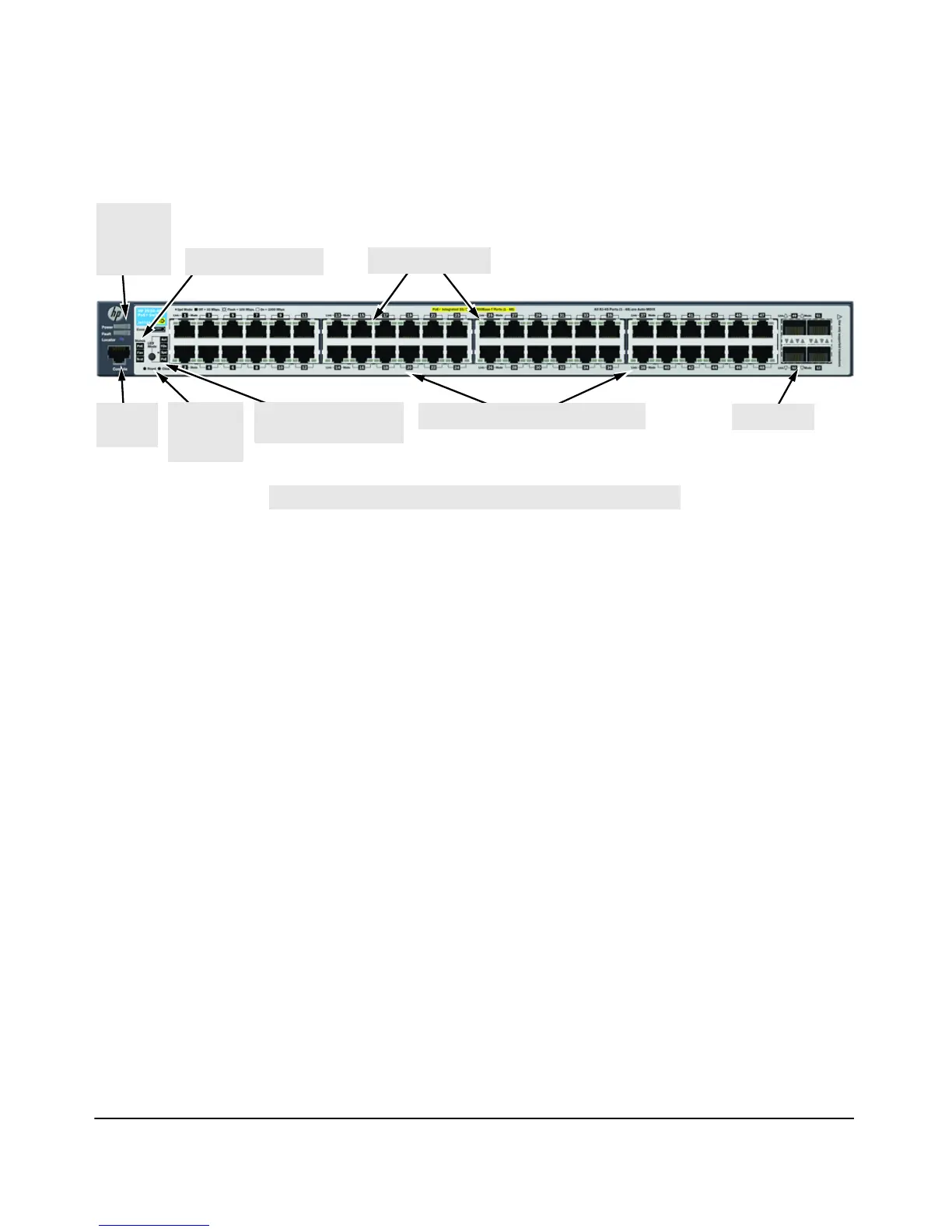

HP 2530-48G-PoE+ Switch (J9772A)

Power,

Fault, and

Locator

LEDs

Test and Status LEDs

Switch port LEDs

LED Mode select button

and indicator LEDs

Reset and

Clear

buttons

10/100/1000BASE-T RJ-45 PoE+ ports

SFP slots

Console

Port

All 10/100/1000BASE-T RJ-45 ports have the Auto-MDIX feature.
