HP 2530-48G User Manual

1-1
1
Introducing the Switch
The HP 2530 Switch Series are multiport switches that can be used to build
high-performance switched workgroup networks. These switches are store-
and-forward devices that offer low latency for high-speed networking. Six of
the switches also support the IEEE 802.3at standard for providing PoE+ power
to connected devices.

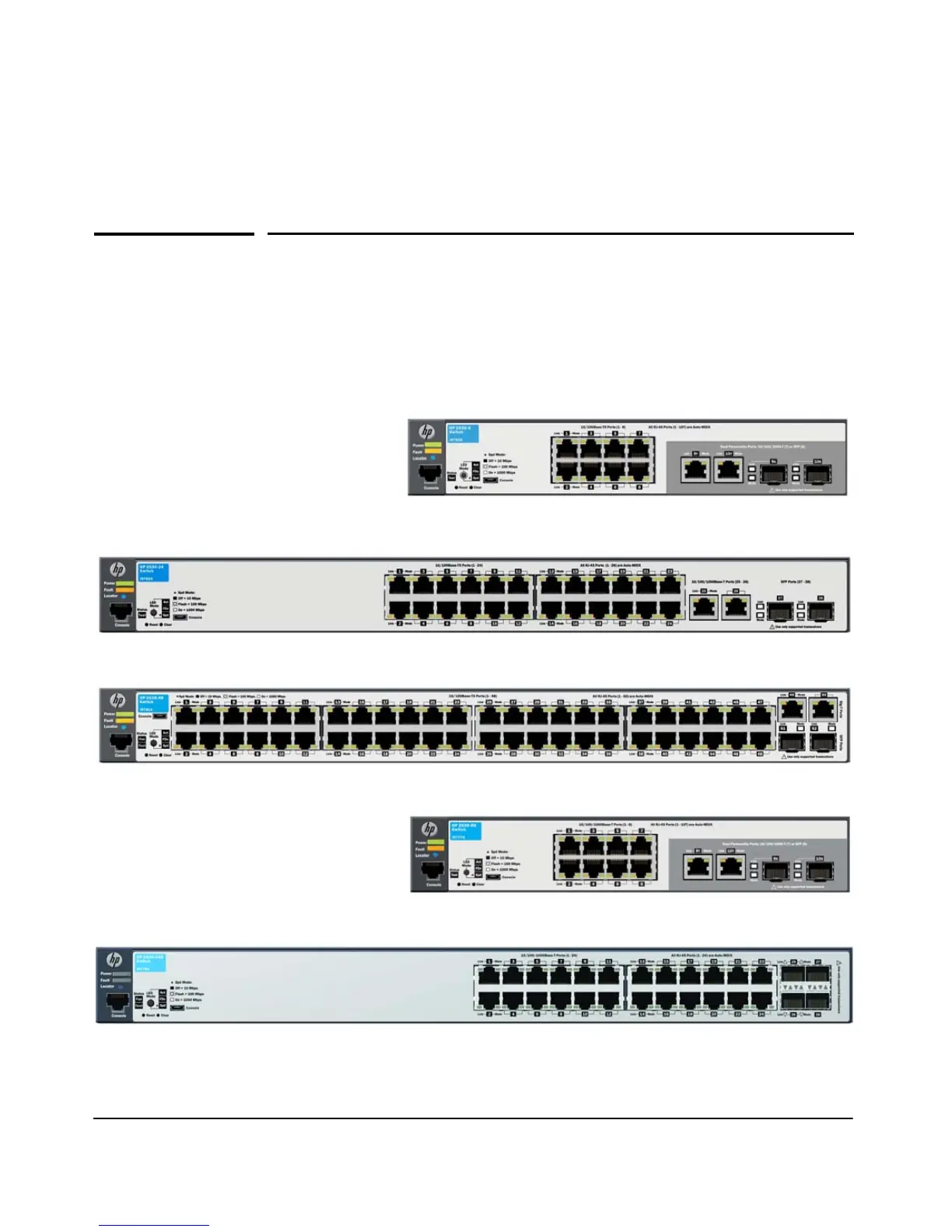

HP 2530-8 Switch (J9783A)
HP 2530-24 Switch (J9782A)
HP 2530-48 Switch (J9781A)
HP 2530-8G Switch (J9777A)
HP 2530-24G Switch (J9776A)

HP 2530-48G Specifications

General

Switching Capacity	104 Gbps
Throughput	77.3 Mpps
Power Supply	Internal
MAC Address Table Size	16, 000 entries
Jumbo Frame Support	Yes
Mounting	Rack-mountable
SFP Ports	4
Management	Web, CLI, SNMP
Layer	Layer 2
Power Consumption	44 W (maximum)
Features	VLAN
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	15% to 95% non-condensing
Ports	48 RJ-45 autosensing 10/100/1000 ports
