HP 2530 User Manual

1. Enter the following in the FreeRADIUS dictionary.hp file:
• HP vendor-specific ID
• ACL VSA for IPv6 ACLs (63)
• HP-Nas-Rules-IPv6 VALUE setting to specify both IPv4 and IPv6 (1)

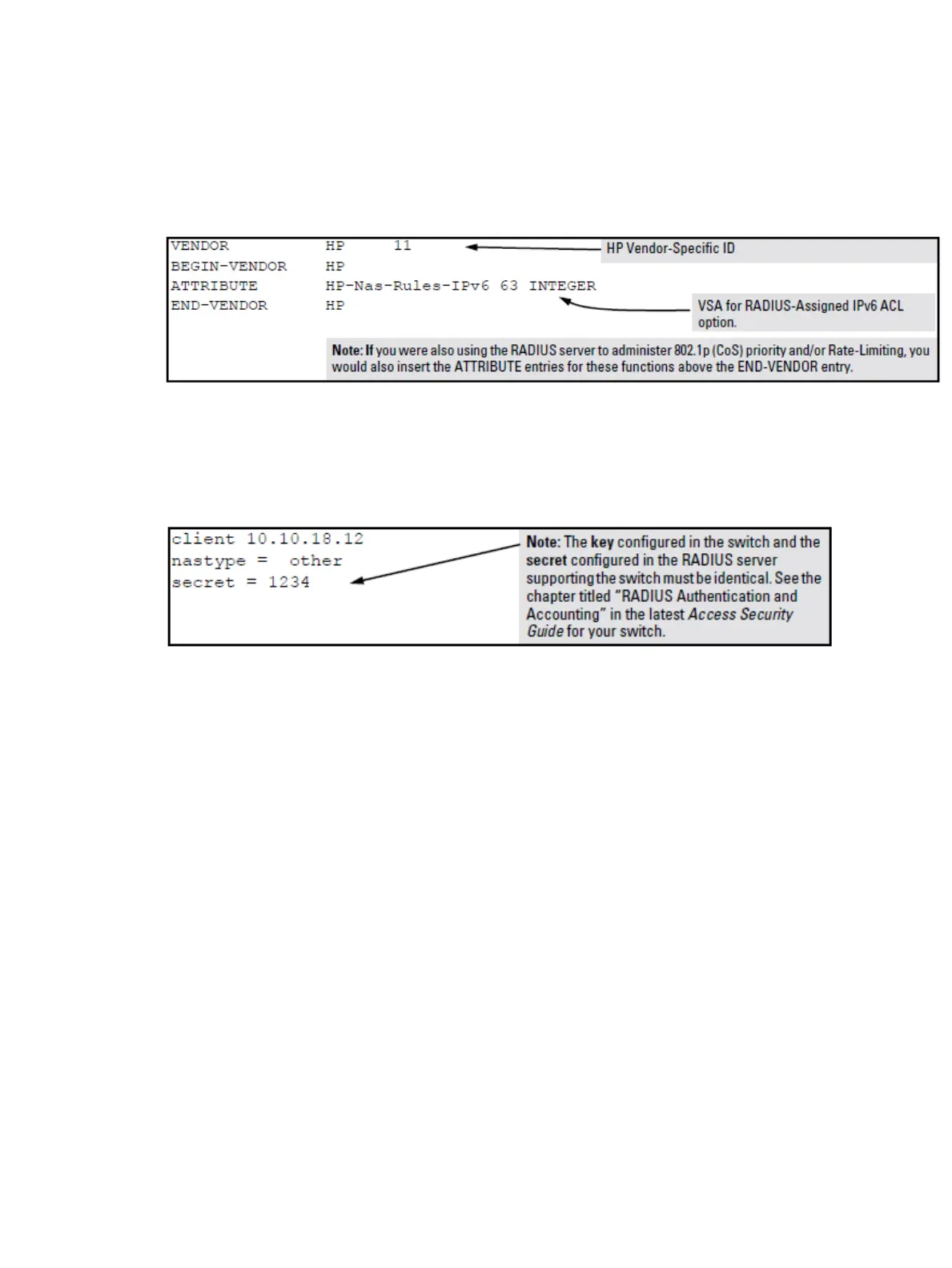

Figure 8 Example: Configuring the VSA for RADIUS-assigned IPv6 and IPv4 ACLs in a
FreeRADIUS server
2. Enter the switch IPv4 address, NAS type, and the key used in the FreeRADIUS clients.conf file.
For example, if the switch IP address is 10.10.10.125 and the key ("secret") is "1234", enter
the following in the server's clients.conf file:
Figure 9 Example of switch identity information for a freeRADIUS application
48 Updates for the HP Switch Software Access Security Guide

HP 2530 Specifications

General

Layer	Layer 2
Operating Temperature	32°F to 113°F (0°C to 45°C)
Model	HP 2530
Power over Ethernet (PoE)	PoE+
Management	Web interface, CLI, SNMP
Memory	128 MB flash
Input Voltage	100-240 VAC
Jumbo Frame Support	Yes
Operating Humidity	15% to 95% non-condensing
