HP 2530 User Manual

MAC Address During an authenticated session, shows the MAC
address of the authenticated client.
Access Policy Details:
COS Map Indicates the 802.1p priority assigned by the RADIUS
server for traffic inbound on the port from an authenticated
client. The field shows an eight-digit value where all digits
show the same, assigned 802.1p number. For example,
if the assigned 802.1p value is 5, then this field shows
55555555. If an 802.1p priority has not been assigned
by the RADIUS server, this field shows Not Defined.
Untagged VLAN VLAN ID (VID) of the untagged VLAN currently supporting
the authenticated connection.
Tagged VLANs VLAN IDs (VIDs) of any tagged VLANs currently supporting
the authenticated connection.
RADIUS ACL List Lists the explicit ACEs in the ACL assigned to the port for
the authenticated client. Includes the ACE "Hit Count"
(matches) for ACEs configured with the cnt option, see
“ACE syntax in RADIUS servers” (page 44). If a RADIUS
ACL for the authenticated client is not assigned to the port,
No Radius ACL List appears in this field.
In Limit Kbps Indicates the ingress rate-limit assigned by the RADIUS
server to the port for traffic inbound from the authenticated
client. If there is no ingress rate-limit assigned, then Not
Set appears in this field.
Out Limit Kbps Indicates the egress rate-limit assigned by the RADIUS
server to the port for traffic outbound to the authenticated
client. If there is no egress rate-limit assigned, then Not
Set appears in this field.

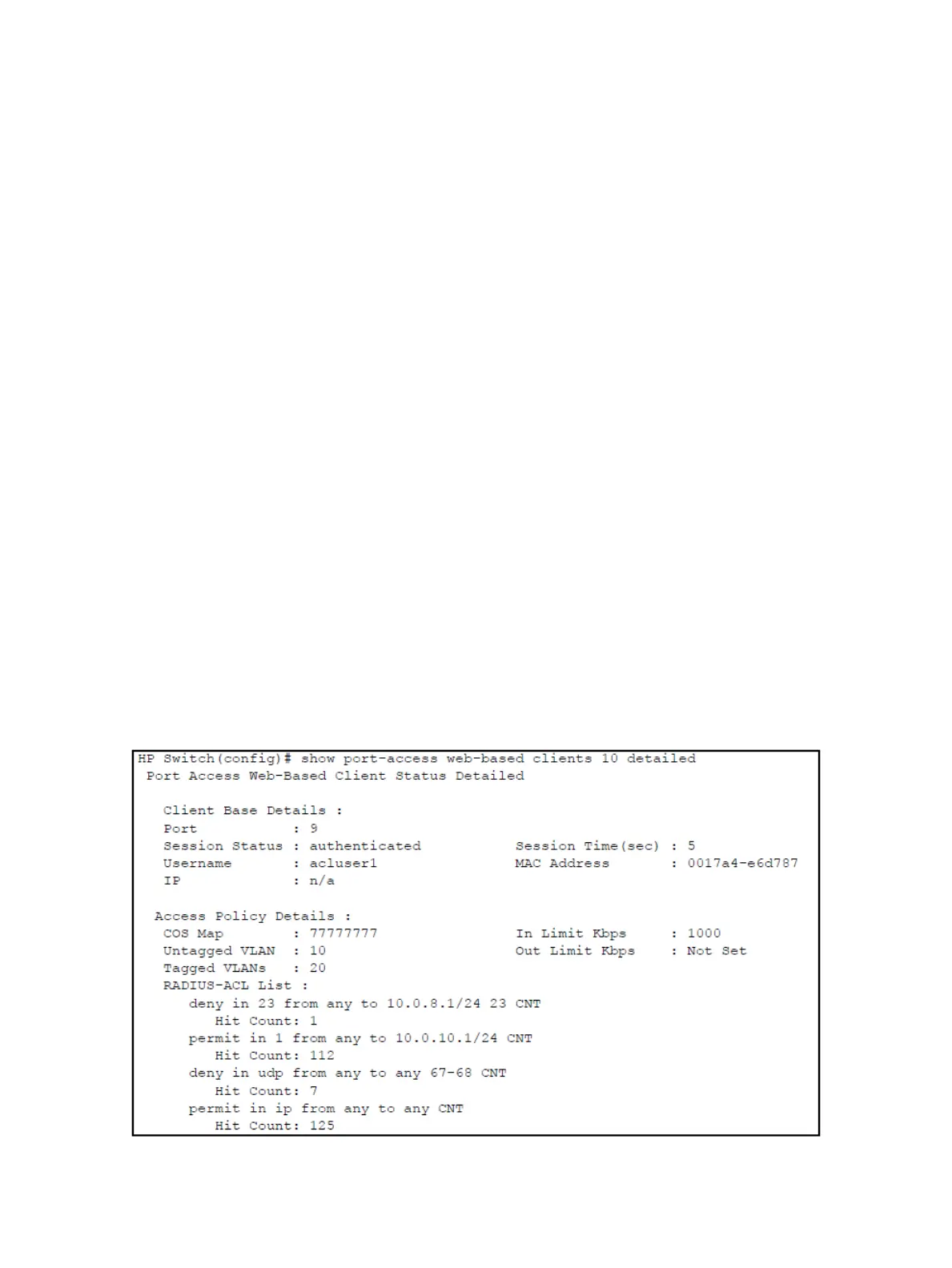

Figure 15 Example of output showing current RADIUS-applied features
54 Updates for the HP Switch Software Access Security Guide

HP 2530 Specifications

General

Layer	Layer 2
Operating Temperature	32°F to 113°F (0°C to 45°C)
Model	HP 2530
Power over Ethernet (PoE)	PoE+
Management	Web interface, CLI, SNMP
Memory	128 MB flash
Input Voltage	100-240 VAC
Jumbo Frame Support	Yes
Operating Humidity	15% to 95% non-condensing
