HP 32f - Page 15

11

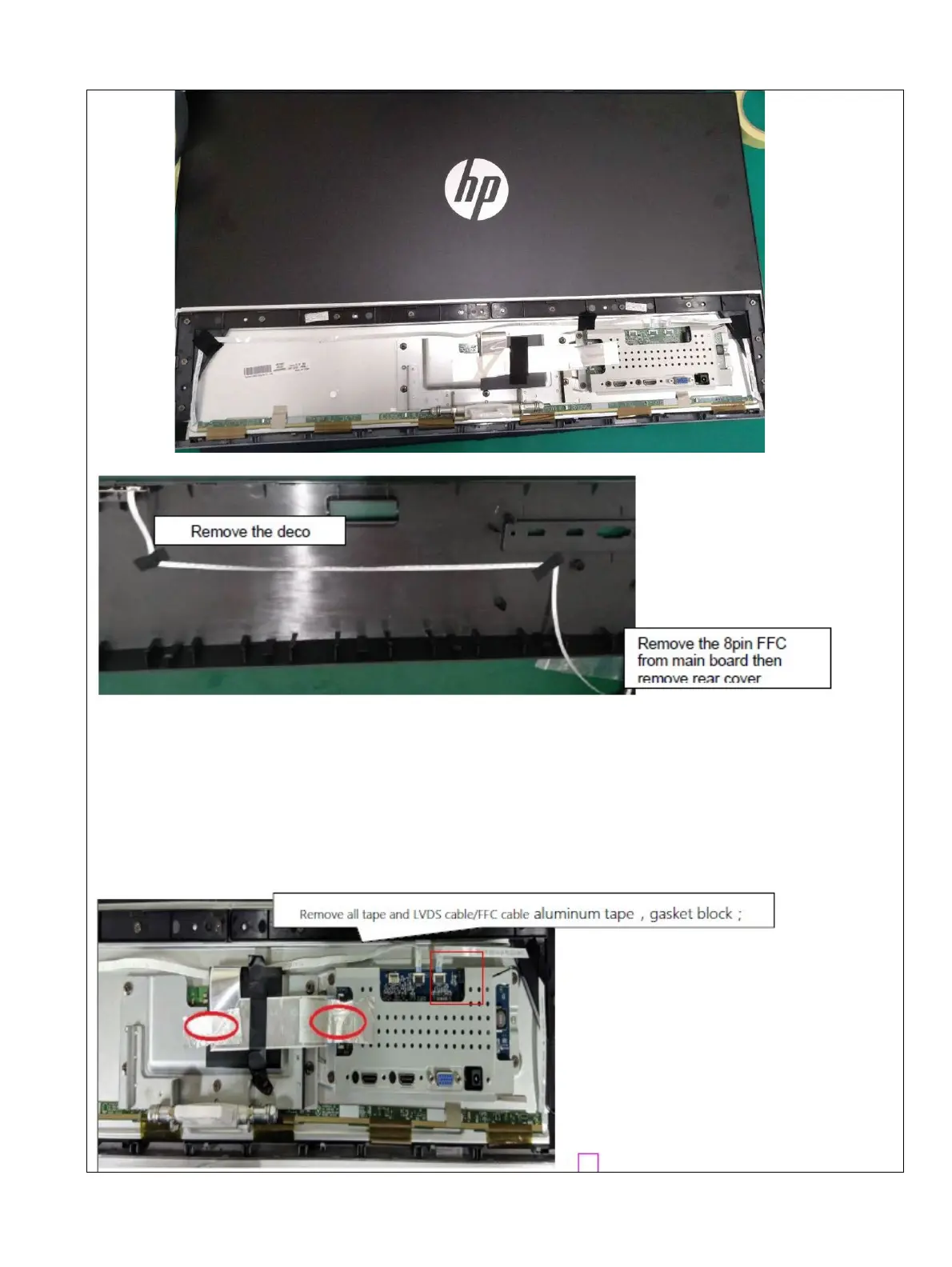

Step 3: To remove the shielding(contain the other material );
(3.1) Remove the acetate tapes covering the LVDS/ LED FFCs;
(3.2) Pull out the LVDS/ LED FFCs to separate the base assembly from the unit;
(3.3) Remove the four screws to separate shielding from CB and five screws to separate hinge
from CB；
(3.4) Dismantle the deco；
