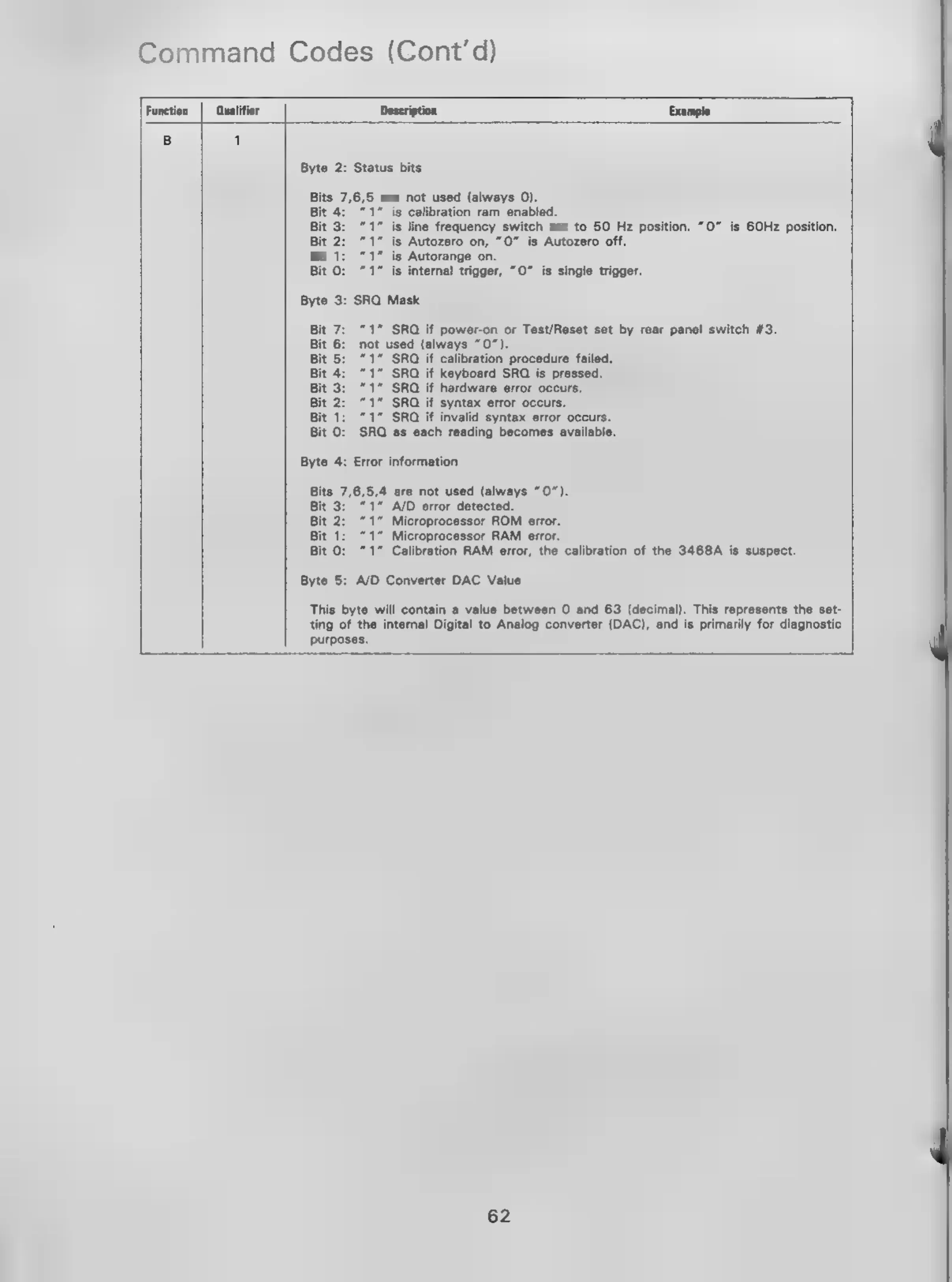

Command
Codes
(Cont'd)
Function
Qualifier
Description
Example
B
1
Byte
2:
Status
bits
Bits
7,6,5
are
not
used
(always
0).
oan
Bit
is
calibration
ram
enabled.
Bit
3:
“1”
is
line
frequency
switch
set
to
50
Hz
position.
“0”
is
60Hz
position.
Bit
2:
“1”
is
Autozero
on,
“O”
is
Autozero
off.
Bit
Bit
"4"
is
Autorange
on.
”4”
is
internal
trigger,
“O”
is
single
trigger.
Byte
3:
SRQ
Mask
Bit
“1”
SRQ
if
power-on
or
Test/Reset
set
by
rear
panel
switch
#3.
Bit
not
used
(always
“O").
Bit
“1”
SRO
if
calibration
procedure
failed.
Bit
“1”
SRQ
if
keyboard
SRQ
is
pressed.
Bit
"1"
SRQ
if
hardware
error
occurs.
Bit
“1”
SRQ
if
syntax
error
occurs.
Bit
“1”
SROQ
if
invalid
syntax
error
occurs.
Bit
0:
SRQ
as
each
reading
becomes
available,
Byte
4:
Error
information
Bits
7,6,5,4
are
not
used
(always
”0”).
Bit
“1”
AID
error
detected.
Bit
“1”
Microprocessor
ROM
error.
Bit
1:
*1”
Microprocessor
RAM
error.
Bit
*1”
Calibration
RAM
error,
the
calibration
of
the
3468A
is
suspect.
Byte
5:
A/D
Converter
DAC
Value
This
byte
will
contain
a
value
between
O
and
63
(decimal).
This
represents
the
set-
ting
of
the
internal
Digital
to
Analog
converter
(DAC),
and
is
primarily
for
diagnostic
purposes.
62
