Power Cords and Receptacles

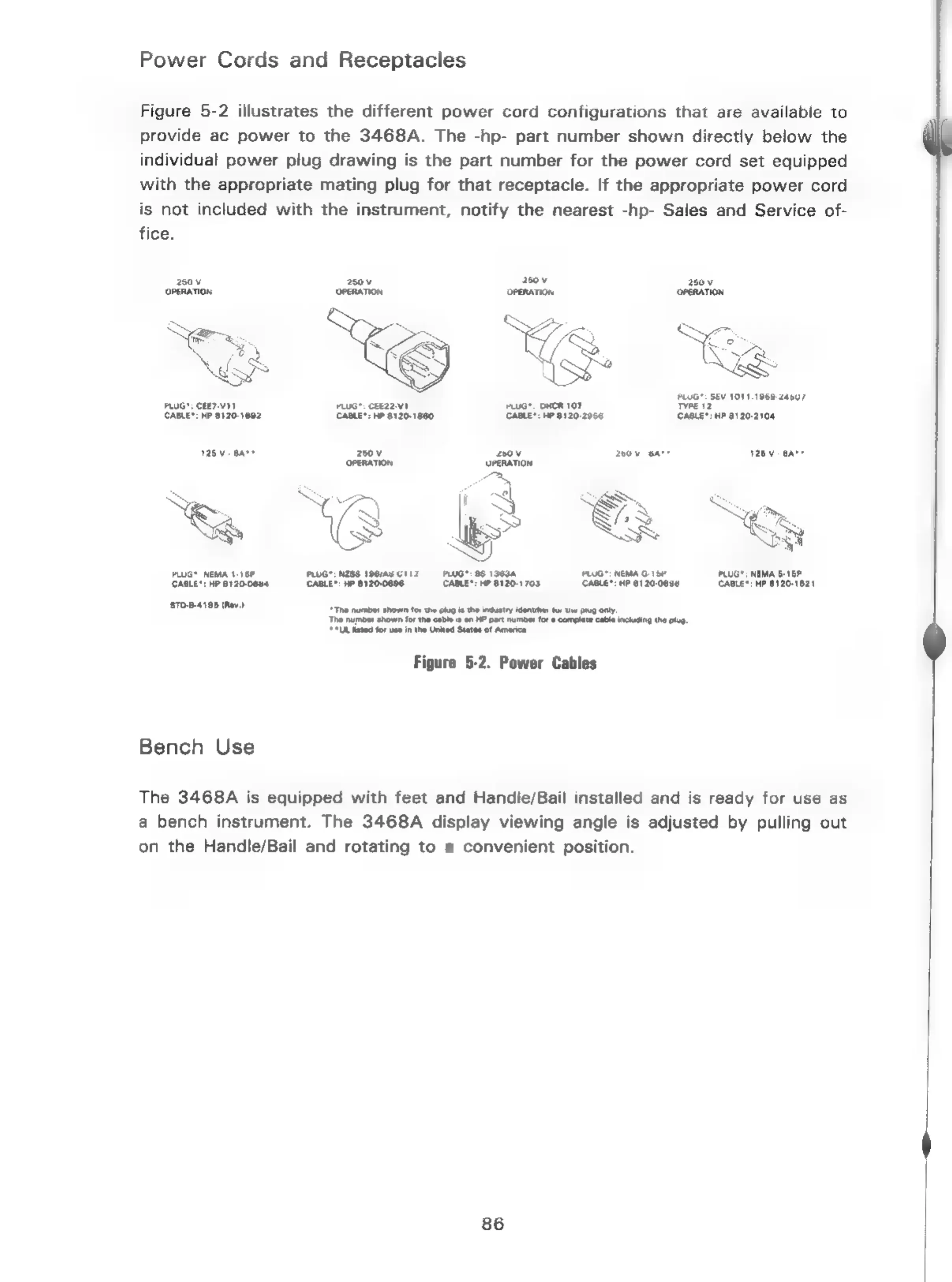

Figure 5-2 illustrates the different power cord configurations that are available to
provide ac power to the 3468A. The -hp- part number shown directly below the
individual power plug drawing is the part number for the power cord set equipped
with the appropriate mating plug for that receptacle. If the appropriate power cord
is not included with the instrument, notify the nearest -hp- Sales and Service of-
fice.
2s0v
‘OPERATION
Nery \
260
OPERATION
Wee
mug: SEV 1011.1988:24007
pues; catpvis rugs: ceeaa.v1 vas, oncR 107
CatesSne 8120-1602 Caste: Sar ot r080 CARs we endoczose Chete* HP 6120-2106
1a8v-aar> 200v nov move? re6v.eare
orton oréfarion
N&
7
ca
ee.
is
Ss
S
al
VS
patos naa 1160 russ: mass resis 2 rua: neu Gas ce: aa 6.167
Cimtietieeriocees — Cauuesrnr ars0-oene fhe atzor7os ——«Eametrnpeizogeue Canes" npernovezt
spelen ey The number shown for the plug is the industry identi: tor une plug only.
The number shown for the cable is an HP part number for & complete cable including the plug.
“UL tated for use in the United States of America
Figure
5-2.
Power
Cables
Bench Use
The 3468A is equipped with feet and Handle/Bail installed and is ready for use as
a bench instrument. The 3468A display viewing angle is adjusted by pulling out
on the Handle/Bail and rotating to a convenient position.
