Section V
I Connector I Fromflo I
LINE (J1) See Figure A12-2
X (J4) A16(15)
Y (J5) A16(19)
PEN LIFT (J6)
. A13(7)
VALID DATA (J7) A13(10)
+15v
EXTERNAL INTERFACE
J2
Pin Number
1-37
38
39
40
41
42
43 - 50
Title
From/To
-
'COMPUTER CALL'
'DATA READY'
-
,-
-
As J3
A6( 17)
A6( 18)
-
-
-
As 33

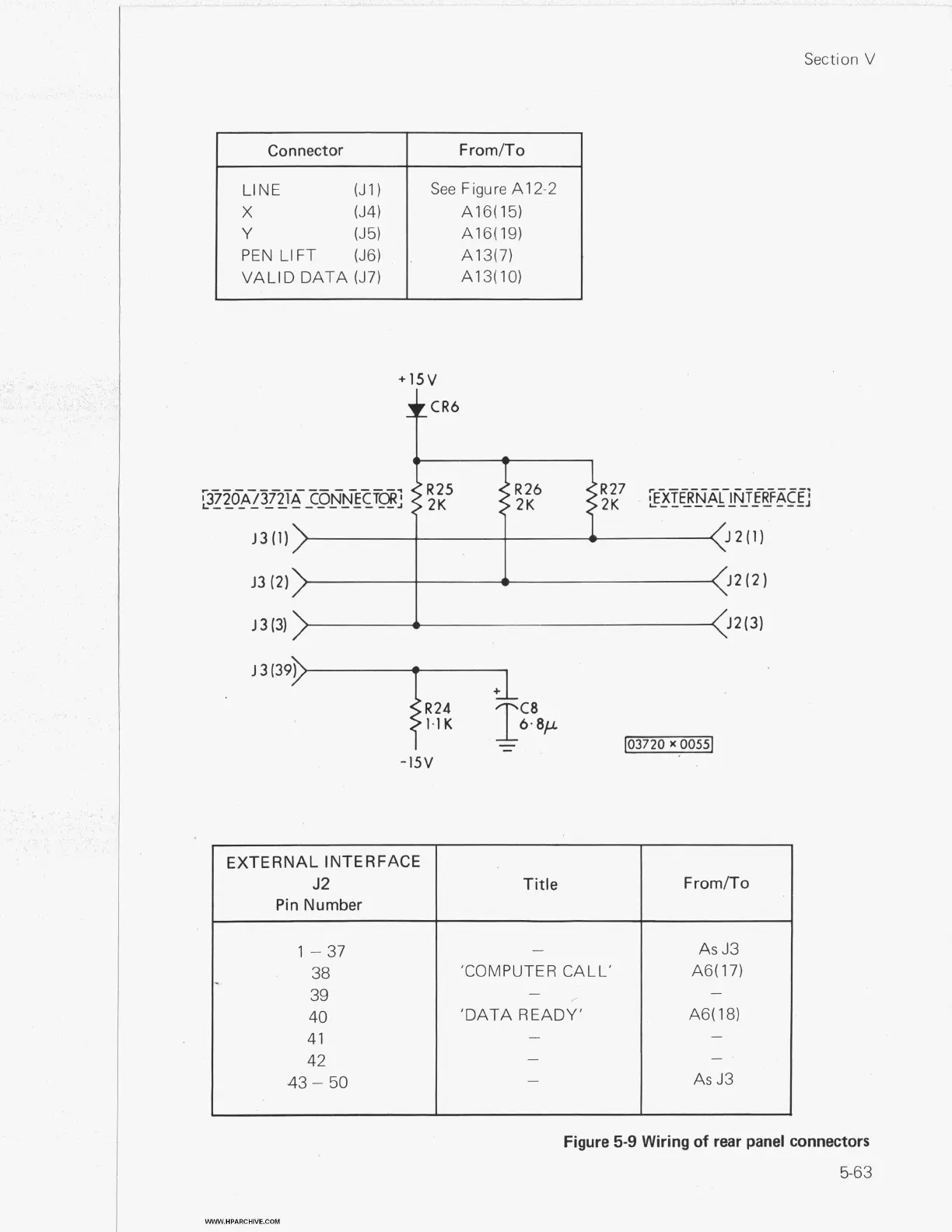

Figure 5-9 Wiring of rear panel connectors
5-63
