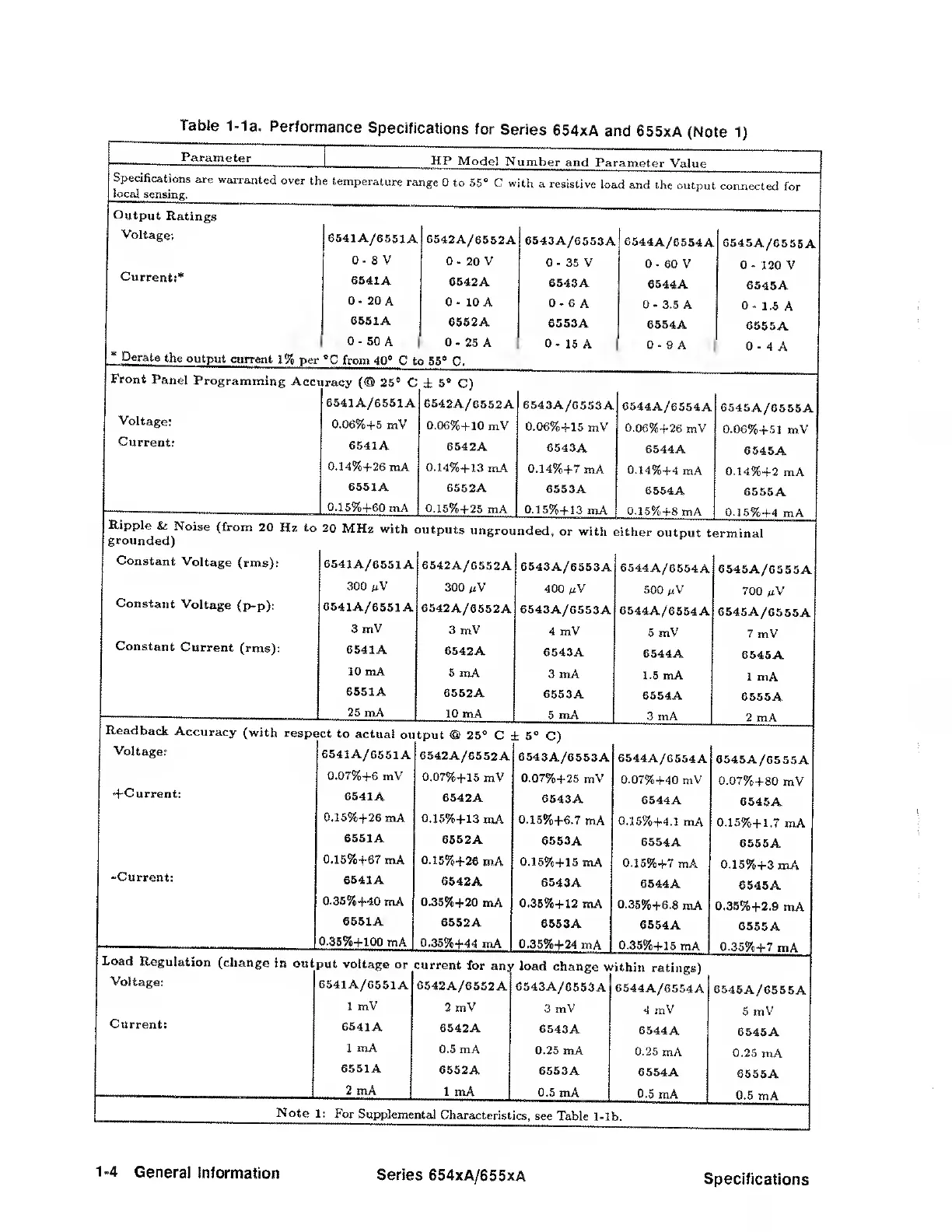

Table 1-1a. Performance Specifications for Series 654xA and 655xA (Note 1)
Parameter
HP Model N
umber and Parameter Value
Speafications are warranted over the temperature range 0 to 55° C with a resistive load and the output connected for
local sensing.
Output Ratings
Voltage:
6541A/6551A
6542A/6552A
6543A/6553A
6544A/6554A
6545A/6555A
0.8V
0- 20 V
0- 35 V
0 ■ 60 V
0- 120 V
Current:*
6541A
6542A
6543A
6S44A
6545A
0 - 20 A
0- 10 A
0 - 6 A
0- 3.5 A
0- 1.5 A
6551A
65S2A
6553A
0S54A
65S5A
0-50 A
0- 25 A
0- 15 A
0.9 A
0 - 4 A
* Derate the output current 1 % per
®C from 40° C to 55° C.
Front Panel Programming Acc
uracy (® 26° C
± 5“ C)
6541A/6551A
6542A/6552A
6543A/6553A
C544A/6554A
6545A/6555A
Voltage:
0.06%+5 mV
0.06%-|-10 mV
0.06%-i-15 mV
0.06%-f-26 mV
0.06%+51 mV
Current:
6541A
6542A
6543A
6544A
6545A
0.14%-f26inA
0.14%-f-13 mA
0.14%-(-7mA
0.14%-f4 mA
0.14%+2 mA
6551A
6552A
6553A
6554A
6555A
0.15%-f-60mA
0.15%-)-25 mA
0.15%-(-13 mA
0.15%4-8 mA
Ripple Noise (from 20 Hz to 20 MHz with
outputs ungrounded, or with either outout t
grounded)
Constant Voltage (rms):
6541A/6551A
6542A/6552A
6543A/6553A
6544A/6554A
6545A/6555A
300 mV
300 mV
400 mV
500 mV
700 mV
Constant Voltage (p-p):
6541A/6551A
6542A/6552A
6543A/6553A
6544A/6554A
6545A/6555A
3 mV
3 mV
4 mV
5 mV
7 mV
Constant Current (rms):
6541A
6542A
6543A
6544A
6545A
10 mA
5 mA
3 mA
1.5 mA
1 mA
6551A
6552A
6553A
6554A
6555A
25 mA
10 mA
5 mA
2 mA
Readback Accuracy (with respe
ct to actual output ® 25° C ± 5° C)
Voltage:
6541A/6551A
6542A/6552A
6543A/6553A
6544A/6554A
6545A/6555A
0.07%-i-6 mV
0.07%-|-15 mV
0.07%-f25 mV
0.07%+40 mV
0.07%-|-80 mV
+Current:
6541A
6542A
6543A
6544A
6545A
0.15%-}-26mA
0.15%-}-13mA
0.i5%-|-6.7 mA
0.15%-|-4.1 mA
0.15%-|-1.7 mA
6551A
6552A
6553A
6554A
6555A
0.15%+67mA
0.15%4-26 mA
0.15%+15 mA
0.15%+7 mA
0.15%+3mA
-Current:
6641A
6542A
6S43A
6S44A
6545A
0.35%+40 mA
0.35%+20 mA
0.35%-|-12 mA
0.35%+6.8 mA
0.35%+2.9 mA
6551A
6S52A
6553A
6554A
C555A
0.35%-l-100 mA
0.35%+44 mA
0.35%+24 mA
0.35%-l-15 mA
Load Regulation (change in out
put voltage or
current for any load change within ratings)
Voltage:
6541A/6551A
6542A/6552A
6543A/6553A
6544A/6554A
C545A/6555A
1 mV
2 mV
3 mV
4 mV
5 mV
Current:
6541A
6542A
6543A
6544A
6545A
1 mA
0.5 mA
0.25 mA
0.25 mA
0.25 mA
6551A
6552A
6553A
6554A
6555A
2 mA
1 mA
0.5 mA
0.5 mA
0.5 mA
Note 1: For Supplemental Characteristics, see Table 1-lb
1-4 General Information
Series 654xA/655xA
Specifications
