npii
wj
|m
iHH
BH
HIS
»Yd
n
OUTPUT
SAFETY
COVER
m
+
OUTPUT
BUS
BAR
B
ANALOG
CONNECTOR
m
OUTPUT
SIGNAL
GROUND
s
-
OUTPUT
BUS
BAR
8
REAR
KNOCKOUTS
1
-
LOCAL
SENSE
TERMINAL
9
BOTTOM
KNOCKOUT
B
+
LOCAL
SENSE
TERMINAL
m
LOCAL
SENSE
JUMPERS
A
B
C
INSERT
WIRES
{
FROM
22
AWG
TO
12
AWG
).
TIGHTEN
SCREWS.
INSERT
SCREWDRIVER
BLADE
IN
SLOT
AND
PRY
OUT.
BEND
ALONG
JOINT
AND
BREAK
OFF.

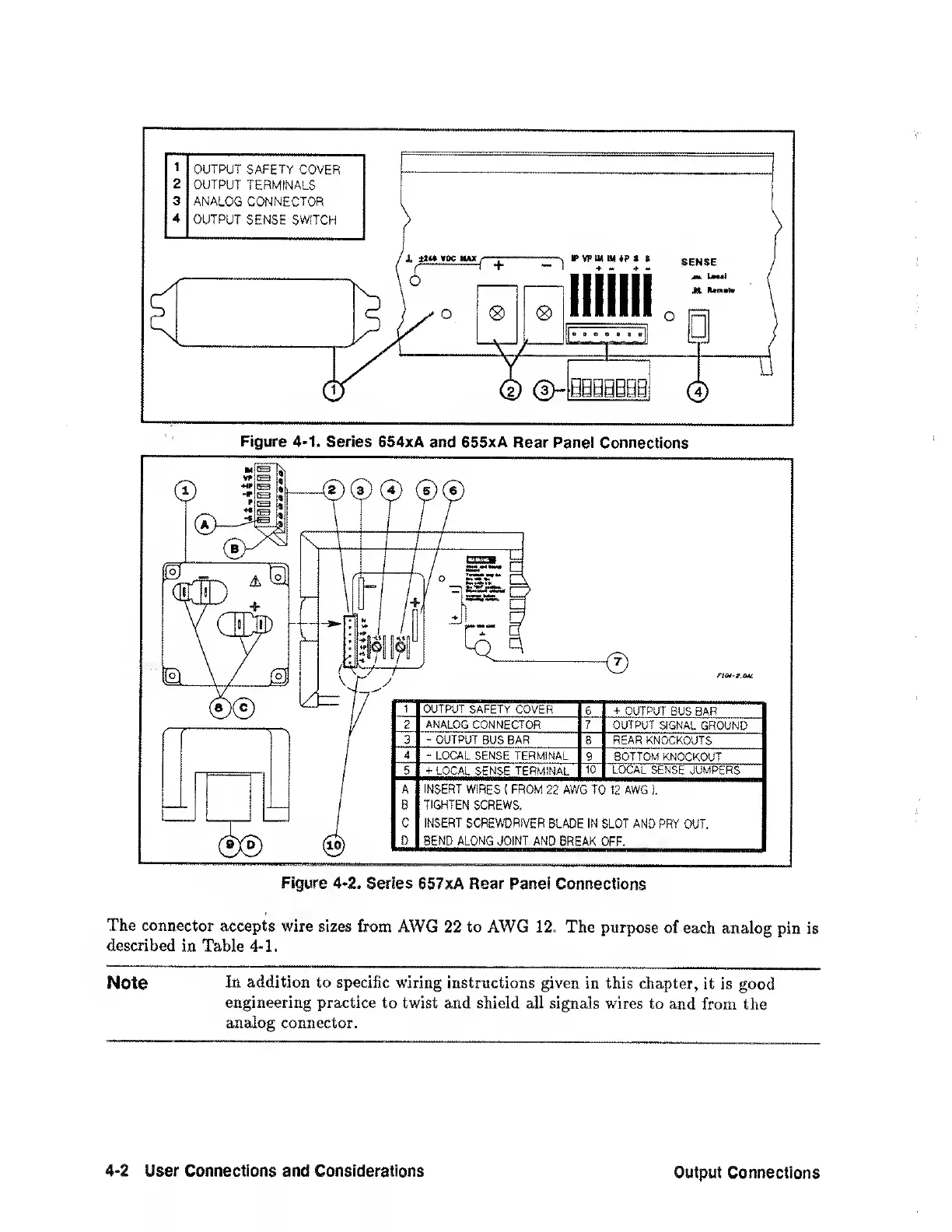

Figure
4-2.
Series
657xA
Rear
Panel
Connections
The
connector
accepts
wire
sizes
from
AWG
22
to
AWG
12.
The
purpose
of
each
analog
pin
is
described
in
Table
4-1.
Note
In
addition
to
specific
wiring
instructions
given
in
this
chapter,
it
is
good
engineering
practice
to
twist
and
shield
all
signals
wires
to
and
from
the
analog
connector.
4-2
User
Connections
and
Considerations
Output
Connections
