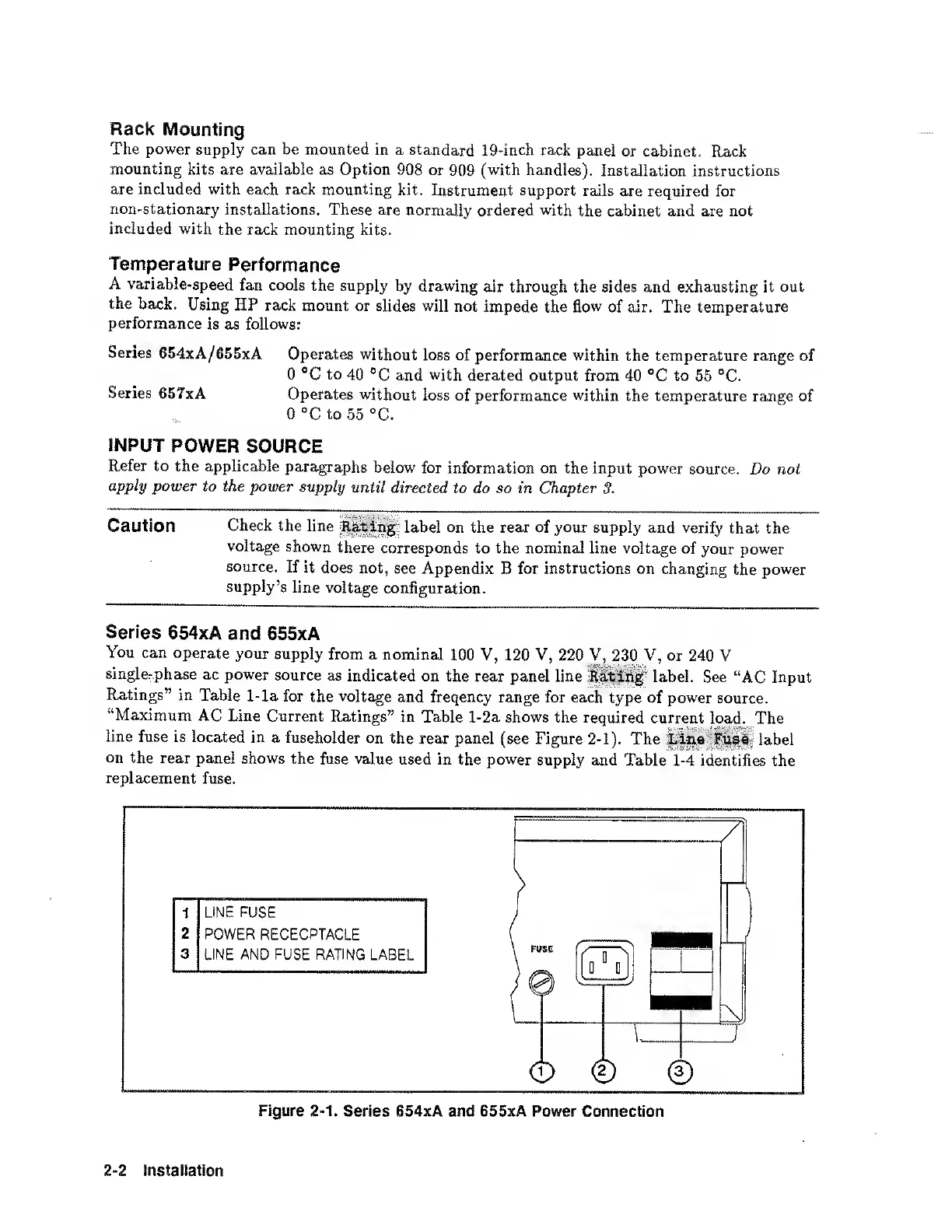

Page #23 background imageLoading...
Page #23 background image
Rack
Mounting
The
power
supply
can
be
mounted
in
a
standard
19-inch
rack
panel
or
cabinet.
Rack
mounting
kits
are
available
as
Option
908
or
909
(with
handies).
Installation
instructions
are
included
with
each
rack
mounting
kit.
Instrument
support
rails
are
required
for
non-stationary
installations.
These
are
normally
ordered
with
the
cabinet
and
are
not
included
with
the
rack
mounting
kits.
Temperature
Performance
A
variable-speed
fan
cools
the
supply
by
drawing
air
through
the
sides
and
exhausting
it
out
the
back.
Using
HP
rack
mount
or
slides
will
not
impede
the
flow
of
air.
The
temperature
performance
is
as
follows:
Series
654xA/655xA
Operates
without
loss
of
performance
within
the
temperature
range
of
0
°C
to
40
°C
and
with
derated
output
from
40
°C
to
55
®C.
Series
657xA
Operates
without
loss
of
performance
within
the
temperature
range
of
0“Cto
55
°C.
INPUT
POWER
SOURCE
Refer
to
the
applicable
paragraphs
below
for
information
on
the
input
power
source.
Do
not
apply
power
to
the
power
supply
until
directed
to
do
so
in
Chapter
3.
CdUtion
Check
the
line
Rating
label
on
the
rear
of
your
supply
and
verify
that
the
voltage
shown
there
corresponds
to
the
nominal
line
voltage
of
your
power
source.
If
it
does
not,
see
Appendix
B
for
instructions
on
changing
the
power
supply’s
line
voltage
configuration.
Series
654xA
and
655xA
You
can
operate
your
supply
from
a
nominal
100
V,
120
V,
220
230
V,
or
240
V
single^^phase
ac
power
source
as
indicated
on
the
rear
panel
line
filing-
label.
See
“AC
Input
Ratings”
in
Table
1-la
for
the
voltage
and
freqency
range
for
each
type
of
power
source.
“Maximum
AC
Line
Current
Ratings”
in
Table
l-2a
shows
the
required
current
load.
The
line
fuse
is
located
in
a
fuseholder
on
the
rear
panel
(see
Figure
2-1).
The
j^iielabel
on
the
rear
panel
shows
the
fuse
value
used
in
the
power
supply
and
Table
1-4
identifies
the
replacement
fuse.
Figure
2-1.
Series
654xA
and
655xA
Power
Connection
2-2
Installation
