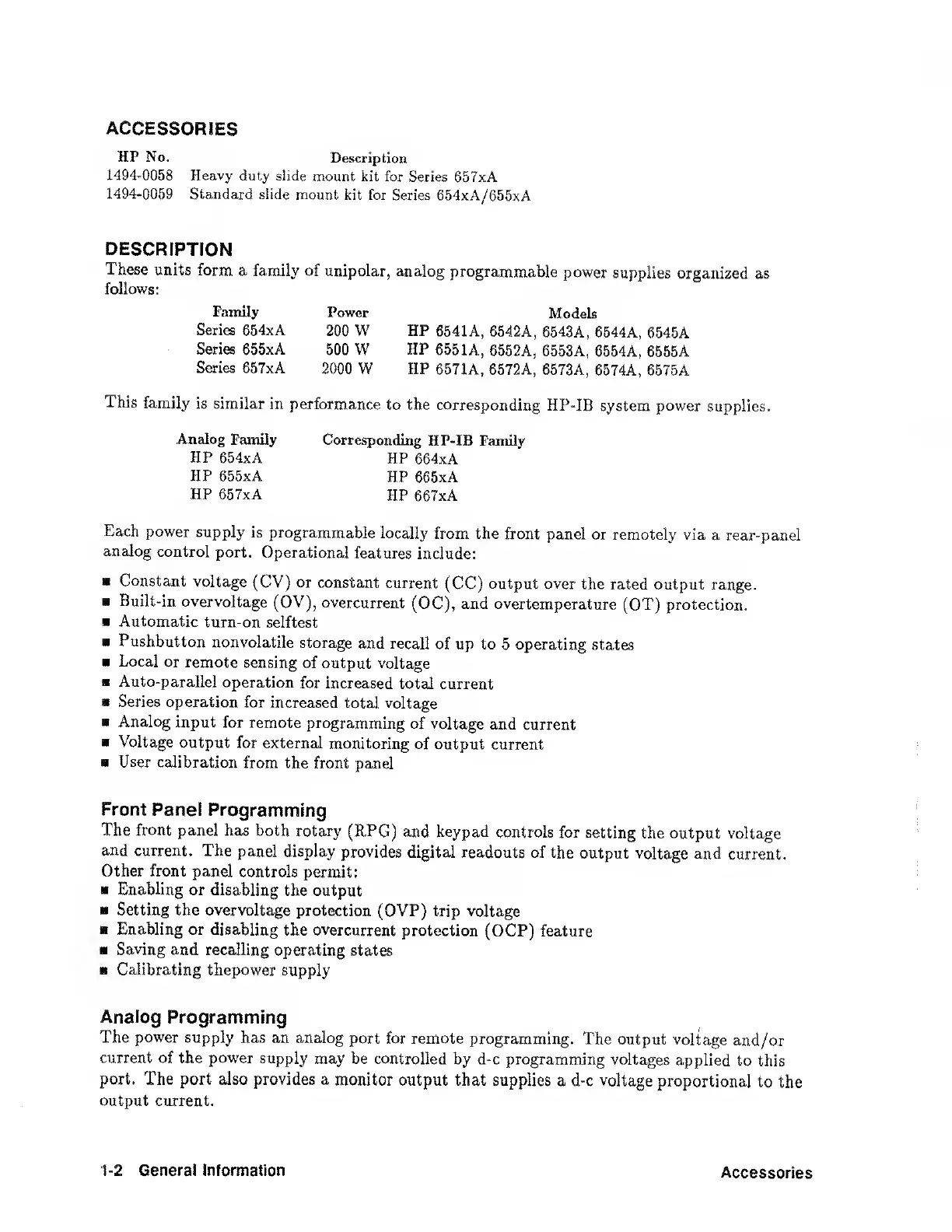

ACCESSORIES
HP No. Description
1494-0058 Heavy duty slide mount kit for Series 657xA
1494-0059 Standard slide mount kit for Series 654xA/655xA
DESCRIPTION
These units form a family of unipolar, analog programmable power supplies organized as
follows:
Family
Series 654xA
Series 655xA
Series 657xA
Power Models
200 W HP 6541A, 6542A, 6543A, 6544A, 6545A
500 W HP 6551A, 6552A, 6553A, 6554A, 6555A
2000 W HP 6571A, 6572A, 6573A, 6574A, 6575A
This family is similar in performance to the corresponding HP-IB system power supplies.
Analog Family Corresponding HP-IB Family
HP 654xA HP 664xA
HP 655xA HP 665xA
HP 657xA HP 667xA
Each power supply is programmable locally from the front panel or remotely via a rear-panel
analog control port. Operational features include:
■ Constant voltage (CV) or constant current (CC) output over the rated output range.
■ Built-in overvoltage (OV), overcurrent (OC), and overtemperature (OT) protection.
■ Automatic turn-on selftest
■ Pushbutton nonvolatile storage and recall of up to 5 operating states
■ Local or remote sensing of output voltage
■ Auto-parallel operation for increased total current
m Series operation for increased total voltage
■ Analog input for remote programming of voltage and current
■ Voltage output for external monitoring of output current
■ User calibration from the front panel
Front Panel Programming
The front panel has both rotary (RPG) and keypad controls for setting the output voltage
and current. The panel display provides digital readouts of the output voltage and current.
Other front patnel controls permit:
■ Enabling or disabling the output
■ Setting the overvoltage protection (OVP) trip voltage
m Enabling or disabling the overcurrent protection (OCP) feature
■ Saving and recalling operating states
■ Calibrating thepower supply
Analog Programming
The power supply has an analog port for remote programming. The output voltage and/or
current of the power supply may be controlled by d-c programming voltages applied to this
port. The port also provides a monitor output that supplies a d-c voltage proportional to the
output current.
1-2 General Information
