HP 654 A Series User Manual

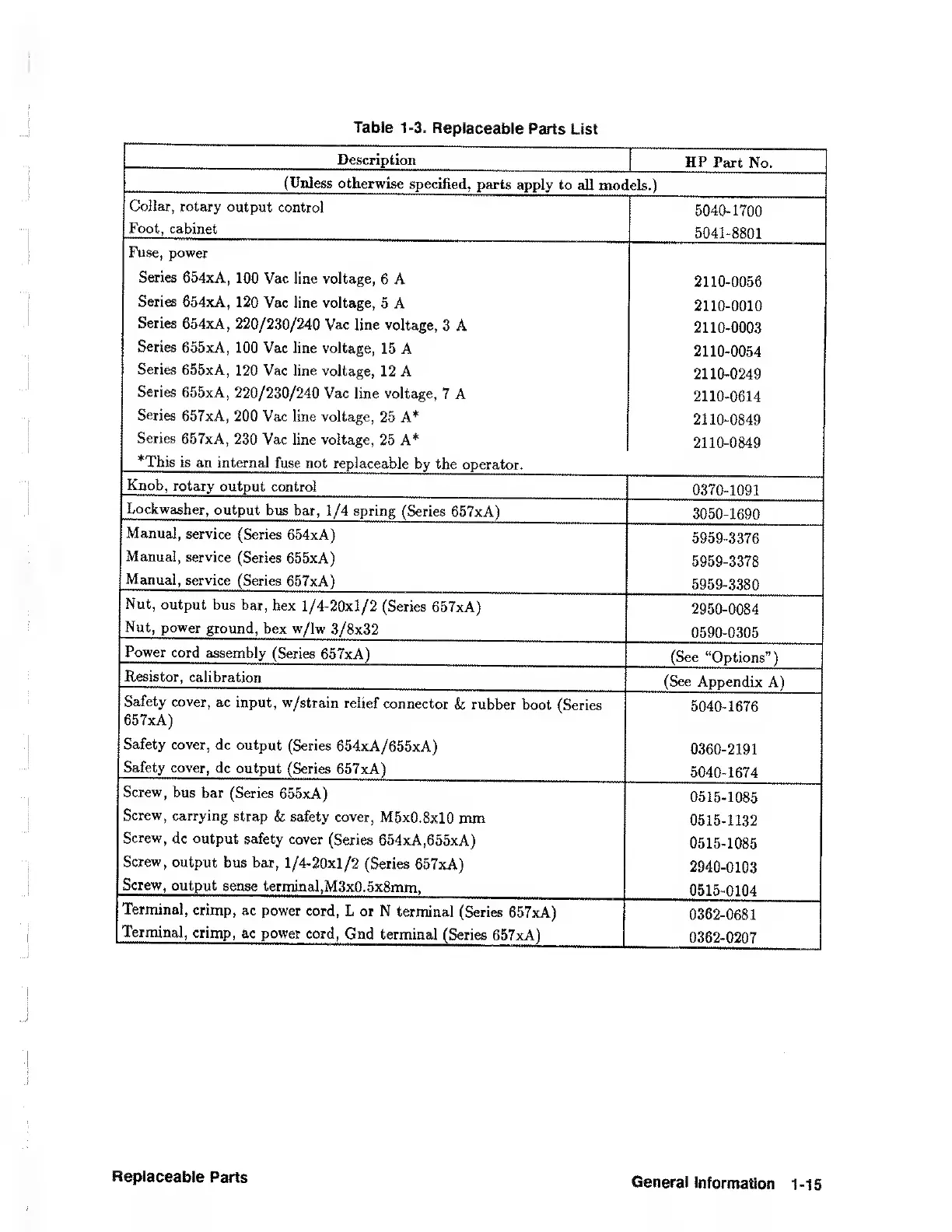

Table 1-3. Replaceable Parts List
Description
HP Part No.
(Unless otherwise specified, parts apply to all models.)
Collar, rotary output control
5040-1700
Foot, cabinet
5041-8801
Fuse, power
Series 654xA, 100 Vac line voltage, 6 A
2110-0056
Series 654xA, 120 Vac line voltage, 5 A
2110-0010
Series 654xA, 220/230/240 Vac line voltage, 3 A
2110-0003
Series 655xA, 100 Vac line voltage, 15 A
2110-0054
Seri^ 655xA, 120 Vac line voltage, 12 A
2110-0249
Series 655xA, 220/230/240 Vac line voltage, 7 A
2110-0614
Series 657xA, 200 Vac line voltage, 25 A*
2110-0849
Seri^ 657xA, 230 Vac line voltage, 25 A*
2110-0849
*This is an internal fuse not replaceable by the operator.
Knob, rotary output control
0370-1091
Lockwasher, output bus bar, 1/4 spring (Series 657xA)
3050-1690
Manual, service (Series 654xA)
5959-3376
Manual, service (Series 655xA)
5959-3378
Manual, service (Series 657xA)
5959-3380
Nut, output bus bar, hex 1/4-20x1/2 (Series 657xA)
2950-0084
Nut, power ground, hex w/lw 3/8x32
0590-0305
Power cord assembly (Series 657xA)
(See “Options”)
Resistor, calibration
(See Appendix A)
Safety cover, ac input, w/strain relief connector k rubber boot (Series
5040-1676
657xA)
Safety cover, dc output (Series 654xA/655xA)
0360-2191
Safety cover, dc output (Series 657xA)
5040-1674
Screw, bus bar (Series 655xA)
0515-1085
Screw, carrying strap k safety cover, M5x0.8xl0 mm
0515-1132
Screw, dc output safety cover (Series 654xA,655xA)
0515-1085
Screw, output bus bar, 1/4-20x1/2 (Series 657xA)
2940-0103
Screw, output sense terminal,M3x0.5x8mm,
0515-0104
Terminal, crimp, ac power cord, L or N terminal (Series 657xA)
0362-0681
Terminal, crimp, ac power cord, Gnd terminal (Series 657xA)
0362-0207
Replaceable Parts
General Information 1-15
