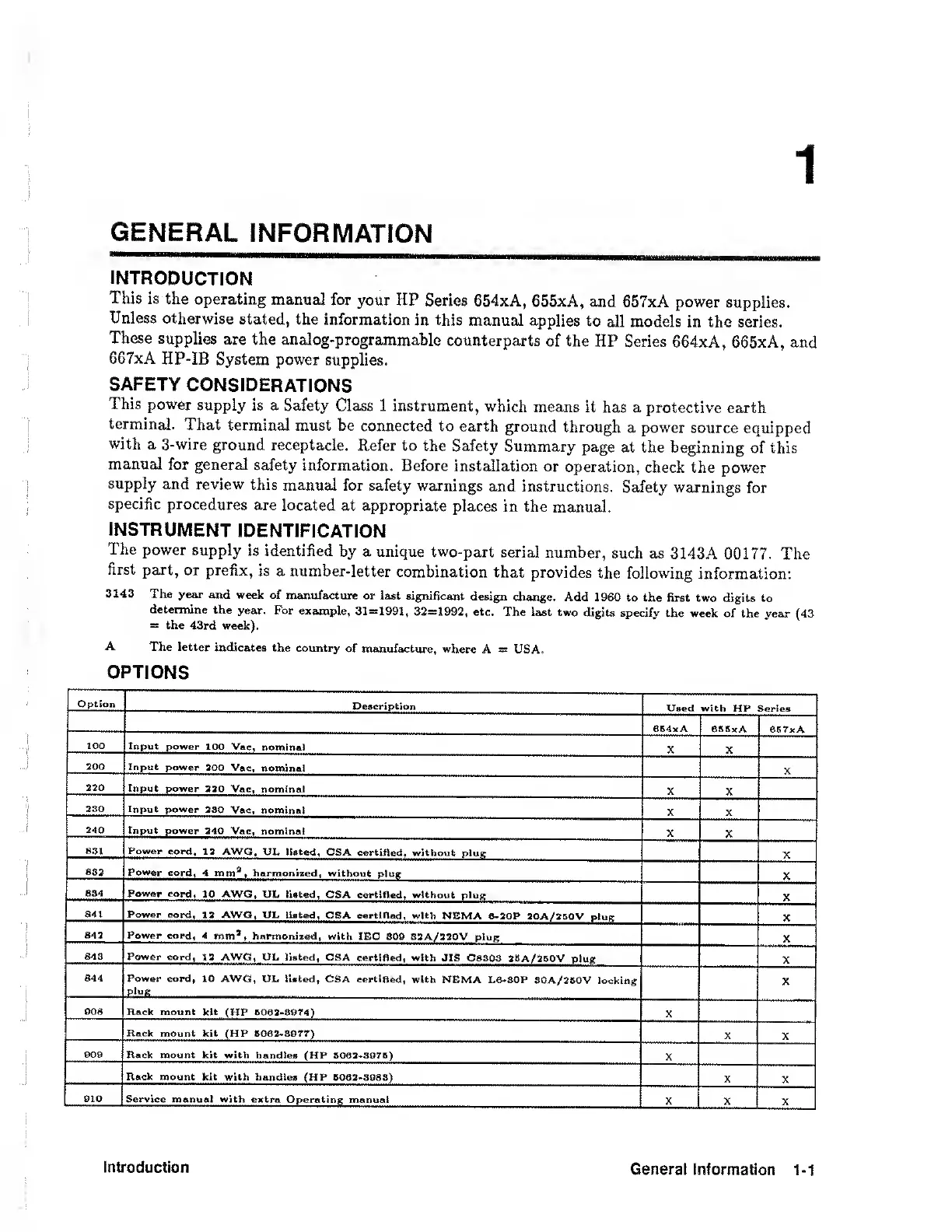

GENERAL INFORMATION
INTRODUCTION
This is the operating manual for your HP Series 654xA, 655xA, and 657xA power supplies.
Unless otherwise stated, the information in this manual applies to all models in the series.
These supplies are the analog-programmable counterparts of the HP Series 664xA, 665xA, and
667xA HP-IB System power supplies.
SAFETY CONSIDERATIONS
This power supply is a Safety Class 1 instrument, which means it has a protective earth
terminal. That terminal must be connected to earth ground through a power source equipped
with a 3-wire ground receptacle. Refer to the Safety Summary page at the beginning of this
manual for general safety information. Before installation or operation, check the power
supply and review this manual for safety warnings and instructions. Safety warnings for
specific procedures are located at appropriate places in the manual.
INSTRUMENT IDENTIFICATION
The power supply is identified by a unique two-part serial number, such as 3143A 00177. The
first part, or prefix, is a number-letter combination that provides the following information:
3143 The year and week of manufacture or last significant design change. Add 1960 to the hrst two digits to
determine the year. For example, 31=1991, 32=1992, etc. The last two digits specify the week of the year (43
= the 43rd week).
A The letter indicates the coimtry of manufacture, where A = USA.
OPTIONS
Option
Description
Used with HP Series
e64xA
eSBxA
657xA
lOO
Input power 100 Vac, nominal
X X
200
input power 200 Vac, nominal
X
220
Input power 220 Vac, nominal
X
X
230
Input power 230 Vac, nominal
X X
240 Input power 240 Vac, nominal
X
X
831
Power cord, 12 AWQ, UL listed, CSA certified, without pluR
X
832
Power cord. 4 harmonized, without pIuR
X
8S4
Power cord. 10 AWQ, UL listed, CSA certifled, without pluR
X
841
Power cord, 13 AWG, UL listed, CSA certified, with NEMA e.30P 3OA/aB0V plur
X
842
Power cord, 4 mm^, harmonised, with lEC 809 S3A/230V pluR
X
843
Power cord, 13 AWQ, UL listed, CSA certified, with JIS C8S0S 3BA/3S0V ptuR
X
644
Power cord, 10 AWG, UL listed, CSA certified, with NEMA LO-SOP S0A/250V locking
plug
X
806 Rack mount kit (HP 6062-8974)
X
Rack mount kit (HP 5O62-S07T)
X
X
006
Rack mount kit with handles (HP 5062-8876)
X
Rack mount kit with handles (HP 6062-8983)
X
X
910
Service manual with extra Operating manual
X X
X
Introduction
General Information 1-1
