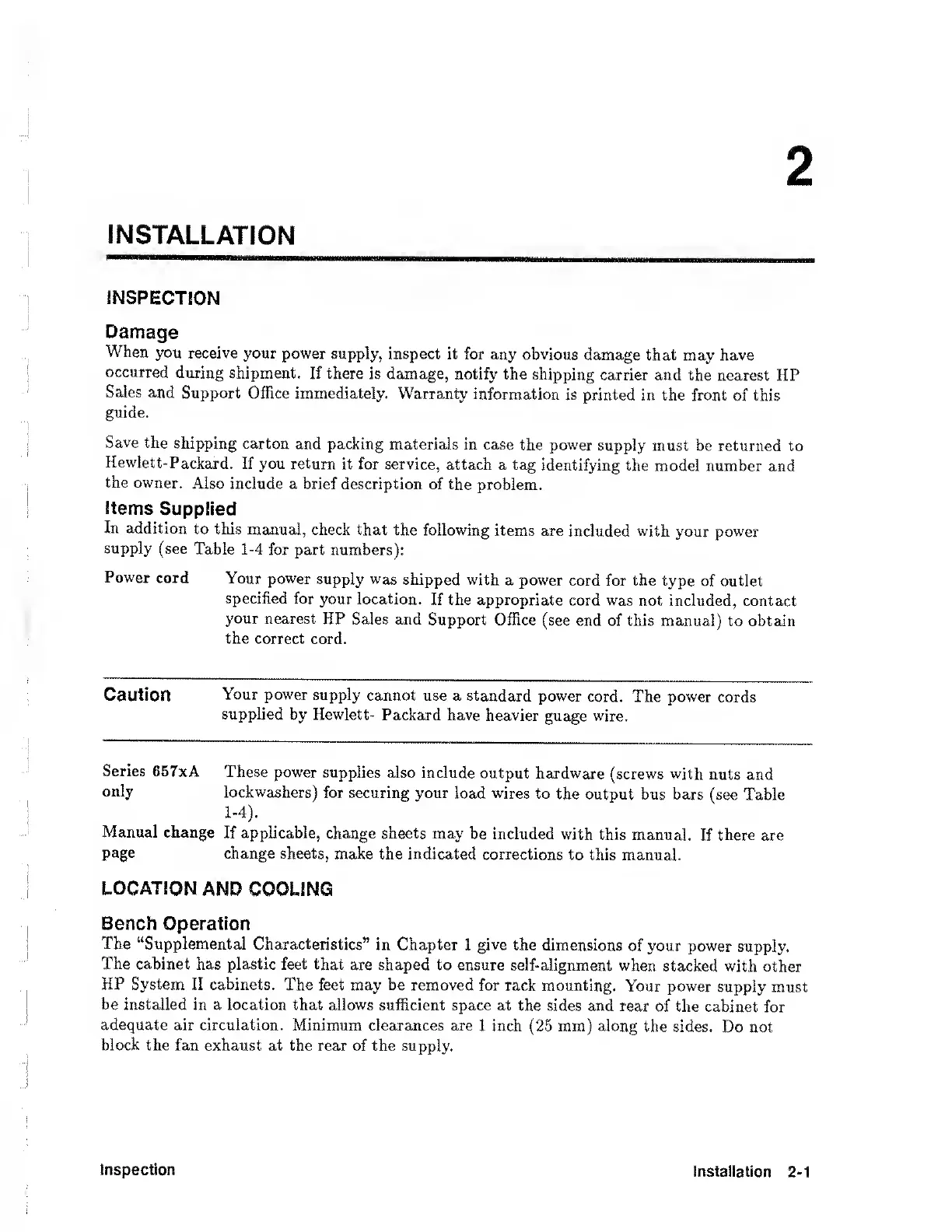

INSTALLATION
INSPECTION
Damage
When
you
receive
your
power
supply,
inspect
it
for
any
obvious
damage
that
may
have
occurred
during
shipment.
If
there
is
damage,
notify
the
shipping
carrier
and
the
nearest
HP
Sales
and
Support
Office
immediately.
Warranty
information
is
printed
in
the
front
of
this
guide.
Save
the
shipping
carton
and
packing
materials
in
case
the
power
supply
must
be
returned
to
Hewlett-Packard.
If
you
return
it
for
service,
attach
a
tag
identifying
the
model
number
and
the
owner.
Also
include
a
brief
description
of
the
problem.
Items
Supplied
In
addition
to
this
manual,
check
that
the
following
items
are
included
with
your
power
supply
(see
Table
1-4
for
part
numbers):
Power
cord
Your
power
supply
was
shipped
with
a
power
cord
for
the
type
of
outlet
specified
for
your
location.
If
the
appropriate
cord
was
not
included,
contact
your
nearest
HP
Sales
and
Support
Office
(see
end
of
this
manual)
to
obtain
the
correct
cord.
Caution
Your
power
supply
cannot
use
a
standard
power
cord.
The
power
cords
supplied
by
Hewlett-
Packard
have
heavier
guage
wire.
Series
657xA
These
power
supplies
also
include
output
hardware
(screws
with
nuts
and
only
lockwashers)
for
securing
your
load
wires
to
the
output
bus
bars
(see
Table
1-4).
Manual
change
If
applicable,
change
sheets
may
be
included
with
this
manual.
If
there
are
page
change
sheets,
make
the
indicated
corrections
to
this
manual.
LOCATION
AND
COOLING
Bench
Operation
The
“Supplemental
Characteristics”
in
Chapter
1
give
the
dimensions
of
your
power
supply.
The
cabinet
has
plastic
feet
that
are
shaped
to
ensure
self-alignment
when
stacked
with
other
HP
System
II
cabinets.
The
feet
may
be
removed
for
rack
mounting.
Your
power
supply
must
be
installed
in
a
location
that
allows
sufficient
space
at
the
sides
and
rear
of
the
cabinet
for
adequate
air
circulation.
Minimum
clearances
are
1
inch
(25
mm)
along
the
sides.
Do
not
block
the
fan
exhaust
at
the
rear
of
the
supply.
Inspection
Installation
2-1
