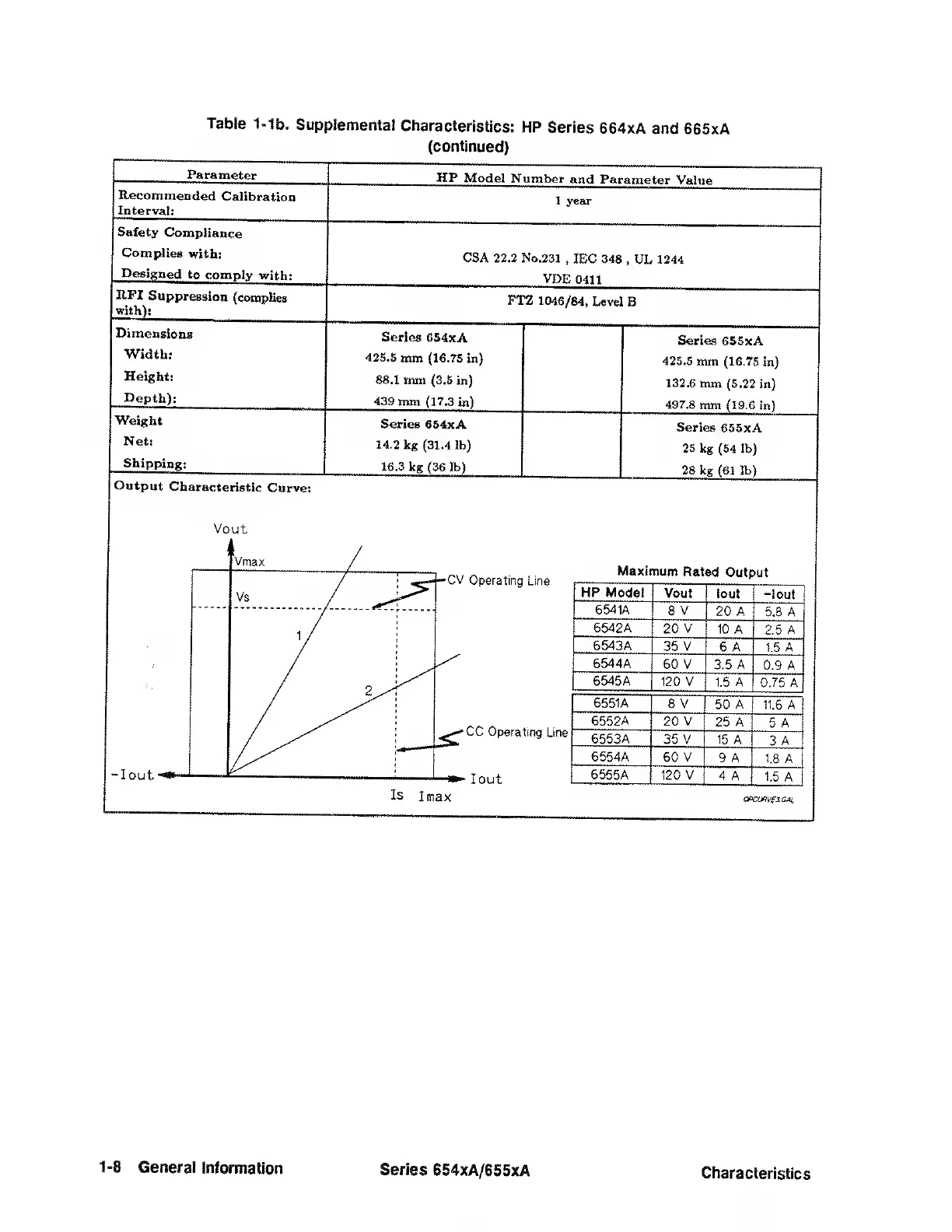

Table l-1b. Supplemental Characteristics: HP Series 664xA and 665xA
(continued)
_ Parameter _
Recommended Calibration
Interval:
Safety Compliance
Complies with:
Designed to comply with:
Eri Suppression (complies
with):
Dimensions
Width!
Height:
Depth):
Weight
Net:
Shipping:
Output Characteristic Curve:
HP Model Number and Parameter Value
1 ye^l^
CSA 22.2 No.231 , lEC 348 , UL 1244
VDE 0411
FTZ 1046/84, Level B
Series 6S4xA
425.5 m m (16.75 in)
88.1 m m (3.S in)
439 mm (17.3 in)
Series 654xA
14.2 k g (31.4 lb)
16.3 k g (36 lb)
Series 655xA
425.5 mm (16.75 in)
132.6 mm (5.22 in)
497.8 mm (19.6 in)
Series 655xA
25 kg (54 lb)
28 kg (61 lb)
'CV Operating Line
Maximum Rated Output
•CC Operating Line
HP Model
Vout
lout
6541A
8 V
20 A
6542A
20 V
10 A
6543A
35 V
6 A
6544A
60 V
3.5 A
6546A
120 V
1.5 A
6551A
8 V
50 A
6552A
20 V
25 A
6553A
35 V
15 A
6554A
60 V
9 A
6555A 120 V
4 A
-loui
5.8
2.5 ^
1.5 A
0,9 A
0.75 A
”11.6 A
5 A
3 A
1.8 A
1.5 A
