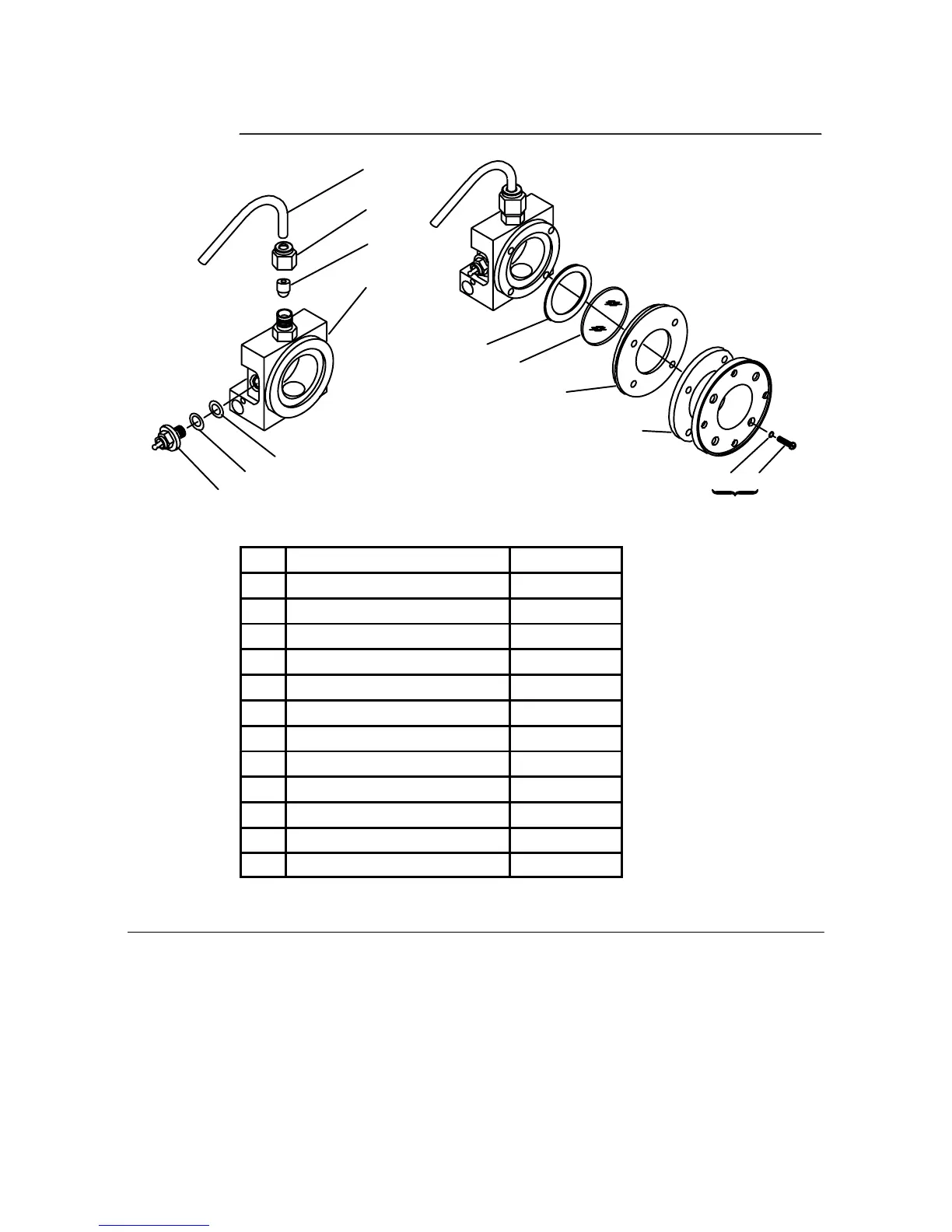

HP 6890 series User Manual

20
15
8
7
14
11
13
12
16
17
18
19
20 21
4 places
7 Nut, brass, ¼ in. 0100-0056
8 Ferrule, Vespel, ¼ in. ID 0100-1061
11 Glow plug 0854-0141
12 Spacer, ignitor 19256-20590
13 OĆring, Kalrez, ignitor 0905-1102
14 Weldment, block 19256-80560
15 Exit tube assembly 19256-20700
16 Gasket, head shield 19256-80040
17 Window, first heat shield 19256-80030
18 Disk, heat shield 19256-20580
19 Coupling, stainless steel 19256-20550
20 Lockwasher (4 required) 2190-0108
21 Screw, M3 x 12 (4 required) 0515-0911

HP 6890 series Specifications

General

Type	Gas Chromatograph
Column Oven Temperature Range	Ambient +4°C to 450°C
Autosampler Compatibility	Yes
Maximum Temperature Ramp Rate	120°C/min
Carrier Gas	Helium, Hydrogen, Nitrogen
Detector Options	FID, TCD, ECD, NPD, FPD
Inlet Options	Split/Splitless, PTV
Communication	RS-232
Power Requirements	50/60 Hz
Injection Ports	Up to 2
Carrier Gas Control	Electronic Pneumatics Control (EPC)
Weight	Approximately 55 kg
