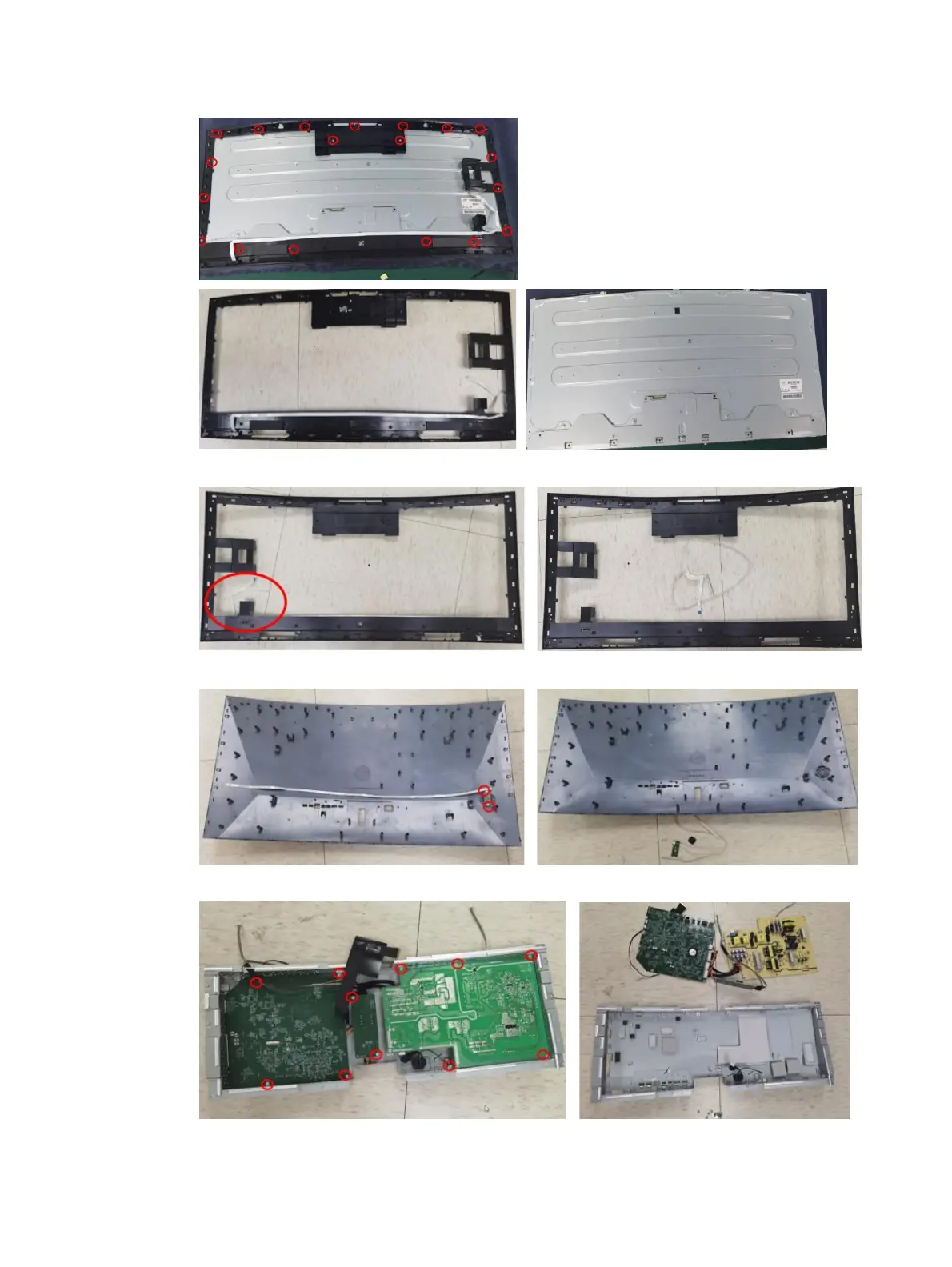

11) Remove Middle cover assembly From Display Head by unlocking 19pcs screws

12) Remove Power key BD From Middle Bezel

13) Remove Joystick Board From back cover by unlocking 2pcs screws

14) Remove Power Board, Driver Board and interface Board From bracket Assembly by unlocking 11pcs screws
