15
Power board
The power board part number is 755. 0AW02.0001, 755. 0AW02.0002,
755. 0AW02.0003.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.
Remove the power board:

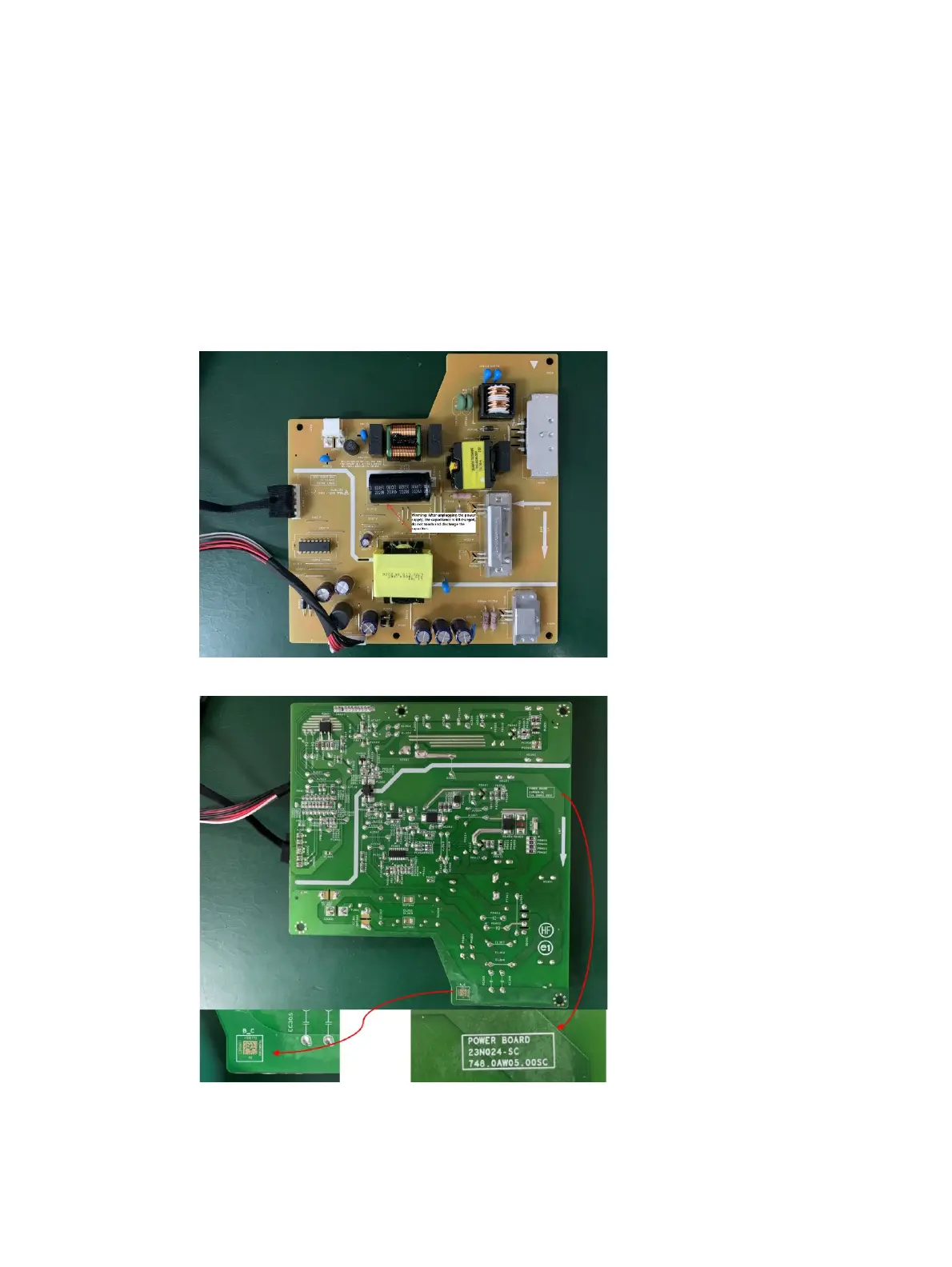

1) The HP Series 7 Pro 727pq power board connector position is as follows:
2) Locate the part number location on the board.
3) Pin solder with soldering iron and absorber.
NA
4) Lift the connector up and away from the PCB.
