17
2) Lift the HDMI connector from the PCB.
3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
4) Solder the new component.

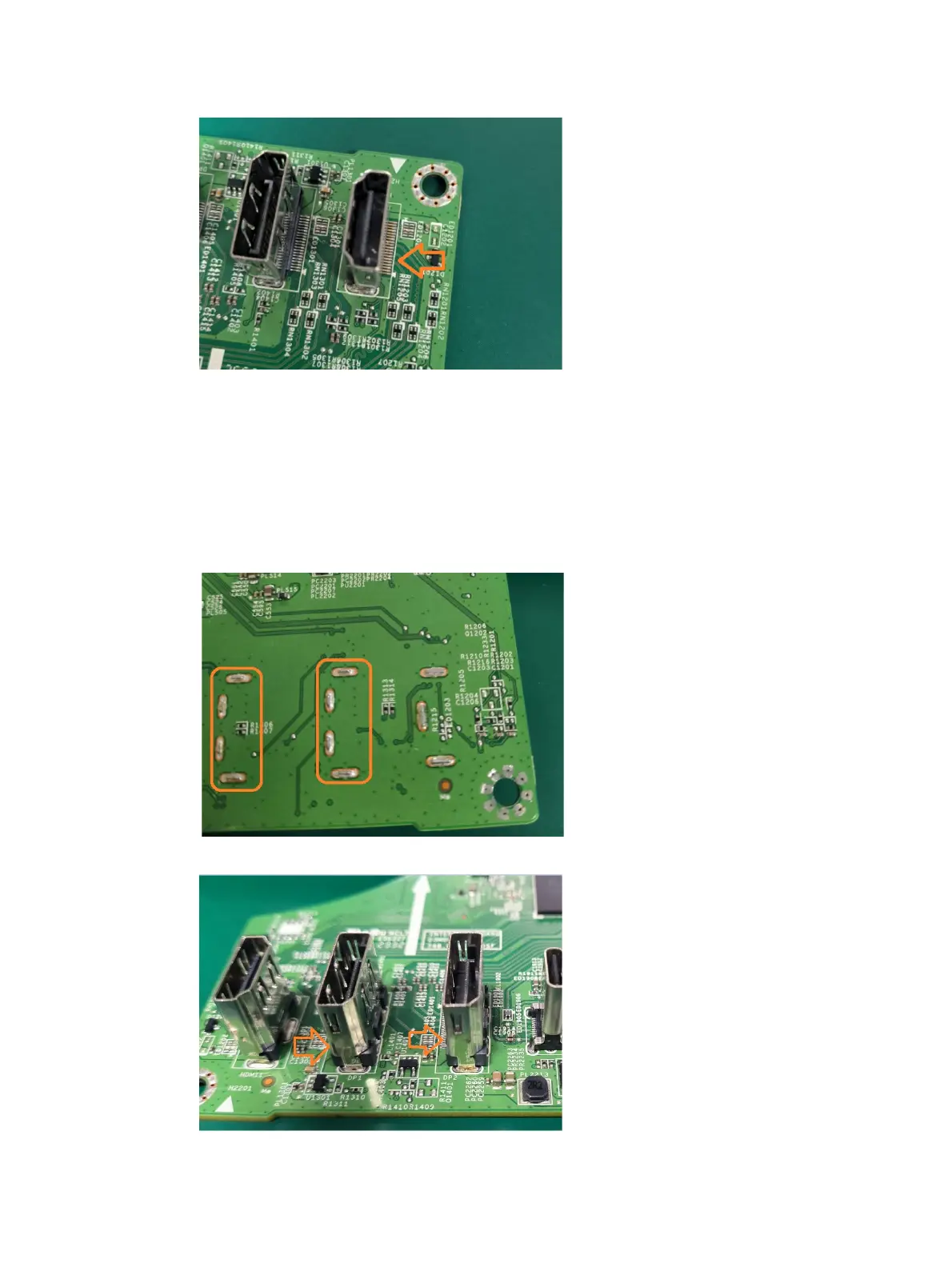

DP connector DP1 DP2
Repair the DP connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the DP connector from the PCB.
3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
