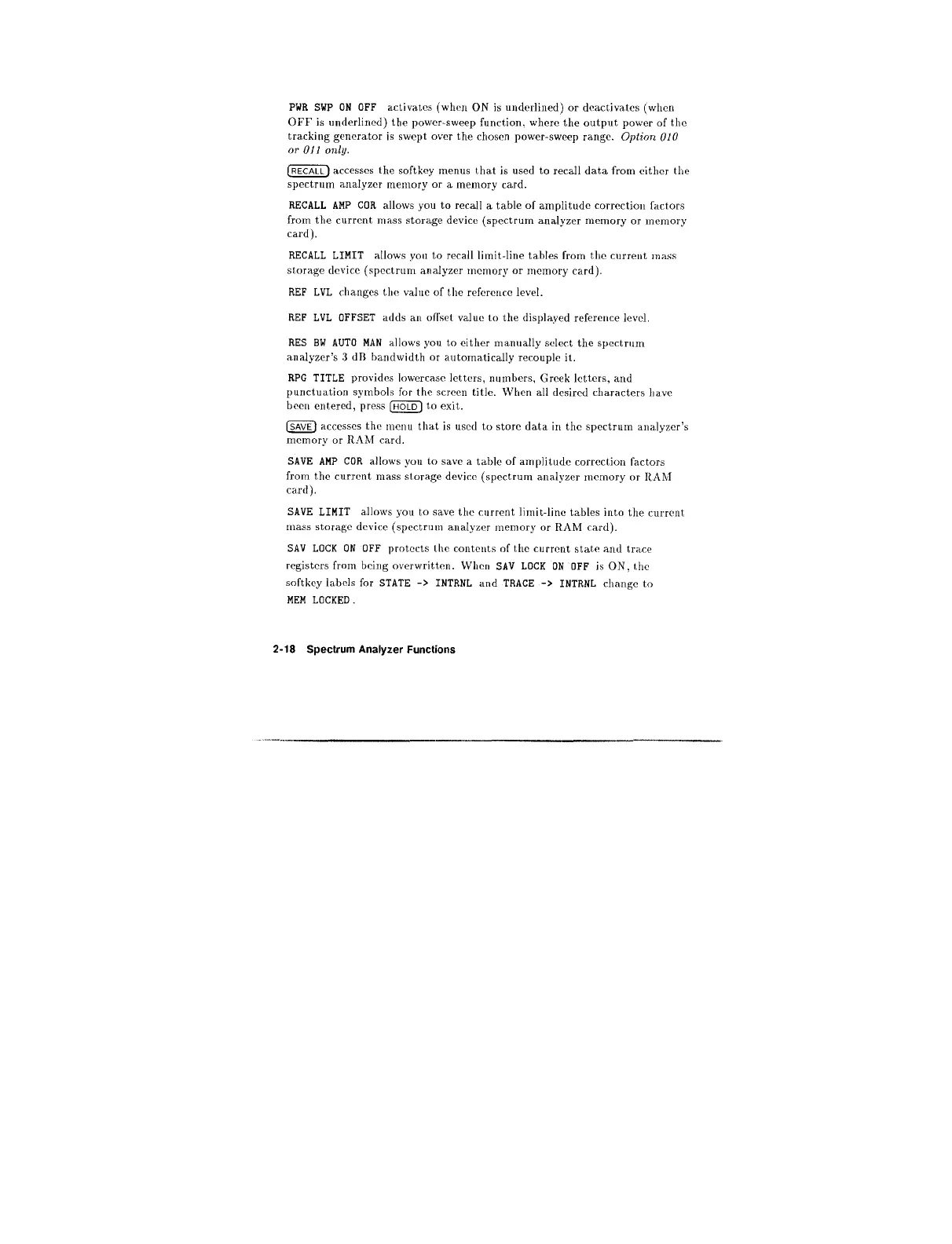

PWR SWP ON OFF activates (when ON is underlined) or deactivates(when
OFF is nnderlined)the power-sweep function, where theoutput power of the
tracking generator is swept over the chosen power-sweep range. Option 010
or 011 only.
[uncALt) accesses the softkey menus that is used to recall data from either the
spectrum analyzer mennors’ or a memory card.
RECALL AMP COR allows you to rec4l a table of amplitude correctioum factors
from the current mass storage device (spectmuun analyzer omemory or unemory
card).
RECALL LIMIT allow-s yomu to recall limit-line tables fronm time cnrmenmt unass
storage device (spectruumm analyzer nncnmorv or moemory card).
REF LVL changes tine valmue of time referenure level.
REF LVL OFFSET addsan otfset value to the displayed refereunce level.
RES NW AUTO MAN allow’s you to eitiner nuanmually select the spectrmmmn
analyzer’s 3 dfl handsvidth or autounatically mecouple it.
RPG TITLE provides lowercase letters, nnumbers, Greek letters, and
punctuation symbols for the screen title. When all desired characters luave
beemm entered,press ~ to exit.
accesses the ummenmu tlmat is used to store data in the spectrum annalyzer’s
memory or RAM card.
SAVE AMP COR allows yomu to save a table of amplitudecorrection factors
from the current nmass storage device (spectrum analyzer omemory or RAM
card).
SAVE LIMIT allosvs you to save tine cnnrrent linmit-line tables into the current
unass storage device (spectcunm analyzer unemory or RAM card).
SAW LOCK ON OFF protects the conteunts of time current state and trace
registers fronmm beimug overwritten. Wlnen SAW LOCK ON OFF is ON, the
softkey labels for STATE -> INTRNL and TRACE -> INTRNL cirange to
MEM LOCKED.
2-18 Spectrum Analyzer Functions
