Upgrading Your System
Removing all Terminators and Cables
Removing all Terminators and Cables
1. After powering down the workstation as described in the “Getting Started” chapter, unplug the power
cable from the back of the workstation. To avoid ESD damage to components, carefully follow the ESD
procedures (also described in the “Getting Started” chapter).
2. Remove the two SCSI terminators from the back of the machine, as shown below. Or, if you have already
replaced either or both of the terminators with cables to external peripheral devices, remove those cables.,
LAN cable, USB cables, and any other cables from the back of the workstation.

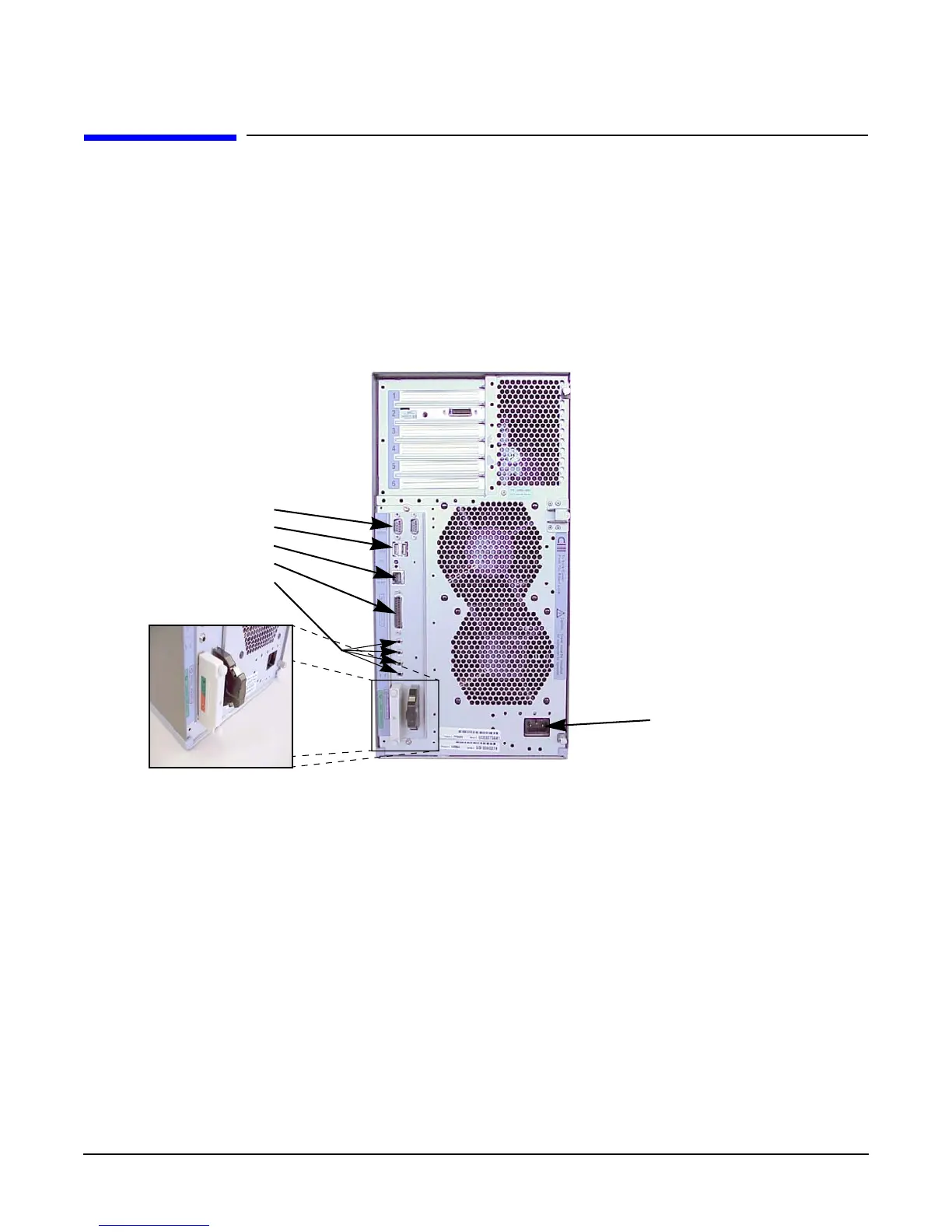

Figure 2-5 Removing all Terminators and Cables
SCSI Terminators
Audio In/Out Ports
Parallel Port
LAN Port
USB Ports
Serial Ports
Power Plug
12
Chapter 2
To Next Page
