Upgrading Your System
Removing the PCI I/O Card(s)
Removing the PCI I/O Card(s)
CAUTION When removing a PCI I/O card, do not rock it from side to side, or the card may be damaged.
After removing each I/O card, locate the label which indicates the PCI installation sequence,
and place it on the conductive sheeting until needed for re-assembly.
1. Looking down on the PCI cards, remove the bulkhead screw for each PCI card.

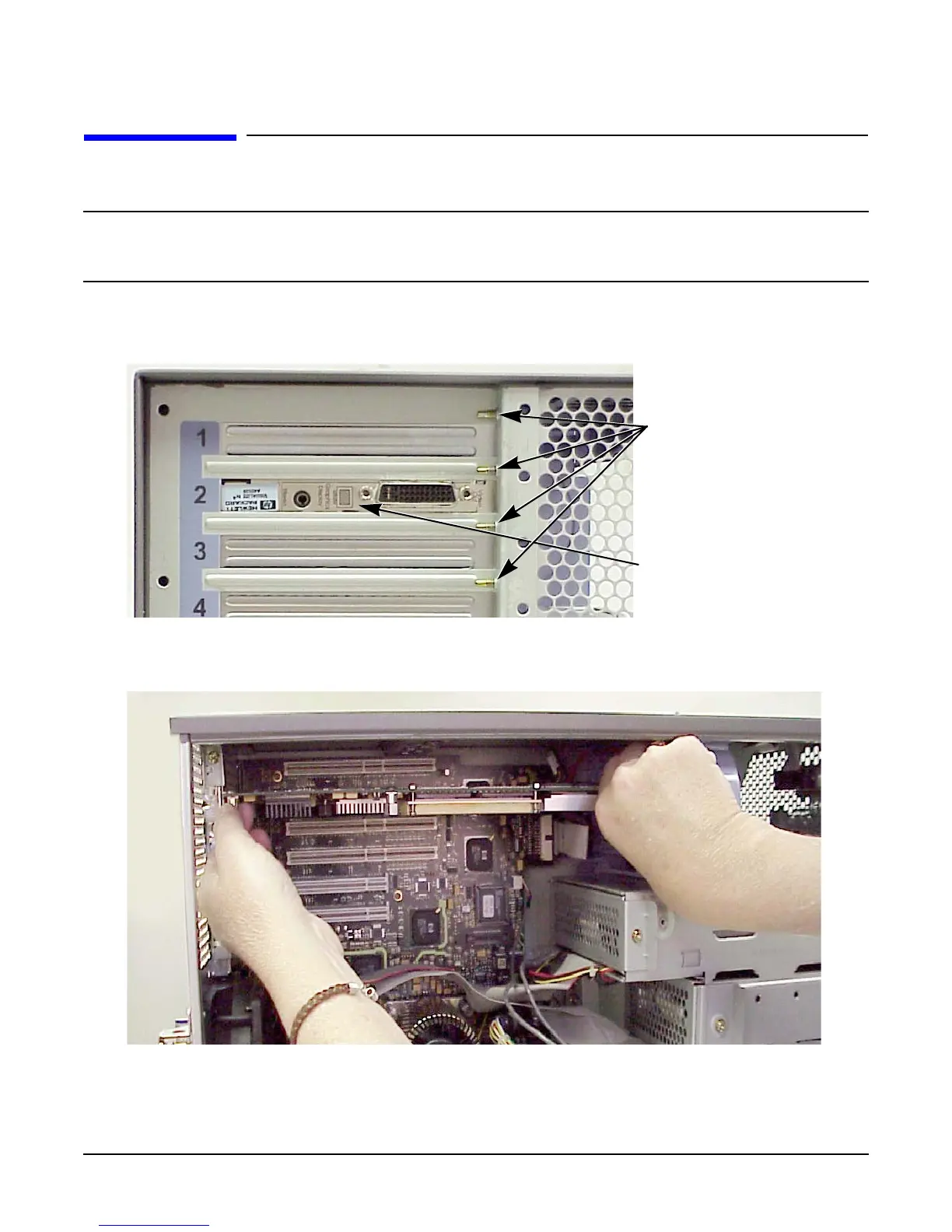

Figure 2-13 Removing the PCI Cards’ Bulkhead Screws
Bulkhead screws
(remove from inside)
Typical PCI Card
2. Grasp the edges of each PCI card and pull it up and out of the workstation.
Figure 2-14 Removing the PCI Cards
3. Repeat Steps 1 and 2 above to remove all the PCI I/O cards.
Chapter 2
19
