Appendix D
Remove/Replace Flexible Disk Drives
Removing the Flexible Disk Drive
100
6. Slide the flexible disk drive out of the flexible disk drive bay and disconnect the flexible disk
drive power and SCSI cables. See
Figure D-5. Note that these cables are not keyed, so when you
replace the SCSI cable, you will need to line up the red line on the SCSI cable with the right side
of the flexible disk drive’s SCSI connector, as viewed in
Figure D-5.

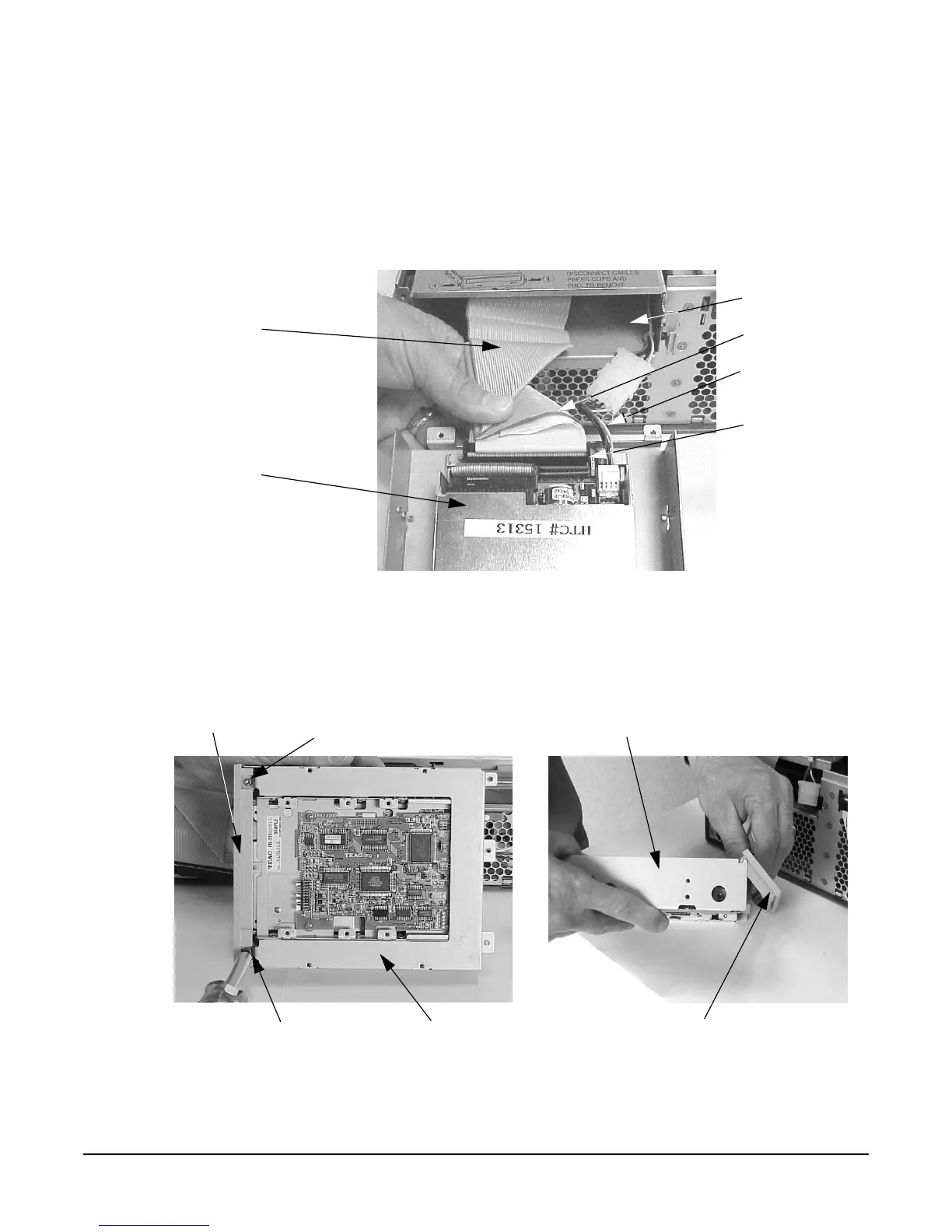

Figure D-5 Disconnecting the Flexible Disk Drive’s Cables
7. Unscrew the flexible disk drive’s bezel mounting screws and remove the bezel by rotating it
outward from the flexible disk drive’s bracket. See
Figure D-6.
Figure D-6 Unscrewing the Flexible Disk Drive’s Bezel Mounting Screws
Flexible Disk
Power Cable
SCSI Cable
Flexible Disk
Drive Bay
Drive
Red Line
Pin 1 of the
Connector
Bezel
Mounting Screw
Mounting Screw Flexible Disk Drive’s
Bottom Side
Flexible Disk Drive’s
Bracket
Bezel
To Next Page
