Appendix D
Remove/Replace Flexible Disk Drives
Removing the Flexible Disk Drive
99
4. Unscrew the four mounting screws that hold the flexible disk drive in the flexible disk drive bay.
See
Figure D-3.

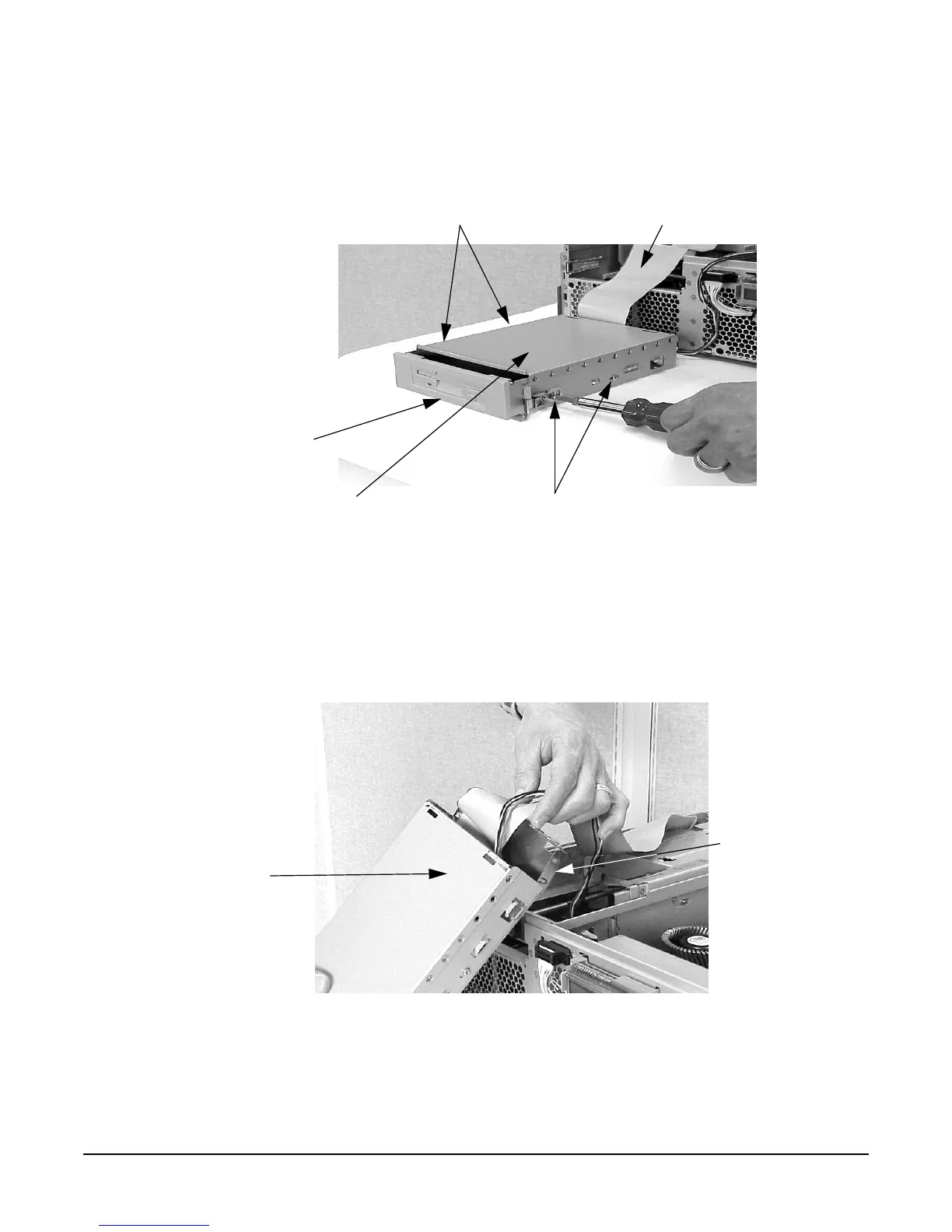

Figure D-3 Removing the Flexible Disk Drive Bay’s Mounting Screws
5. Take the back cover off the flexible disk drive bay by lifting up on the raised portion of the back
cover. This will cause the retainer snaps to be remove from their slots on the flexible disk drive
bay. See
Figure D-4. Also, note the manner in which the audio, power and control cables were
neatly fed through the raised opening in the flexible disk drive bay’s back cover.
Figure D-4 Removing the Flexible Disk Drive Bay’s Back Cover
Mounting Screws
Mounting
Screws
SCSI Cable
Flexible Disk Drive Bay
Flexible Disk
Drive
Flexible Disk
Drive Bay’s
Back Cover
Flexible Disk
Drive Bay
To Next Page
