HP B2600 Workstation Disassembly November 2005
Page 13
13.

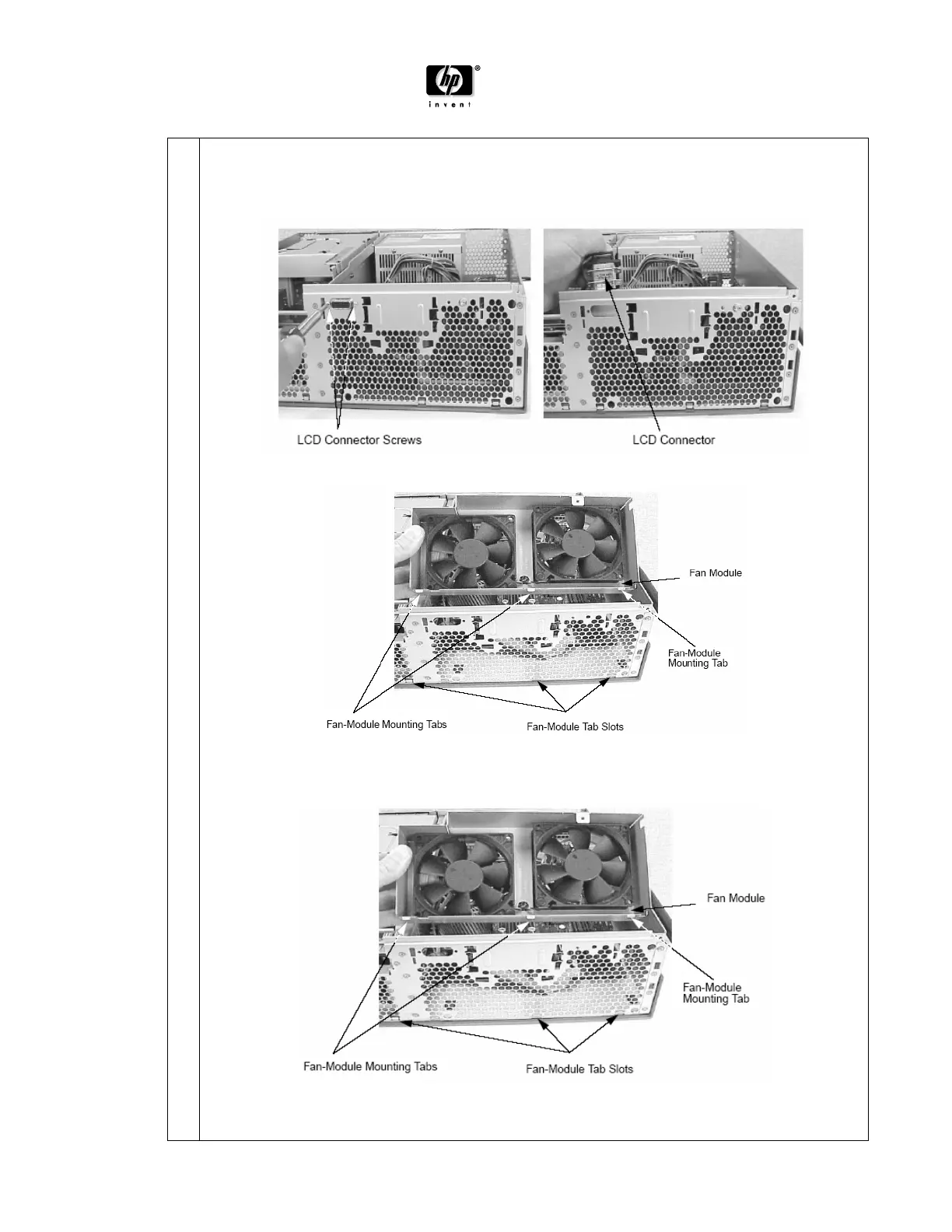

Remove the system fan module.
Unscrew the two LCD connector screws and remove the LCD connector from its opening in
the chassis.
Remove the fan-module mounting screw.
Remove the fan module from the workstation by tilting it back away from the workstation
chassis and lifting it out of the three fan-module slots on the front part of the workstation’s
chassis.
