HP B2600 Workstation Disassembly November 2005
Page 12

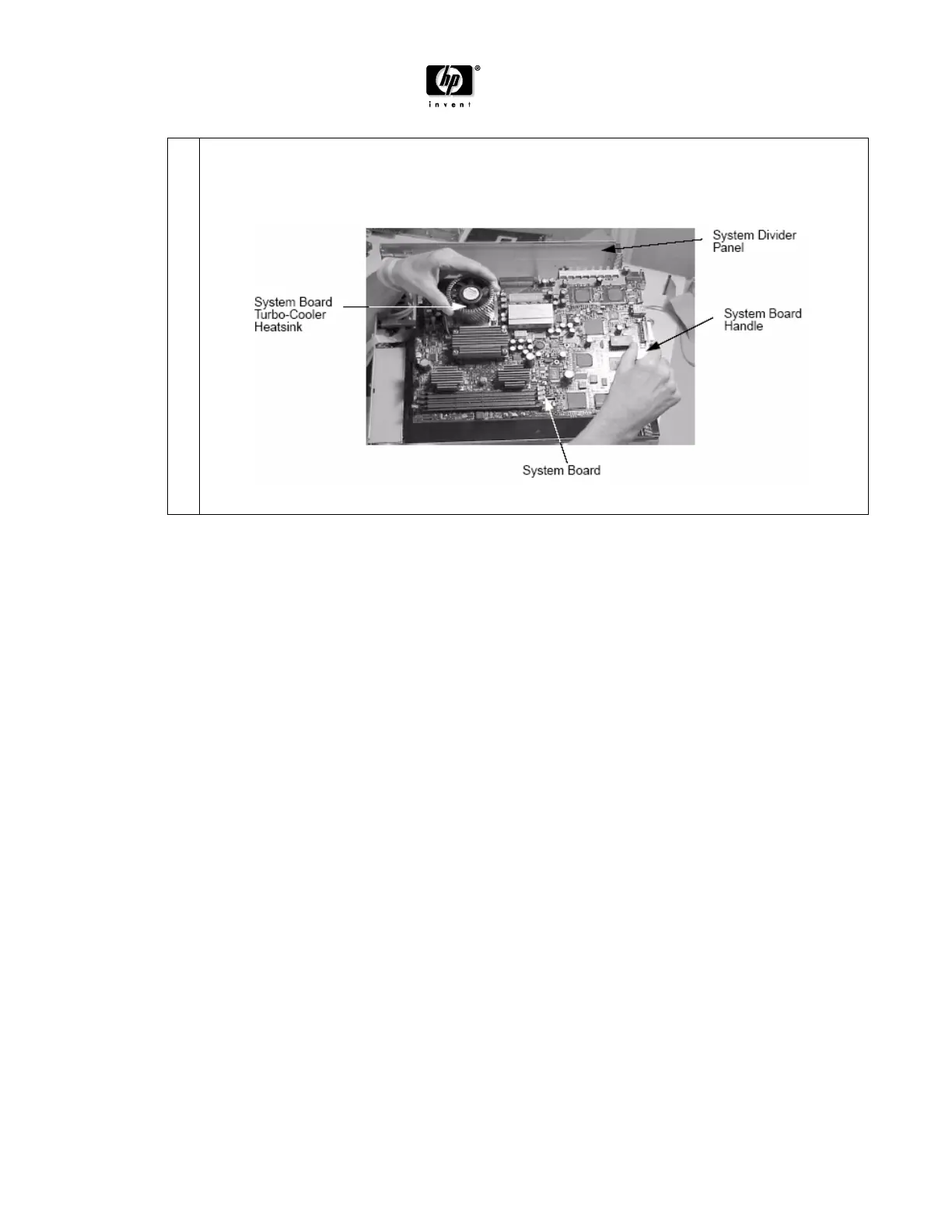

Use the system board’s turbo-cooler heatsink and handle to lift it out of the workstation. The
system board must be angled when removing it from the workstation such that the DIMM edge
of the system board is two to three inches higher than the turbo-cooler heatsink edge.
