HP B2600 Workstation Disassembly November 2005
Page 11
12.

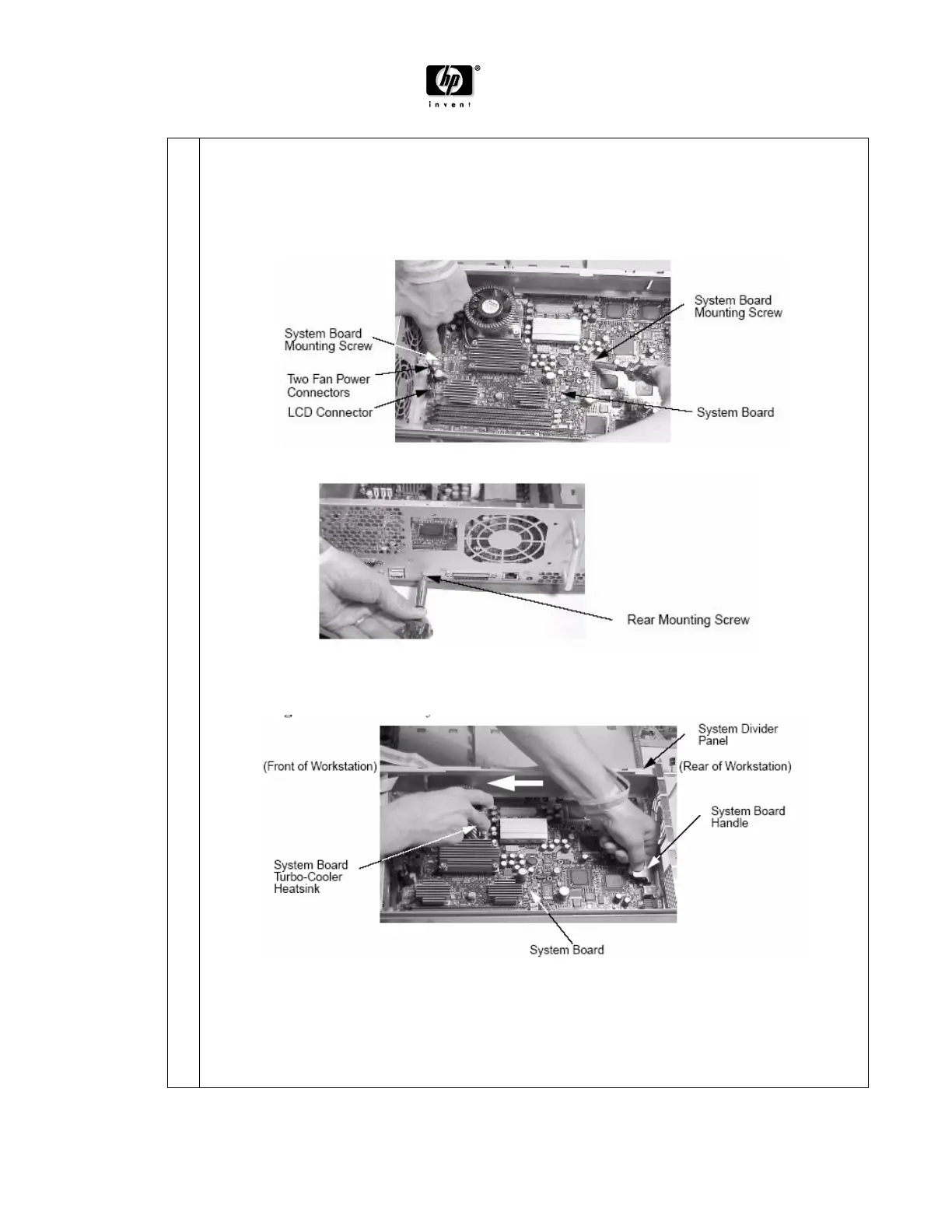

Remove the system board.
Disconnect the two fan power connectors from the system board by pressing in on the latch
retainers and pulling outward on the connector. Disconnect the LCD connector by pressing
down on its latch retainers and pulling outward on the connector. Next, unscrew the two
internal system board mounting screws.
Unscrew the rear mounting screw for the system board.
Grasp the system board by the microprocessor’s turbo-cooler heatsink and the handle
on the back edge of the system board. Slide the system board toward the front of the
workstation. This step unlocks the system board from its standoffs
.
.
To Next Page
