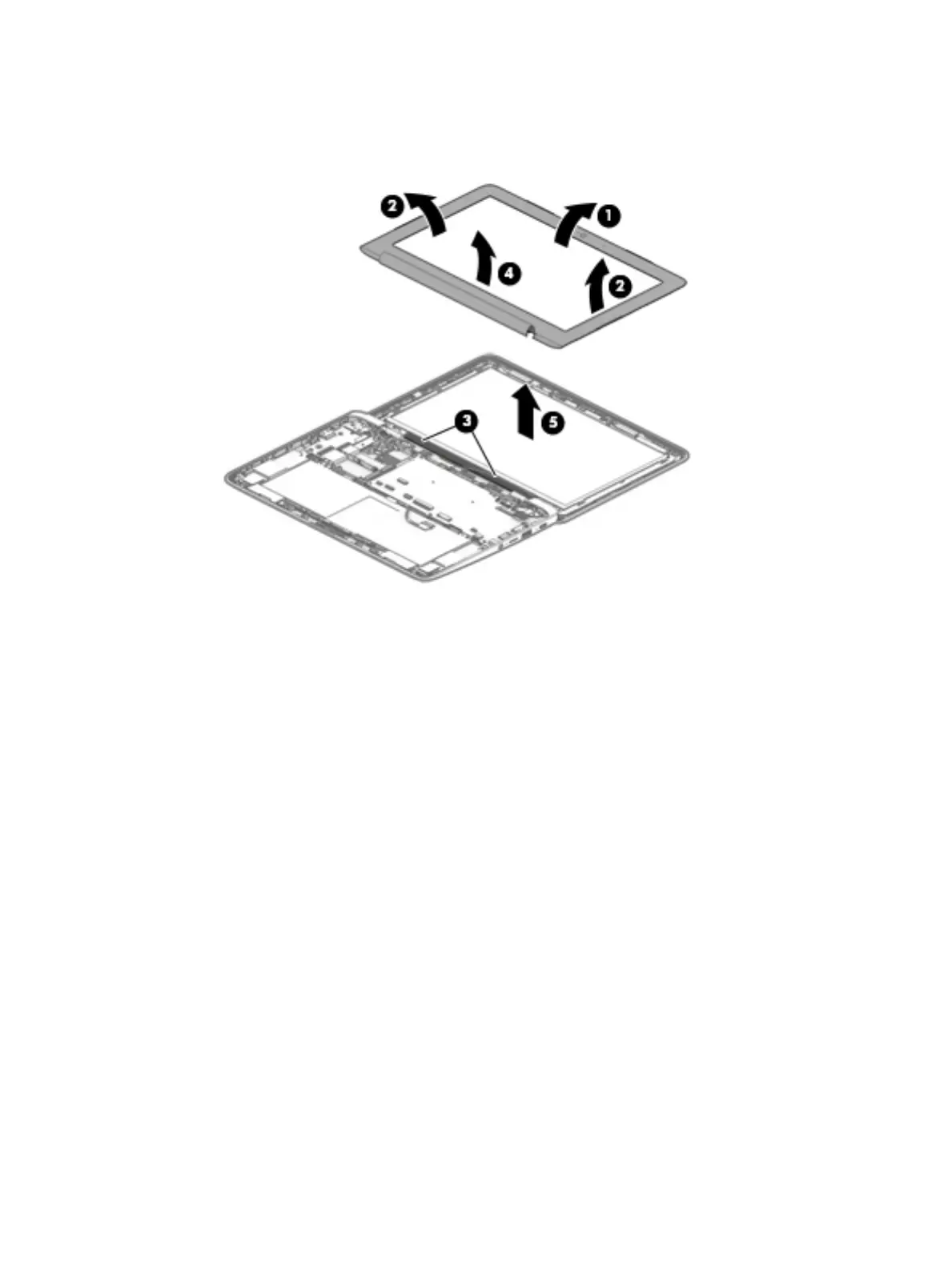

d. Remove the display bezel (5).
The display bezel is available using spare part number L14912-001.
9. If it is necessary to replace the webcam/microphone module:
a. Remove the display bezel.
b. Detach the webcam/microphone module (1) from the display back cover. (The webcam/microphone
module is attached to the display back cover with double-sided adhesive.)
42 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
